Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLW5050CEERR47M01FIXED IND 470NH 32A 2 MOHM SMD |
1,989 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 32 A | 55A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEERR68M01FIXED IND 680NH 28A 2.5 MOHM SMD |
1,943 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 nH | ±20% | 28 A | 49A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
PCMB103T-R36MSFIXED IND 360NH 23A 1.6 MOHM SMD |
2,748 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 360 nH | ±20% | 23 A | 28A | Unshielded | 1.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
|
PCMB103T-R47MSFIXED IND 470NH 23A 2.5 MOHM SMD |
2,910 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 23 A | 26A | Unshielded | 2.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
SRP1250-1R5MFIXED IND 1.5UH 23A 4.1 MOHM SMD |
1,310 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1.5 µH | ±20% | 23 A | 48A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
SRP1250-R56MFIXED IND 560NH 36A 1.5 MOHM SMD |
4,817 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 560 nH | ±20% | 36 A | 55A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
SRP1245A-R22MFIXED IND 220NH 52A 0.7 MOHM SMD |
3,159 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±20% | 52 A | 110A | Shielded | 0.7mOhm Max | 10 @ 100kHz | 120MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP1245A-R36MFIXED IND 360NH 42A 0.95MOHM SMD |
4,342 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 360 nH | ±20% | 42 A | 75A | Shielded | 0.95mOhm Max | 15 @ 100kHz | 80MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP1245A-R39MFIXED IND 390NH 42A 0.95MOHM SMD |
3,234 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 390 nH | ±20% | 42 A | 70A | Shielded | 0.95mOhm Max | 15 @ 100kHz | 78MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP1245A-R82MFIXED IND 820NH 31A 2.1 MOHM SMD |
2,145 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 820 nH | ±20% | 31 A | 52A | Shielded | 2.1mOhm Max | 20 @ 100kHz | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
TL1012V2-R120-RTRANS IND, 120NH, 94A, 4 PADS |
4,025 |
|
Datasheet |
TL1012V2 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±10% | 75 A | 73A | Unshielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
TL1012V2-R100-RTRANS IND, 100NH, 113A, 4 PADS |
4,689 |
|
Datasheet |
TL1012V2 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 nH | ±10% | 75 A | 88A | Unshielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
LCRNJ12555GL470MNFIXED IND 47UH 2.7A 66.12MOHM SM |
2,370 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | 2.23A | Shielded | 61.8mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LCRNJ12555GL6R0NNFIXED IND 6UH 5.6A 16.8MOHM SMD |
4,785 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6 µH | ±30% | 5.6 A | 5.01A | Shielded | 14mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LCRNJ12555GL680MNFIXED IND 68UH 2.14A 99.9MOHM SM |
3,815 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 2.14 A | 1.81A | Shielded | 83.2mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LCRNJ12555GL471MNFIXED IND 470UH 800MA 624MOHM SM |
3,719 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 800 mA | 680mA | Shielded | 520mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LCRNJ12555GL151MNFIXED IND 150UH 1.3A 258MOHM SMD |
2,153 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.3 A | 1.1A | Shielded | 215mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LCRNJ12555GL102MNFIXED IND 1MH 460MA 1.73 OHM SMD |
2,607 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±20% | 460 mA | 410mA | Shielded | 1.44Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|

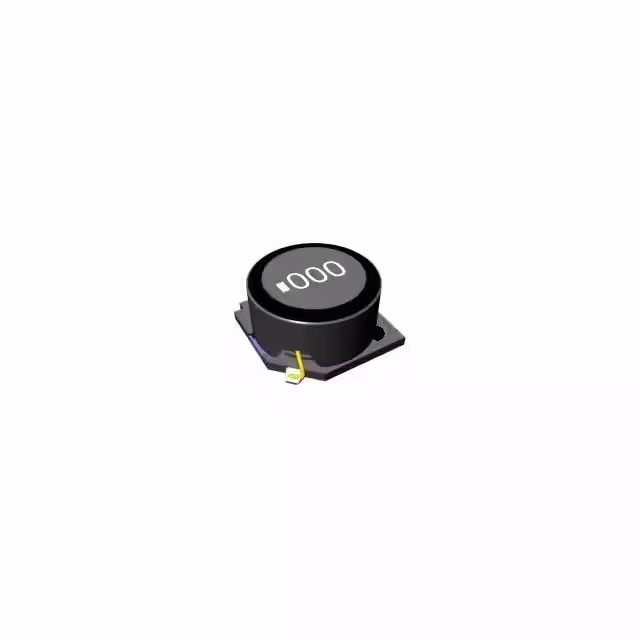

LCRNJ12555GL220MNFIXED IND 22UH 3.81A 35.64 MOHM |
1,579 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.81 A | 3.2A | Shielded | 29.7mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LCRNJ12555GL330MNFIXED IND 33UH 3.16A 49.8MOHM SM |
3,071 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 3.16 A | 2.64A | Shielded | 41.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
