Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDSD0630-H-6R8M=P3FIXED IND 6.8UH 3.7A 61MOHM SMD |
1,259 |
|
Datasheet |
FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 3.7 A | 5.9A | Shielded | 61mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
FDSD0630-H-8R2M=P3FIXED IND 8.2UH 3.4A 70MOHM SMD |
3,776 |
|
Datasheet |
FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 8.2 µH | ±20% | 3.4 A | 5.5A | Shielded | 70mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

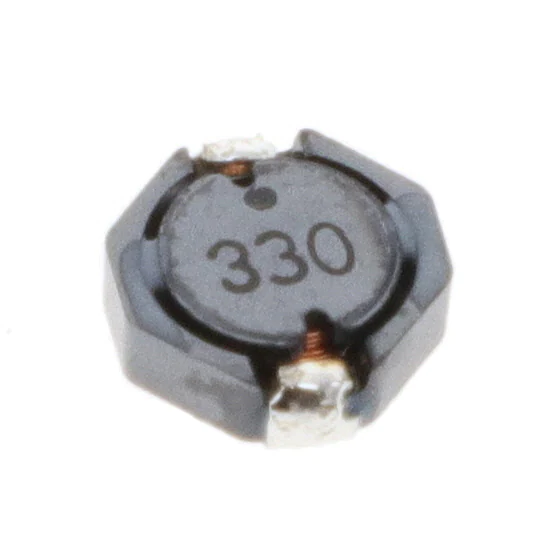

#A914BYW-330M=P3FIXED IND 33UH 480MA 455MOHM SMD |
2,107 |
|
Datasheet |
D52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 480 mA | 440mA | Shielded | 455mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
BPCF00070732151M00INDUCTOR POWER |
2,205 |
|
Datasheet |
BPCF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 370 mA | 370mA | Shielded | 650mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.138" (3.50mm) |
|
|
BPCF00070745150M00INDUCTOR POWER |
3,706 |
|
Datasheet |
BPCF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.53 A | 1.1A | Shielded | 52mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
IHLW5050CEERR82M01FIXED IND 820NH 25A 3 MOHM SMD |
2,914 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 nH | ±20% | 25 A | 44A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER100M01FIXED IND 10UH 7A 34 MOHM SMD |
2,452 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 7 A | 14A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER1R0M01FIXED IND 1UH 24A 3.5 MOHM SMD |
2,520 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 24 A | 40A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER1R5M01FIXED IND 1.5UH 19A 5.5 MOHM SMD |
4,245 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 19 A | 35A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER1R8M01FIXED IND 1.8UH 16.5A 7 MOHM SMD |
4,665 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 16.5 A | 30A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER2R2M01FIXED IND 2.2UH 16A 8 MOHM SMD |
1,590 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 16 A | 29A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER3R3M01FIXED IND 3.3UH 12A 12 MOHM SMD |
4,954 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 12 A | 27A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER4R7M01FIXED IND 4.7UH 10A 15 MOHM SMD |
3,001 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10 A | 24A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER5R6M01FIXED IND 5.6UH 9.5A 19 MOHM SMD |
3,145 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 9.5 A | 19A | Shielded | 19mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER6R8M01FIXED IND 6.8UH 9A 22 MOHM SMD |
1,724 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 9 A | 18A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEER8R2M01FIXED IND 8.2UH 8.5A 28 MOHM SMD |
2,182 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 8.5 A | 16A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEERR10M01FIXED IND 100NH 43A 0.96MOHM SMD |
4,740 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | 43 A | 84A | Shielded | 0.96mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEERR15M01FIXED IND 150NH 41A 1.2 MOHM SMD |
4,156 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±20% | 41 A | 75A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEERR22M01FIXED IND 220NH 38.5A 1.3MOHM SM |
1,560 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±20% | 38.5 A | 65A | Shielded | 1.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
|
|
IHLW5050CEERR33M01FIXED IND 330NH 36.5A 1.5MOHM SM |
2,334 |
|
Datasheet |
IHLW-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±20% | 36.5 A | 62A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.138" (3.50mm) |
