Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCRNJ12575GL3R9NNFIXED IND 3.9UH 7.38A 11.9 MOHM |
4,590 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.9 µH | ±30% | 7.38 A | 12.1A | Shielded | 9.9mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|

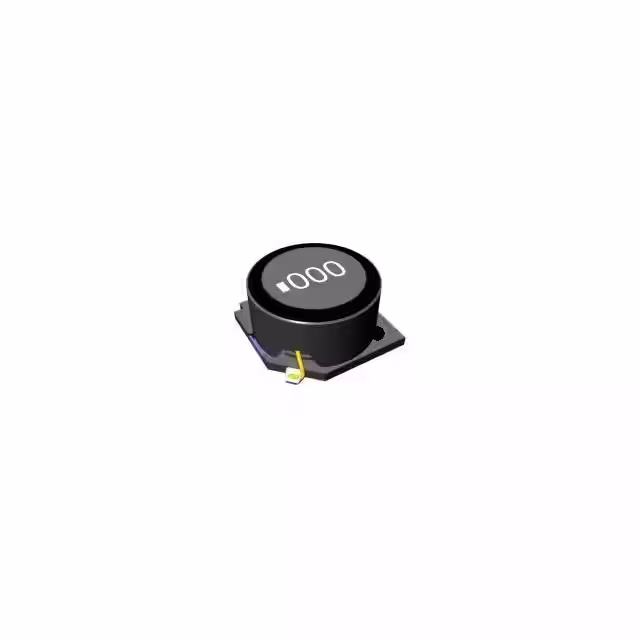

LCRNJ12575GL2R7NNFIXED IND 2.7UH 7.69A 10.2 MOHM |
3,274 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.7 µH | ±30% | 7.69 A | 13.91A | Shielded | 8.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
IHLP3232DZEC1R0M5AINDUCT WW SNGL COIL MISC |
1,600 |
|
Datasheet |
IHLP-3232DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 19 A | 16.2A | Shielded | 4.9mOhm Max | - | 45MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
PM105S-330MFIXED IND 33UH 1.39A 120MOHM SMD |
1,177 |
|
Datasheet |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.39 A | - | Shielded | 120mOhm Max | - | 16MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
PM105S-470MFIXED IND 47UH 1.17A 180MOHM SMD |
4,089 |
|
Datasheet |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.17 A | - | Shielded | 180mOhm Max | - | 14MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
CDRH8D38/ANP-120MCFIXED IND 12UH 1.57A 55 MOHM SMD |
3,915 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±20% | 1.57 A | - | Shielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-121MCFIXED IND 120UH 500MA 530MOHM SM |
2,308 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±20% | 500 mA | - | Shielded | 530mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-180MCFIXED IND 18UH 1.33A 83.8MOHM SM |
2,793 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±20% | 1.33 A | - | Shielded | 83.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-270MCFIXED IND 27UH 1.11A 125MOHM SMD |
2,044 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±20% | 1.11 A | - | Shielded | 125mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-330MCFIXED IND 33UH 980MA 141.3 MOHM |
4,843 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 980 mA | - | Shielded | 141.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-390MCFIXED IND 39UH 890MA 171.3 MOHM |
1,080 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±20% | 890 mA | - | Shielded | 171.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-560MCFIXED IND 56UH 680MA 290MOHM SMD |
1,875 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±20% | 680 mA | - | Shielded | 290mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-680MCFIXED IND 68UH 650MA 318.8 MOHM |
1,133 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 650 mA | - | Shielded | 318.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-820MCFIXED IND 82UH 600MA 363.8 MOHM |
3,043 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±20% | 600 mA | - | Shielded | 363.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MDH10060C-4R7NB=P3FIXED IND 4.7UH 4.8A 11 MOHM SMD |
2,815 |
|
Datasheet |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 4.8 A | 7.1A | Unshielded | 14.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-680MB=P3FIXED IND 68UH 1.5A 99 MOHM SMD |
3,946 |
|
Datasheet |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 1.5 A | 1.8A | Unshielded | 128.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-331MB=P3FIXED IND 330UH 0.68A 490 MOHM S |
2,286 |
|
Datasheet |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 680 mA | 840mA | Unshielded | 637mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-471MB=P3FIXED IND 470UH 0.56A 790 MOHM S |
2,593 |
|
Datasheet |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 560 mA | 700mA | Unshielded | 1.027Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-151MB=P3FIXED IND 150UH 1A 240 MOHM SMD |
1,106 |
|
Datasheet |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 1 A | 1.2A | Unshielded | 312mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-100MB=P3FIXED IND 10UH 3.4A 19 MOHM SMD |
4,751 |
|
Datasheet |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 4.8A | Unshielded | 24.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
