Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCRNJ12565GL150MNFIXED IND 15UH 4.33A 28.5MOHM SM |
1,983 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 4.33 A | 5.6A | Shielded | 23.7mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LCRNJ12565GL680MNFIXED IND 68UH 2.3A 93 MOHM SMD |
2,795 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 2.7A | Shielded | 77.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LCRNJ12565GL330MNFIXED IND 33UH 3.22A 46.8MOHM SM |
3,028 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 3.22 A | 3.8A | Shielded | 39mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LCRNJ12565GL4R2NNFIXED IND 4.2UH 5.91A 15.2 MOHM |
1,755 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.2 µH | ±30% | 5.91 A | 9.4A | Shielded | 12.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
SLPPI06-18-2R2M-TRHI POWER IND 2.20UH 29.7MOHM 11 |
2,691 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 5 A | 10A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.071" (1.80mm) |
|
|
SLPPI06-15-3R3M-TRHI POWER IND 3.30UH 54.0 MOHM |
3,191 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 4.2 A | 6.4A | Shielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.059" (1.50mm) |
|
|
SLPPI06-15-2R2M-TRHI POWER IND 2.2UH 36.0 MOHM 7. |
2,881 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 5.2 A | 7A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.059" (1.50mm) |
|
|
SLPPI06-15-1R5M-TRHI POWER IND 1.50UH 23.9 MOHM 2 |
3,835 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1.5 µH | ±20% | 6 A | 9.6A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.059" (1.50mm) |
|
|
SLPPI06-18-100M-TRHI POWER IND 10.0UH 125.0 MOHM |
1,531 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 10 µH | ±20% | 2.4 A | 4A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.071" (1.80mm) |
|
|
SLPPI06-18-3R3M-TRHI POWER IND 3.30UH 46.6 MOHM 8 |
3,149 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 4 A | 7A | Shielded | 56mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.071" (1.80mm) |
|
LCRNJ12575GL5R6NNFIXED IND 5.6UH 6.36A 14MOHM SMD |
2,154 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±30% | 6.36 A | 10.2A | Shielded | 11.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LCRNJ12575GL150MNFIXED IND 15UH 5.22A 22.1MOHM SM |
4,322 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 5.22 A | 6.3A | Shielded | 18.4mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|

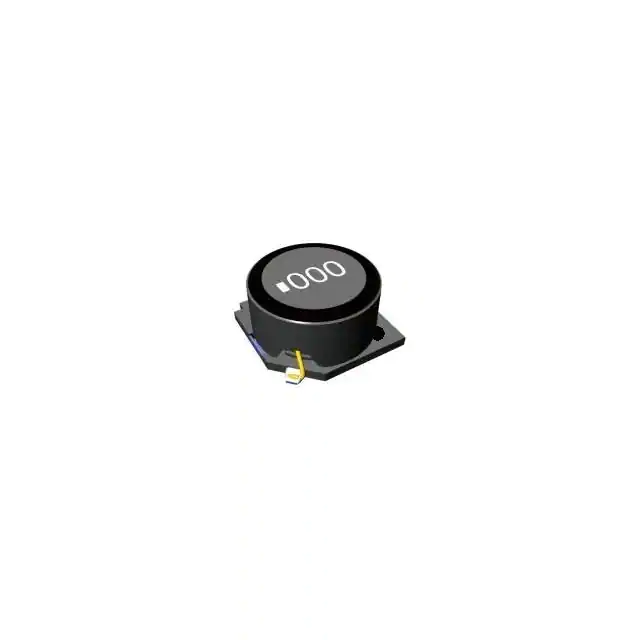

LCRNJ12575GL101MNFIXED IND 100UH 2.01A 132MOHM SM |
2,150 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 2.01 A | 2.5A | Shielded | 110mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LCRNJ12575GL1R2NNFIXED IND 1.2UH 9.15A 7MOHM SMD |
4,784 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 µH | ±30% | 9.15 A | 18.08A | Shielded | 5.8mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LCRNJ12575GL151MNFIXED IND 150UH 1.51A 194MOHM SM |
4,469 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.51 A | 1.9A | Shielded | 161mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LCRNJ12575GL102MNFIXED IND 1MH 530MA 1.404OHM SMD |
2,993 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±20% | 530 mA | 720mA | Shielded | 1.17Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LCRNJ12575GL330MNFIXED IND 33UH 3.48A 46.8MOHM SM |
4,559 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 3.48 A | 4.3A | Shielded | 39mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LCRNJ12575GL680MNFIXED IND 68UH 2.1A 108MOHM SMD |
4,815 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 2.1 A | 2.78A | Shielded | 90mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LCRNJ12575GL6R8NNFIXED IND 6.8UH 5.84A 15.8 MOHM |
1,401 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 5.84 A | 9.5A | Shielded | 13.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LCRNJ12575GL221MNFIXED IND 220UH 1.35A 294MOHM SM |
3,558 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 1.1 A | 1.6A | Shielded | 300mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
