Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-6SH471MFIXED IND 470UH 200MA 3.2OHM SMD |
2,846 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 µH | ±20% | 200 mA | - | Shielded | 3.2Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|

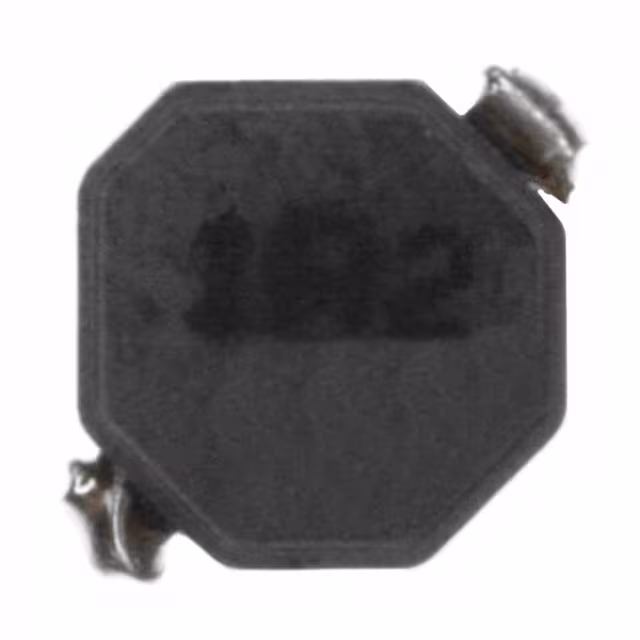

ELL-5PS1R2NFIXED IND 1.2UH 2.5A 22 MOHM SMD |
3,967 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.2 µH | ±30% | 2.5 A | 2.5A | Shielded | 22mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELL-5PS560MFIXED IND 56UH 500MA 680MOHM SMD |
2,301 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±20% | 500 mA | 430mA | Shielded | 680mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELL-5PS820MFIXED IND 82UH 360MA 1.16OHM SMD |
2,602 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±20% | 360 mA | 340mA | Shielded | 1.16Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

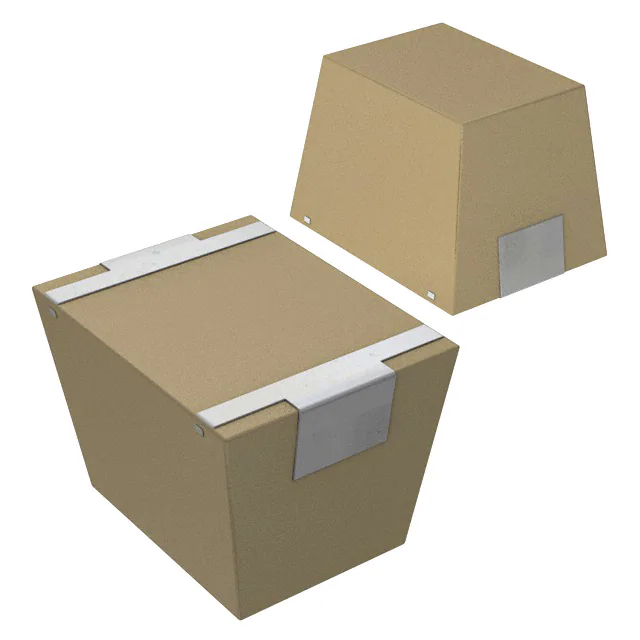

IMC1210ER100JFIXED IND 10UH 189MA 2.1 OHM SMD |
1,107 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±5% | 189 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 33MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
IMC1210ER1R8JFIXED IND 1.8UH 350MA 900MOHM SM |
4,731 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±5% | 350 mA | - | Unshielded | 900mOhm Max | 30 @ 7.96MHz | 80MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ER2R7KFIXED IND 2.7UH 290MA 1.1OHM SMD |
3,333 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.7 µH | ±10% | 290 mA | - | Unshielded | 1.1Ohm Max | 30 @ 7.96MHz | 70MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ER3R3JFIXED IND 3.3UH 260MA 1.2OHM SMD |
1,472 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±5% | 260 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ER6R8KFIXED IND 6.8UH 204MA 1.8OHM SMD |
4,361 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±10% | 204 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.96MHz | 40MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ERR10KFIXED IND 100NH 450MA 440MOHM SM |
4,389 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 100 nH | ±10% | 450 mA | - | Unshielded | 440mOhm Max | 30 @ 50MHz | 700MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ERR10MFIXED IND 100NH 450MA 440MOHM SM |
3,865 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 100 nH | ±20% | 450 mA | - | Unshielded | 440mOhm Max | 30 @ 50MHz | 700MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ERR15KFIXED IND 150NH 548MA 250MOHM SM |
1,157 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 150 nH | ±10% | 548 mA | - | Unshielded | 250mOhm Max | 30 @ 25.2MHz | 450MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ERR22KFIXED IND 220NH 484MA 320MOHM SM |
1,189 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±10% | 484 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 350MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ERR22MFIXED IND 220NH 484MA 320MOHM SM |
1,476 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 484 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 350MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ERR27KFIXED IND 270NH 456MA 360MOHM SM |
2,812 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 270 nH | ±10% | 456 mA | - | Unshielded | 360mOhm Max | 30 @ 25.2MHz | 320MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ERR33KFIXED IND 330NH 453MA 400MOHM SM |
4,635 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±10% | 453 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 300MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ERR39KFIXED IND 390NH 450MA 450MOHM SM |
1,740 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 390 nH | ±10% | 450 mA | - | Unshielded | 450mOhm Max | 30 @ 25.2MHz | 250MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ERR47KFIXED IND 470NH 450MA 500MOHM SM |
1,796 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 220MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
IMC1812ES1R0KFIXED IND 1UH 450MA 500 MOHM SMD |
2,759 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 100MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
NS10155T2R2NNAFIXED IND 2.2UH 7.61A 8.4MOHM SM |
3,407 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.61 A | 10A | Shielded | 8.4mOhm Max | - | 55.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
