Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NS10155T3R3NNAFIXED IND 3.3UH 6.49A 12MOHM SMD |
3,760 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.49 A | 8.5A | Shielded | 12mOhm Max | - | 40.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
ASPI-4020HI-R10M-TFIXED IND 100NH 12A 4 MOHM SMD |
3,581 |
|
Datasheet |
ASPI-4020HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 100 nH | ±20% | 12 A | 22A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ASPI-4020HI-R22M-TFIXED IND 222NH 9A 6.6 MOHM SMD |
1,623 |
|
Datasheet |
ASPI-4020HI | Nonstandard | Cut Tape (CT) | Active | Molded | Iron Alloy | 222 nH | ±20% | 9 A | 12.5A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ASPI-4020HI-R47M-TFIXED IND 470NH 7A 14 MOHM SMD |
4,373 |
|
Datasheet |
ASPI-4020HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±20% | 7 A | 9.5A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ASPI-4020HI-R56M-TFIXED IND 560NH 6.5A 16 MOHM SMD |
3,995 |
|
Datasheet |
ASPI-4020HI | Nonstandard | Cut Tape (CT) | Active | Molded | Iron Alloy | 560 nH | ±20% | 6.5 A | 8.5A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ASPI-4020HI-1R5M-TFIXED IND 1.5UH 4A 46 MOHM SMD |
1,856 |
|
Datasheet |
ASPI-4020HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.5 µH | ±20% | 4 A | 6A | Shielded | 46mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.083" (2.10mm) |
.jpg)
|

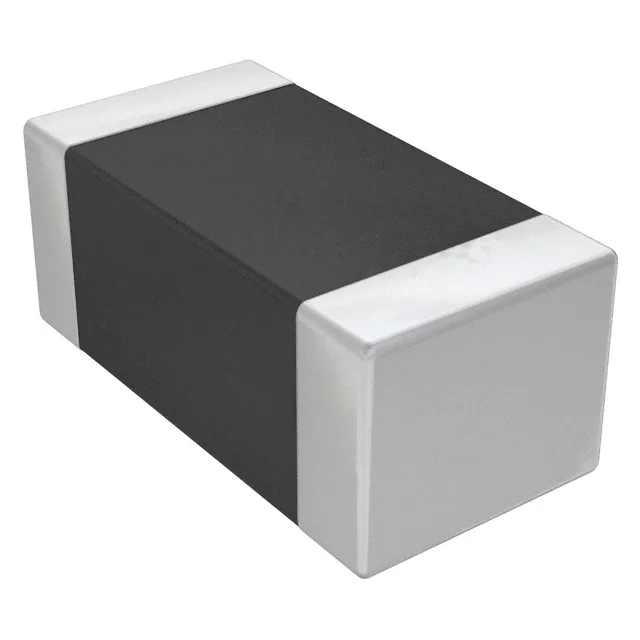

AIML-1206HC-3R3M-TFIXED IND 3.3UH 1.2A 200MOHM SMD |
4,294 |
|
Datasheet |
AIML-1206HC | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 1.2 A | 200mA | Shielded | 200mOhm | - | 49MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
FDSD0630-H-100M=P3FIXED IND 10UH 3.2A 74 MOHM SMD |
2,906 |
|
Datasheet |
FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 10 µH | ±20% | 3.2 A | 5.4A | Shielded | 74mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
FDSD0630-H-1R0M=P3FIXED IND 1UH 9.4A 11 MOHM SMD |
4,649 |
|
Datasheet |
FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 9.4 A | 15A | Shielded | 11mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
FDSD0630-H-3R3M=P3FIXED IND 3.3UH 5.6A 28 MOHM SMD |
1,528 |
|
Datasheet |
FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 5.6 A | 8A | Shielded | 28mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
FDSD0630-H-4R7M=P3FIXED IND 4.7UH 4.7A 40 MOHM SMD |
4,692 |
|
Datasheet |
FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 4.7 A | 7.6A | Shielded | 40mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
26100CFIXED IND 10UH 2.6A 60 MOHM SMD |
1,876 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | - | 2.6 A | - | Unshielded | 60mOhm Max | - | 24.8MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
26120CFIXED IND 12UH 2.42A 68MOHM SMD |
2,305 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | - | 2.42 A | - | Unshielded | 68mOhm Max | - | 24MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
26150CFIXED IND 15UH 2.27A 90MOHM SMD |
4,897 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | - | 2.27 A | - | Unshielded | 90mOhm Max | - | 20.2MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
26220CFIXED IND 22UH 1.95A 100MOHM SMD |
4,569 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | - | 1.95 A | - | Unshielded | 100mOhm Max | - | 16.9MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
26330CFIXED IND 33UH 1.5A 120MOHM SMD |
3,156 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | - | 1.5 A | - | Unshielded | 120mOhm Max | - | 12.8MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
26331CFIXED IND 330UH 520MA 1.15OHM SM |
1,075 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | - | 520 mA | - | Unshielded | 1.15Ohm Max | - | 3.14MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
263R3CFIXED IND 3.3UH 4.4A 35MOHM SMD |
2,907 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | - | 4.4 A | - | Unshielded | 35mOhm Max | - | 53MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
26470CFIXED IND 47UH 1.28A 170MOHM SMD |
2,312 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | - | 1.28 A | - | Unshielded | 170mOhm Max | - | 10.2MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
266R8CFIXED IND 6.8UH 3.1A 54MOHM SMD |
1,839 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | - | 3.1 A | - | Unshielded | 54mOhm Max | - | 31MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
