Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPL-AT2010-1R5FIXED IND 1.5UH 2.4A 97 MOHM SMD |
1,748 |
|
Datasheet |
MPL-AT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | - | 2.4 A | 3.2A | Unshielded | 97mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
TMPC 0605HV-4R7MG-D4.7 UH SHIELDED MOLDED INDUCTOR |
1,600 |
|
Datasheet |
TMPC0605HV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 6.5 A | 10A | Unshielded | 30.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
TMPC 0605HV-220MG-D22 UH SHIELDED MOLDED INDUCTOR S |
1,600 |
|
Datasheet |
TMPC0605HV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 22 µH | ±20% | 2.5 A | 5.5A | Unshielded | 170mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
APO322523TV-150M15 UH FIXED IND 400MA 400MOHM |
1,500 |
|
- |
APO322523TV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 825 mA | 400mA | Unshielded | 400mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
.JPG)
|
B82442H1273K000FIXED IND 27UH 620MA 420MOHM SMD |
1,394 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 620 mA | - | Unshielded | 420mOhm Max | 10 @ 2.52MHz | 11.5MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
PA3790.221HLTFIXED IND 220NH 55A 0.29MOHM SMD |
9,600 |
|
Datasheet |
PA3790.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 55 A | 63A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.315" W (12.50mm x 8.00mm) | 0.315" (8.00mm) |
|
|
TMPC 0515HPV-100MG-D10 UH SHIELDED MOLDED INDUCTOR S |
3,497 |
|
Datasheet |
TMPC0515HPV | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 2 A | 2.3A | Unshielded | 235mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.059" (1.50mm) |
|
ETQ-P1W3R3WFPFIXED IND 3.3UH 2.8A 103MOHM SMD |
2,977 |
|
Datasheet |
PCC-M0512W (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±20% | 2.8 A | - | Shielded | 103mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
ELL-4FG1R0NAFIXED IND 1UH 1.95A 45 MOHM SMD |
1,387 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 1.95 A | 1.9A | Shielded | 45mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
HLC028R2GTTRFIXED IND 8.2NH 315MA 800MOHM SM |
5,000 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 8.2 nH | ±2% | 315 mA | - | Unshielded | 800mOhm Max | 29 @ 450MHz | 6GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC026R8GTTRFIXED IND 6.8NH 343MA 600MOHM SM |
3,475 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 6.8 nH | ±2% | 343 mA | - | Unshielded | 600mOhm Max | 30 @ 450MHz | 7GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

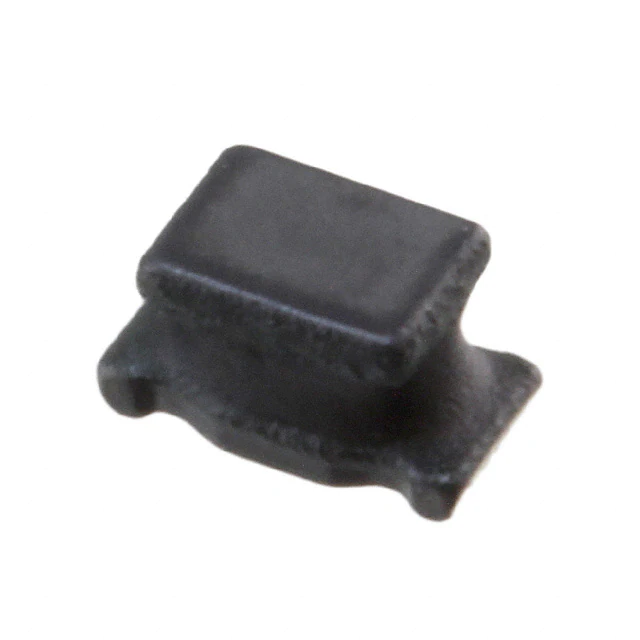

LQH31CN4R7M03LFIXED IND 4.7UH 340MA 845MOHM SM |
2,004 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 340 mA | - | Unshielded | 845mOhm Max | - | 31MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
LD1-2R2-RFIXED IND 2.2UH 2.22A 47MOHM SMD |
4,968 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.22 A | 2.76A | Unshielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
|
LD1-101-RFIXED IND 100UH 360MA 1.72OHM SM |
2,573 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 360 mA | 450mA | Unshielded | 1.72Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
LD1-1R4-RFIXED IND 1.4UH 2.47A 38MOHM SMD |
4,962 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±20% | 2.47 A | 3.41A | Unshielded | 38mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
|
LD1-2R7-RFIXED IND 2.7UH 2.11A 52MOHM SMD |
4,089 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 2.11 A | 2.52A | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
|
3625B331KTFIXED IND 330UH 620MA 950MOHM SM |
4,561 |
|
Datasheet |
3625, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±10% | 620 mA | 700mA | Unshielded | 950mOhm Max | 12 @ 796kHz | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.189" (4.80mm) |
|
VLS252010T-6R8MFIXED IND 6.8UH 700MA 541MOHM SM |
2,675 |
|
Datasheet |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 700 mA | 740mA | Shielded | 541mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TMPV 0754SV-220MN-D22 UH SHIELDED MOLDED INDUCTOR S |
1,600 |
|
Datasheet |
TMPV | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 22 µH | ±20% | - | 5.4A | Unshielded | 93.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | - | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|

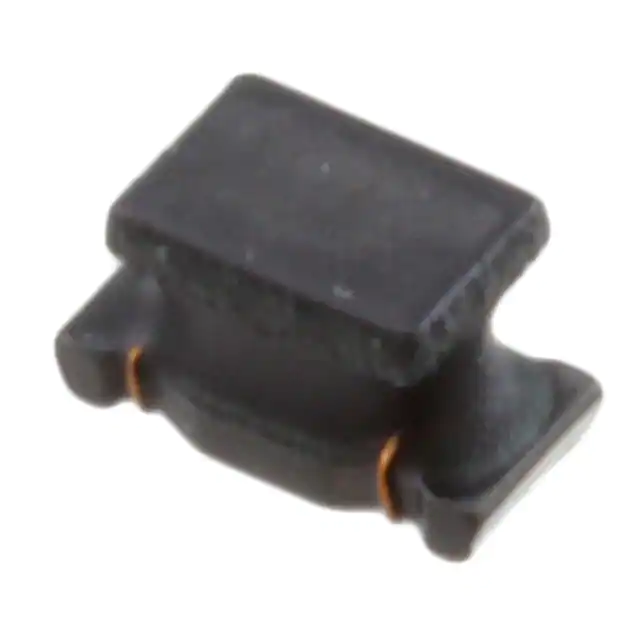

LQH31MN3R3J03LFIXED IND 3.3UH 130MA 793MOHM SM |
1,285 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 130 mA | - | Unshielded | 793mOhm Max | 35 @ 8MHz | 38MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
