Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMPC 0503HV-100MG-D10 UH SHIELDED MOLDED INDUCTOR S |
1,990 |
|
Datasheet |
TMPC0503HV | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 10 µH | ±20% | 2.75 A | 3.5A | Unshielded | 128Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
CPL2508T1R5MFIXED IND 1.5UH 800MA 182MOHM SM |
1,525 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 800 mA | 800mA | Shielded | 182mOhm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.031" (0.80mm) |
|
|
CPL2508T150MFIXED IND 15UH 230MA 2.6 OHM SMD |
1,508 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 230 mA | 230mA | Shielded | 2.6Ohm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.031" (0.80mm) |
|

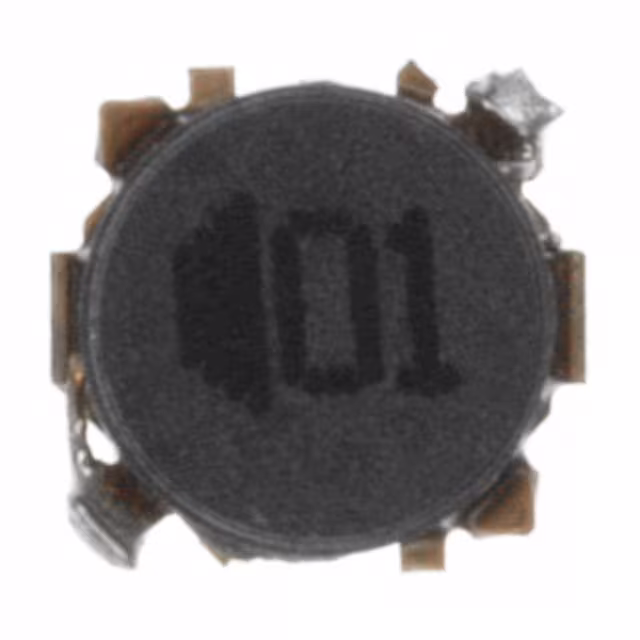

ELL-4LG1R0NAFIXED IND 1UH 1.9A 43 MOHM SMD |
1,335 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 1.9 A | 2.2A | Shielded | 43mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
MPL-SE5040-R47FIXED IND 470NH 8A 7.3 MOHM SMD |
1,006 |
|
- |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 470 nH | - | 8 A | 16A | Shielded | 7.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
S1210R-331JFIXED IND 330NH 740MA 350MOHM SM |
26,000 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 330 nH | ±5% | 740 mA | - | Shielded | 350mOhm Max | 40 @ 25MHz | 255MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
PA4332.472NLTFIXED IND 4.7UH 2.85A 108MOHM SM |
5,262 |
|
Datasheet |
PA4332.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±20% | 2.85 A | 4A | Shielded | 108mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
IFSC1111AZER1R0M01FIXED IND 1UH 2A 68 MOHM SMD |
3,268 |
|
Datasheet |
IFSC-1111AZ | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | 1 µH | ±20% | 2 A | 1.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
VLS3010T-6R8MR75FIXED IND 6.8UH 750MA 312MOHM SM |
1,835 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 750 mA | 750mA | Shielded | 312mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
MGV3225126R8M-10HIGH CURRENT MOLDED SMT POWER IN |
14,873 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 1.2 A | 2.1A | Shielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
1226AS-H-2R2M=P2FIXED IND 2.2UH 2.2A 52 MOHM SMD |
11,547 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.2 A | 1.4A | Shielded | 52mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
MLF1005DR15KTFIXED IND 150NH 25MA 800MOHM SMD |
7,211 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Cut Tape (CT) | Obsolete | Multilayer | Ferrite | 150 nH | ±10% | 25 mA | - | Shielded | 800mOhm Max | 10 @ 25MHz | 350MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LPWI201208SR47TFIXED IND 470NH 3.8A 35MOHM SMD |
2,900 |
|
Datasheet |
LPWI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 3.8 A | 4A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
SLF6025T-220MR73-PFFIXED IND 22UH 940MA 146.4 MOHM |
2,195 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 940 mA | 730mA | Shielded | 146.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.106" (2.70mm) |
|
AISM-1812-R15M-TFIXED IND 150NH 730MA 200MOHM SM |
3,220 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 730 mA | - | Unshielded | 200mOhm Max | 35 @ 25.2MHz | 250MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
TMPA 0603SV-1R0MN-D1.0 UH SHIELDED MOLDED INDUCTOR |
2,000 |
|
Datasheet |
TMPA0603SV | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 11 A | 13.5A | Shielded | 7.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
VLS3010T-1R5N1R6FIXED IND 1.5UH 1.9A 85 MOHM SMD |
1,229 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 1.9 A | 1.4A | Shielded | 85mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
TMPA 0603SV-100MN-D10 UH SHIELDED MOLDED INDUCTOR S |
1,158 |
|
Datasheet |
TMPA0603SV | Nonstandard | Cut Tape (CT) | Active | - | Metal | 10 µH | ±20% | 3.5 A | 4.5A | Shielded | 68mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MLF1005DR10KTFIXED IND 100NH 25MA 600MOHM SMD |
1,051 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 100 nH | ±10% | 25 mA | - | Shielded | 600mOhm Max | 10 @ 25MHz | 450MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MGV322512R68M-10HIGH CURRENT MOLDED SMT POWER IN |
14,921 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 4.7 A | 5.8A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
