Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV3225122R2M-10HIGH CURRENT MOLDED SMT POWER IN |
14,820 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 2.7 A | 3.5A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGV3225124R7M-10HIGH CURRENT MOLDED SMT POWER IN |
14,677 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 1.4 A | 2.4A | Shielded | 168mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGV3225121R0M-10HIGH CURRENT MOLDED SMT POWER IN |
11,769 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 4.4 A | 5A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGV322512R47M-10HIGH CURRENT MOLDED SMT POWER IN |
10,289 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 5.2 A | 7A | Shielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
L1008S1R0MDMITFIXED IND 1UH 1.2A 115 MOHM SMD |
2,636 |
|
Datasheet |
L-DMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.2 A | - | Shielded | 115mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
L1008Q1R0MDMITFIXED IND 1UH 1.2A 120 MOHM SMD |
2,523 |
|
Datasheet |
L-DMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.2 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
ELC-3GN470MFIXED IND 47UH 240MA 1.95OHM SMD |
5,589 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 240 mA | - | Unshielded | 1.95Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
RL1011-330-RFIXED IND 33.2UH 2.13A 70MOHM TH |
3,706 |
|
Datasheet |
RL1011 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33.2 µH | ±10% | 2.13 A | 2.6A | Unshielded | 70mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.413" (10.50mm) |
|
|
RL1011-470-RFIXED IND 47.1UH 1.91A 85MOHM TH |
1,960 |
|
Datasheet |
RL1011 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47.1 µH | ±10% | 1.91 A | 2.18A | Unshielded | 85mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.413" (10.50mm) |
|
|
RL1011-6R8-RFIXED IND 7.04UH 4.03A 23MOHM TH |
1,685 |
|
Datasheet |
RL1011 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.04 µH | ±10% | 4.03 A | 5.64A | Unshielded | 23mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.413" (10.50mm) |
|
|
L1008L1R5MDMITFIXED IND 1.5UH 1.3A 90 MOHM SMD |
1,546 |
|
Datasheet |
L-DMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.5 µH | ±20% | 1.3 A | - | Shielded | 90mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
ELC-3GN220MFIXED IND 22UH 330MA 950MOHM SMD |
2,006 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±20% | 330 mA | - | Unshielded | 950mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
SL1616A-R05LHFFIXED IND 50NH 19A 0.32MOHM SMD |
2,000 |
|
Datasheet |
SL1616 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±15% | 19 A | 29A | Shielded | 0.32mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" (4.00mm) |
|

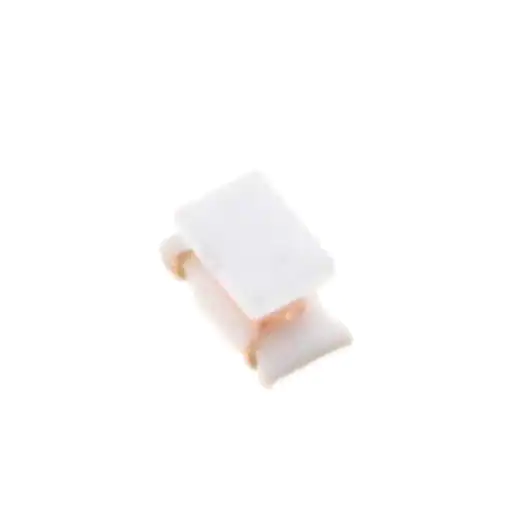

LQW31HN15NJ03LFIXED IND 14.7NH 680MA 35MOHM SM |
1,923 |
|
Datasheet |
LQW31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 14.7 nH | ±5% | 680 mA | - | Unshielded | 35mOhm Max | 60 @ 436MHz | 1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
MSA544R7M0S001INDUCTANCE 4.7 H TOL 20% |
76,000 |
|
Datasheet |
MSA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | - | 3.5A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|

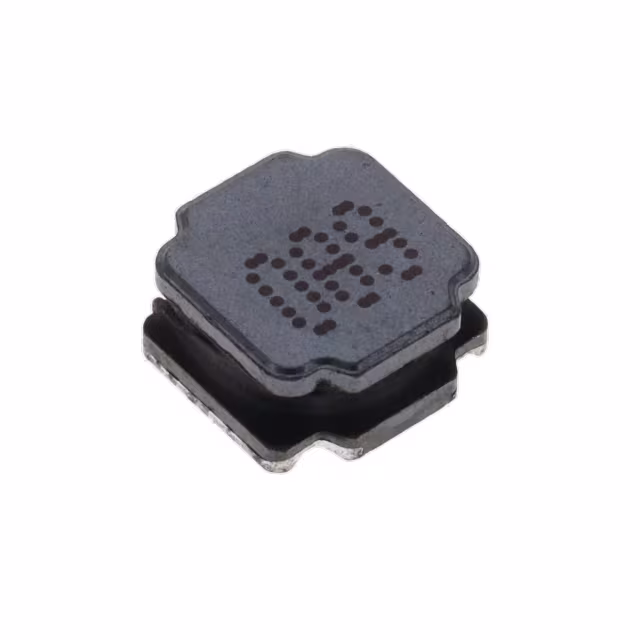

ASPI-0840-680M-TFIXED IND 68UH 1.3A 260 MOHM SMD |
5,920 |
|
Datasheet |
ASPI-0840 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 1.3A | Shielded | 260mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.169" (4.30mm) |
.jpg)
|

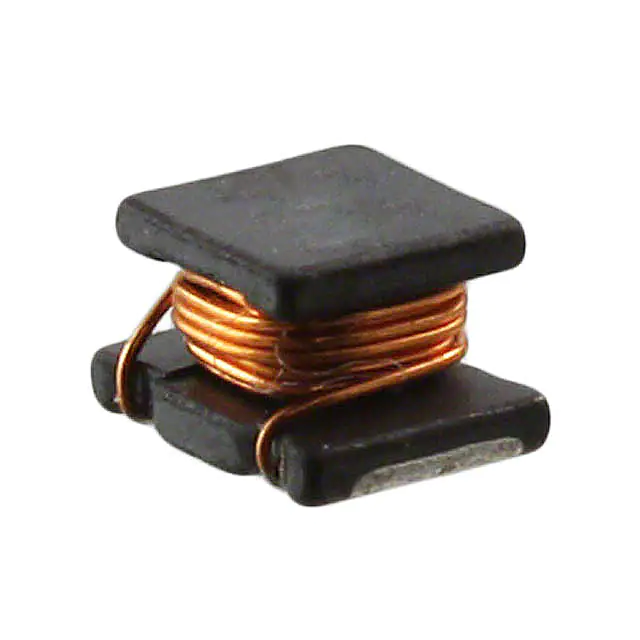

LQW31HN33NJ03LFIXED IND 33NH 530MA 57 MOHM SMD |
4,876 |
|
Datasheet |
LQW31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 nH | ±5% | 530 mA | - | Unshielded | 57mOhm Max | 60 @ 436MHz | 1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQW31HN23NJ03LFIXED IND 23NH 590MA 46 MOHM SMD |
4,707 |
|
Datasheet |
LQW31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 23 nH | ±5% | 590 mA | - | Unshielded | 46mOhm Max | 60 @ 436MHz | 1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQW31HN56NJ03LFIXED IND 56NH 330MA 140MOHM SMD |
4,397 |
|
Datasheet |
LQW31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 56 nH | ±5% | 330 mA | - | Unshielded | 140mOhm Max | 60 @ 436MHz | 1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
MDKK2020T100MMVFIXED IND 10UH 680MA 690MOHM SMD |
2,274 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 680 mA | 750mA | Shielded | 690mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
