Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
74479774147FIXED IND 470NH 1.3A 120MOHM SMD |
1,601 |
|
Datasheet |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | - | 470 nH | ±20% | 1.3 A | 700mA | Shielded | 120mOhm | 8 @ 1MHz | 130MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
APO 322523NV-470M47 UH SHIELDED DRUM CORE, WIREWO |
1,597 |
|
Datasheet |
APO322523NV | 1210 (3225 Metric) | Cut Tape (CT) | Active | Wirewound | Ferrite | 47 µH | ±20% | 500 mA | 300mA | Unshielded | 900mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
CLF7045T-220M-HFIXED IND 22UH 1.9A 69 MOHM SMD |
1,333 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 1.8A | Shielded | 69mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
TMPC 0412HPV-R47MG-Z02470 NH SHIELDED MOLDED INDUCTOR |
4,000 |
|
Datasheet |
TMPC0412HPV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 470 nH | ±20% | 6 A | 6.5A | Unshielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
TMPC 0412HPV-2R2MG-Z022.2 UH SHIELDED MOLDED INDUCTOR |
4,000 |
|
Datasheet |
TMPC0412HPV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 2.8 A | 3.5A | Unshielded | 80mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
TMPC 0412HPV-1R5MG-Z021.5 UH SHIELDED MOLDED INDUCTOR |
4,000 |
|
Datasheet |
TMPC0412HPV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 1.5 µH | ±20% | 3 A | 4A | Unshielded | 63.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
TMPC 0412HPV-4R7MG-Z024.7 UH SHIELDED MOLDED INDUCTOR |
4,000 |
|
Datasheet |
TMPC0412HPV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 2 A | 2.5A | Unshielded | 145mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
TMPC 0412HPV-3R3MG-Z023.3 UH SHIELDED MOLDED INDUCTOR |
4,000 |
|
Datasheet |
TMPC0412HPV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 3.3 µH | ±20% | 2.3 A | 3A | Unshielded | 97mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
TMPC 0412HPV-1R0MG-Z021.0 UH SHIELDED MOLDED INDUCTOR |
4,000 |
|
Datasheet |
TMPC0412HPV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 1 µH | ±20% | 4 A | 6A | Unshielded | 47mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
AMDLA4012S-2R2MTFIXED IND 2.2UH 3.5A 80MOHM SMD |
3,709 |
|
Datasheet |
AMDLA4012S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.5 A | 5.5A | Shielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.047" (1.20mm) |
|

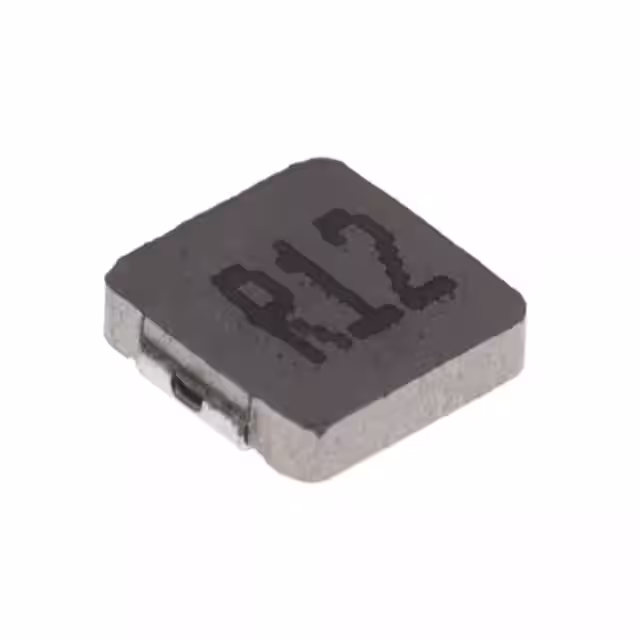

0412CDMCCDS-R12MCFIXED IND 120NH 11A 7.8MOHM SMD |
2,945 |
|
Datasheet |
0412CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±20% | 11 A | 16A | Shielded | 7.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
|
TMIM0503S-R47MG-D02IND 0.47UH 2.9MOHM 22A |
2,000 |
|
Datasheet |
TMIM0503S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 22 A | 24A | Unshielded | 2.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.118" (3.00mm) |
|
|
THMC0503SP-2R2MG-DIND 2.2UH 14.4MOHM 10.5A |
2,000 |
|
Datasheet |
THMC0503SP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 10.5 A | 11A | Unshielded | 14.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
THMC0503SP-4R7MG-DIND 4.7UH 32.4MOHM 7A |
2,000 |
|
Datasheet |
THMC0503SP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 7 A | 7A | Unshielded | 32.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
THMC0503SP-1R0MG-DIND 1UH 6.7MOHM 13A |
2,000 |
|
Datasheet |
THMC0503SP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 13 A | 13.5A | Unshielded | 6.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
TMIM0503S-R68MG-D02IND 0.68UH 4MOHM 18A |
2,000 |
|
Datasheet |
TMIM0503S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 18 A | 21A | Unshielded | 4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.118" (3.00mm) |
|
|
THMC0503SP-3R3MG-DIND 3.3UH 21MOHM 9A |
2,000 |
|
Datasheet |
THMC0503SP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 9 A | 8.5A | Unshielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
TMIM0503S-3R3MG-D02IND 3.3UH 17MOHM 9A |
2,000 |
|
Datasheet |
TMIM0503S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 9 A | 9A | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.118" (3.00mm) |
|
|
TMIM0503S-2R2MG-D02IND 2.2UH 11.8MOHM 10.5A |
1,987 |
|
Datasheet |
TMIM0503S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 2.2 µH | ±20% | 10.5 A | 10.5A | Unshielded | 11.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.118" (3.00mm) |
|
|
THMC0503SP-6R8MG-DIND 6.8UH 50MOHM 6A |
1,980 |
|
Datasheet |
THMC0503SP | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal | 6.8 µH | ±20% | 6 A | 6.7A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
