Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THMA0503SP-4R7MN-DIND 4.7UH 31.2MOHM 6.6A |
2,000 |
|
Datasheet |
THMA0503SP | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 6.6 A | 5.5A | Unshielded | 31.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
THMA0503SP-3R3MN-DIND 3.3UH 19.2MOHM 8A |
2,000 |
|
Datasheet |
THMA0503SP | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 8 A | 6.5A | Unshielded | 19.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
THMA0503SP-100MN-DIND 10UH 69.6MOHM 4.6A |
1,990 |
|
Datasheet |
THMA0503SP | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 10 µH | ±20% | 4.6 A | 4.2A | Unshielded | 69.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
THMA0503SP-2R2MN-DIND 2.2UH 14.4MOHM 9.5A |
1,934 |
|
Datasheet |
THMA0503SP | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 2.2 µH | ±20% | 9.5 A | 7.5A | Unshielded | 14.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
APO322523NV-2R2M2.2 UH FIXED IND 1000MA 190MOHM |
1,500 |
|
- |
APO322523NV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1 A | 1A | Unshielded | 190mOhm Max | - | 200MHz | - | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
APO322523NV-4R7M4.7 UH FIXED IND 850MA 280MOHM |
1,500 |
|
- |
APO322523NV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 850 mA | 850mA | Unshielded | 280mOhm Max | - | 100MHz | - | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
SMHC2511-R15MHFFIXED IND 150NH 26A 2.4MOHM SMD |
30,000 |
|
Datasheet |
SMHC2511 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 26 A | 52A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

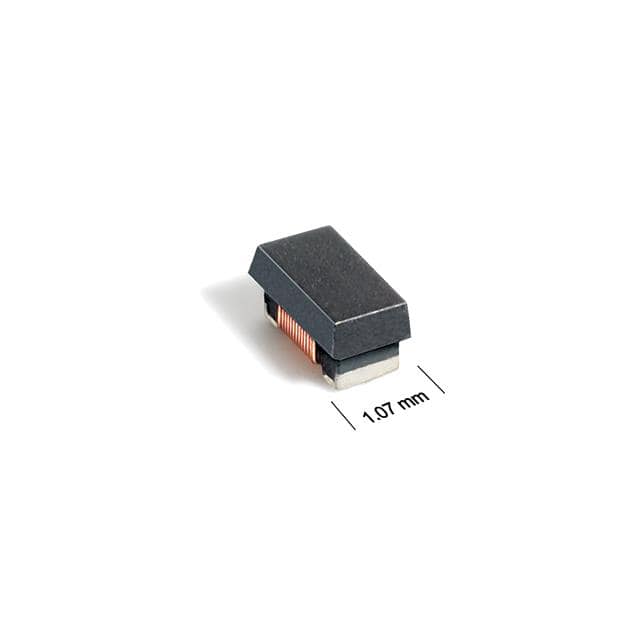

PFL1609-561MEWPOWER INDUCTOR, SHIELDED, 20% TO |
15,681 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 560 nH | ±20% | 1.1 A | 710mA | Shielded | 130mOhm Max | - | 600MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
PFL1609-472MEWPOWER INDUCTOR, SHIELDED, 20% TO |
12,142 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 380 mA | 240mA | Shielded | 700mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
PFL1609-681MEWPOWER INDUCTOR, SHIELDED, 20% TO |
11,419 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 680 nH | ±20% | 1.1 A | 610mA | Shielded | 170mOhm Max | - | 520MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
300HS-331J=P2FIXED IND 330UH 50MA 8.1 OHM SMD |
10,302 |
|
Datasheet |
43FS | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 50 mA | - | Unshielded | 8.1Ohm Max | 50 @ 796kHz | 4MHz | - | -10°C ~ 60°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PFL1609-102MEWPOWER INDUCTOR, SHIELDED, 20% TO |
7,090 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 650 mA | 480mA | Shielded | 230mOhm Max | - | 445MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
PFL1609-222MEWPOWER INDUCTOR, SHIELDED, 20% TO |
3,812 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 480 mA | 300mA | Shielded | 470mOhm Max | - | 130MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
#A915BY-470M=P3FIXED IND 47UH 750MA 0.268OHM SM |
2,485 |
|
Datasheet |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 750 mA | 340mA | Shielded | 268mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
PFL1609-103MEWPOWER INDUCTOR, SHIELDED, 20% TO |
2,026 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 10 µH | ±20% | 320 mA | 130mA | Shielded | 1.4Ohm Max | - | 35MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|
|
PFL1609-682MEWPOWER INDUCTOR, SHIELDED, 20% TO |
1,939 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 330 mA | 170mA | Shielded | 1.2Ohm Max | - | 40MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
.JPG)
|
B82442H1225J000FIXED IND 2.2MH 75MA 28 OHM SMD |
1,468 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 75 mA | - | Unshielded | 28Ohm Max | 30 @ 252kHz | 1.2MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
MSA75152K0S001INDUCTANCE 1.5 MH TOL 10% |
2,000 |
|
Datasheet |
MSA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | - | 250mA | Unshielded | 6Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
MS10404R7MS001INDUCTANCE 4.7UH TOL 20% |
2,000 |
|
Datasheet |
MS | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 8.5 A | 13A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
ASPI-0428S-330M-TFIXED IND 33UH 560MA 378MOHM SMD |
5,306 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 560 mA | - | Shielded | 378mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
