Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIP0530GX-1R0MPBDGPOWER INDUCTOR 5.7X5.4X3 1.0UH 2 |
3,930 |
|
Datasheet |
AIP0530GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 10.5 A | 14A | Shielded | 8.5mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
TMPC 0412HP-4R7MG-Z024.7 UH SHIELDED MOLDED INDUCTOR |
3,896 |
|
Datasheet |
TMPC0412HP | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 2 A | 2.5A | Unshielded | 145mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
AIP0530GX-3R3MPBDGPOWER INDUCTOR 5.7X5.4X3 3.3UH 2 |
3,790 |
|
Datasheet |
AIP0530GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 7.7 A | 8.7A | Shielded | 23mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
|
TMPC 0412HP-2R2MG-Z022.2 UH SHIELDED MOLDED INDUCTOR |
3,775 |
|
Datasheet |
TMPC0412HP | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 2.8 A | 3.5A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
TFM201610GHM-R68MTAAFIXED IND 680NH SMD |
3,000 |
|
Datasheet |
TFM-GHM | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal | 680 nH | - | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
TMPC 0604H-R15MG-R6705-D150 NH SHIELDED MOLDED INDUCTOR |
2,993 |
|
Datasheet |
TMPC0604H | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 150 nH | ±20% | 30 A | 55A | Unshielded | 1.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.157" (4.00mm) |
|
|
TMPA606010AF-100MN-D10 UH SHIELDED MOLDED INDUCTOR S |
2,992 |
|
Datasheet |
TMPA606010SP | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 10 µH | ±20% | 1.7 A | 2.1A | Shielded | 310mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.039" (1.00mm) |
|
|
TMPC 0604H-100MG-D10 UH SHIELDED MOLDED INDUCTOR S |
2,000 |
|
Datasheet |
TMPC0604H | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 4 A | 7A | Unshielded | 72mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.157" (4.00mm) |
|
|
TMPC 0603H-R15MG-0R907-D150 NH SHIELDED MOLDED INDUCTOR |
2,000 |
|
Datasheet |
TMPC0603H | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 150 nH | ±20% | 27 A | 45A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
84333CFIXED IND 33UH 550MA 860MOHM SMD |
1,940 |
|
Datasheet |
8400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±10% | 550 mA | - | Unshielded | 860mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.177" L x 0.130" W (4.50mm x 3.30mm) | 0.114" (2.90mm) |
|
|
TMPC 0605H-2R2MG-D2.2 UH SHIELDED MOLDED INDUCTOR |
1,587 |
|
Datasheet |
TMPC0605H | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 10 A | 14A | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
TMPC 0605H-4R7MG-D4.7 UH SHIELDED MOLDED INDUCTOR |
1,537 |
|
Datasheet |
TMPC0605H | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 6.5 A | 10A | Unshielded | 30.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
TMPC 0503HV-4R7MG-D4.7 UH SHIELDED MOLDED INDUCTOR |
1,380 |
|
Datasheet |
TMPC0503HV | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 4.6 A | 6A | Unshielded | 53Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
TMPC 0503HV-2R2MG-D2.2 UH SHIELDED MOLDED INDUCTOR |
1,230 |
|
Datasheet |
TMPC0503HV | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 5.5 A | 9A | Unshielded | 35Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
ECS-MPI4040R3-150-RFIXED IND 15UH 1.3A 342 MOHM SMD |
3,500 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.3 A | 3A | Shielded | 342mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|
|
SIM061R0M10MAEMOLDED IND 0806 1.0UH M SHLD AEC |
1,900 |
|
Datasheet |
SIM | 0806 (2016 Metric) | Strip | Active | Molded | Metal | 1 µH | ±20% | 3.2 A | 3.8A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
SIM062R2M10MAEMOLDED IND 0806 2.2UH M SHLD AEC |
1,900 |
|
Datasheet |
SIM | 0806 (2016 Metric) | Strip | Active | Molded | Metal | 2.2 µH | ±20% | 2 A | 2.45A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|

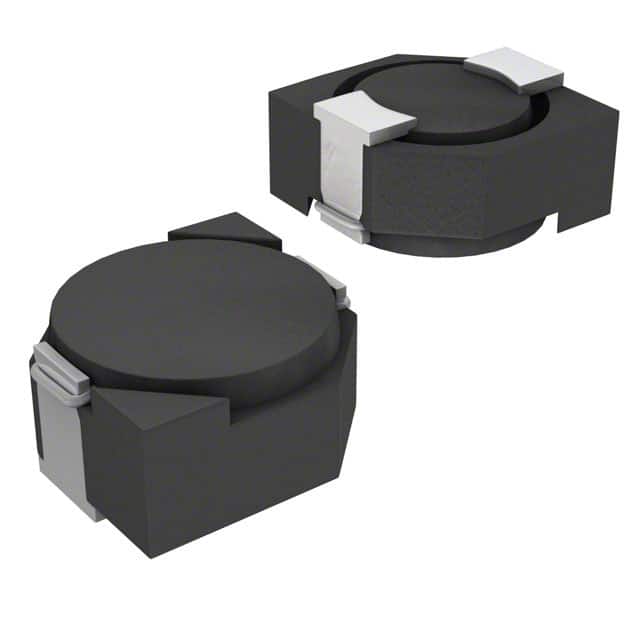

HM66-80151LFTR13FIXED IND 150UH 1.15A 506MOHM SM |
1,600 |
|
Datasheet |
HM66 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | - | 150 µH | ±20% | 1.15 A | - | Shielded | 506mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
AIAC-1008C-15NK-TFIXED IND 15NH 900MA 7.3MOHM SMD |
1,488 |
|
Datasheet |
AIAC-1008C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 15 nH | ±10% | 900 mA | - | Unshielded | 7.3mOhm Max | 70 @ 300MHz | 2.5GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | - | 0.126" L x 0.075" W (3.20mm x 1.90mm) | 0.087" (2.20mm) |
|
887FU-252M=P3FIXED IND 2.5MH 37MA 81 OHM SMD |
2,094 |
|
Datasheet |
D32FU | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.5 mH | ±20% | 37 mA | 42mA | Unshielded | 81Ohm Max | - | - | - | - | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" (2.20mm) |
