Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTCDRH62BF-100M10UH SMD SHIELDED POWR INDUCTOR |
505 |
|
Datasheet |
CTCDRH62BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | 1.1A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
SPRH74-6R8NSMD POWER INDUCTOR |
100 |
|
Datasheet |
SPRH74 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.83 A | 3.3A | Shielded | 37.2 mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.165" (4.20mm) |
|
|
SPRH73-4R7NSMD POWER INDUCTOR |
4,238 |
|
Datasheet |
SPRH73 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.49 A | 4.1A | Shielded | 46.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.130" (3.30mm) |
|
|
SPRH74-470MSMD POWER INDUCTOR |
1,512 |
|
Datasheet |
SPRH74 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 1.25A | Shielded | 204mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.165" (4.20mm) |
|
|
SPRH74-221MSMD POWER INDUCTOR |
3,828 |
|
Datasheet |
SPRH74 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 0.75 A | 580mA | Shielded | 832mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.165" (4.20mm) |
|
|
SPRH74-102MSMD POWER INDUCTOR |
3,298 |
|
Datasheet |
SPRH74 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1000 µH | ±20% | 0.33 A | 270mA | Shielded | 3.988Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.165" (4.20mm) |
|
|
SPRH74-101MSMD POWER INDUCTOR |
4,097 |
|
Datasheet |
SPRH74 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.08 A | 850mA | Shielded | 388mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.165" (4.20mm) |
|
AMSLA-1050-100NM-TIND 0.1UH 50A 0.42M |
1,950 |
|
Datasheet |
AMSLA-1050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 100 nH | ±20% | 50 A | 70A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
|

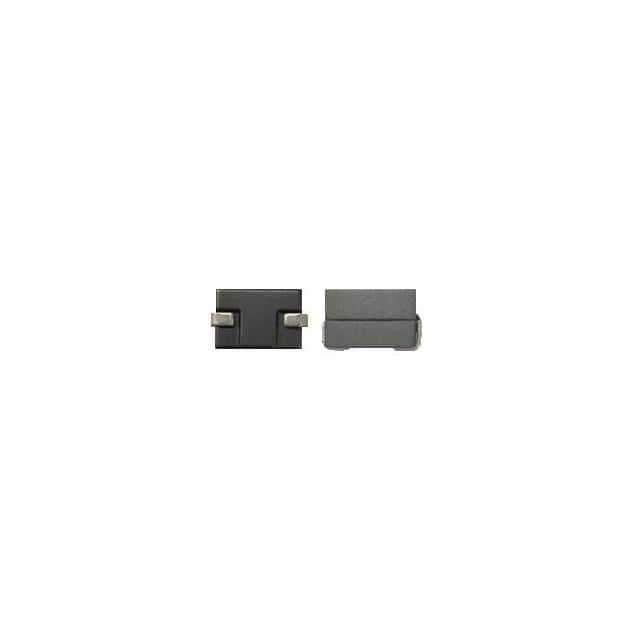

AMSLA-7050-150NM-TIND 0.15UH 30A 0.35M |
1,935 |
|
Datasheet |
AMSLA-7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 150 nH | ±20% | 45 A | 30A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.197" (5.00mm) |
|
VLF4010AT-6R8MR81FIXED IND 6.8UH 810MA 320MOHM SM |
378 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 810 mA | 810mA | Shielded | 320mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.138" W (3.70mm x 3.50mm) | 0.039" (1.00mm) |
|
CTCH855F-680K68UH RADIAL LEAD FIX INDUCTOR |
172 |
|
Datasheet |
CTCH855F | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | - | 1A | Unshielded | 340mOhm Max | - | - | - | - | 2.52 MHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
VLF252012MT-1R5NFIXED IND 1.5UH 2.17A 69MOHM SMD |
2,489 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.17 A | 1.1A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
0603DC-22NXJRWFIXED IND 22NH 1.75A 95MOHM SMD |
744 |
|
Datasheet |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 1.75 A | - | Unshielded | 95mOhm Max | 88 @ 900MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
SPQ105-100MSMD POWER INDUCTOR |
100 |
|
Datasheet |
SPQ105 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.25 A | 4.5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.490" L x 0.401" W (10.40mm x 10.20mm) | 0.189" (4.80mm) |
|
|
DR04066800FIXED INDUCTOR DRW 04 X 06 680 U |
900 |
|
Datasheet |
04X06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 680 µH | ±10% | 60 mA | - | Unshielded | 5.83Ohm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.157" Dia (4.00mm) | 0.236" (6.00mm) |
|
PM4345.682NLTFIXED IND 6.8UH 2.4A 150MOHM SMD |
762 |
|
Datasheet |
PM4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 2.4 A | 3.8A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
CTMC1812SF-471KSMD FERRITE CORE WW INDUCTOR |
157 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
PA0513.211NLFIXED IND 210NH 45A 0.32MOHM SMD |
1,443 |
|
Datasheet |
PA0513NL | Nonstandard | Tray | Active | - | - | 210 nH | ±20% | 45 A | 71A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
|
MGA06038R2M-10FIXED IND 8.2UH 4.5A 60 MOHM SMD |
1,000 |
|
- |
MGA | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 8.2 µH | ±20% | 4.5 A | 6A | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.130" (3.30mm) |
|
|
MGA0603R22M-10FIXED IND 220NH 23A 2.8 MOHM SMD |
990 |
|
- |
MGA | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 220 nH | ±20% | 23 A | 40A | Unshielded | 2.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.130" (3.30mm) |
