Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV0602R82M-10FIXED IND 820NH 8A 15.9 MOHM SMD |
500 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 820 nH | ±20% | 8 A | 17A | Shielded | 15.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|
|
MGV0602R22M-10FIXED IND 220NH 14A 5.7 MOHM SMD |
481 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 220 nH | ±20% | 14 A | 26A | Shielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|
|
MGV0602R15M-10FIXED IND 150NH 15A 5.2 MOHM SMD |
277 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 150 nH | ±20% | 15 A | 38A | Shielded | 5.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|
ETQ-P3W1R5WFNFIXED IND 1.5UH 11A 13 MOHM SMD |
1,868 |
|
Datasheet |
PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 1.5 µH | ±20% | 11 A | - | Shielded | 13mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

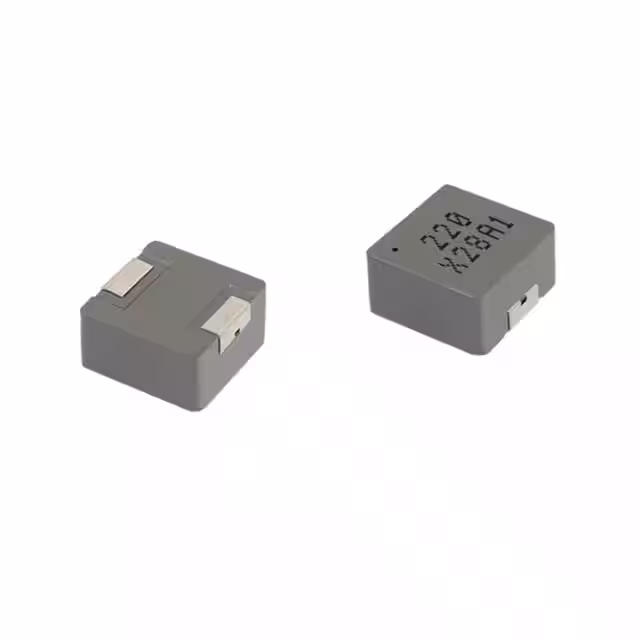

CSAC0530-6R8MSMD MOLDING POWER CHOKE |
1,000 |
|
Datasheet |
CSAC0530 | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 3.2 A | 4.3A | Shielded | 102mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.207" W (5.45mm x 5.25mm) | 0.122" (3.10mm) |
|
CSAB1040A-100MSMD MOLDING POWER CHOKE |
790 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 6.9 A | 9.3A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-470MSMD MOLDING POWER CHOKE |
775 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 47 µH | ±20% | 3.1 A | 4.5A | Shielded | 145mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-2R2MSMD MOLDING POWER CHOKE |
772 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 13.2 A | 25A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-1R0MSMD MOLDING POWER CHOKE |
770 |
|
Datasheet |
CSAB1040A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 21.5 A | 28A | Shielded | 3.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-1R5MSMD MOLDING POWER CHOKE |
757 |
|
Datasheet |
CSAB1040A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 18 A | 26A | Shielded | 4.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-R68MSMD MOLDING POWER CHOKE |
745 |
|
Datasheet |
CSAB1040A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 680 nH | ±20% | 25 A | 33A | Shielded | 2.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|

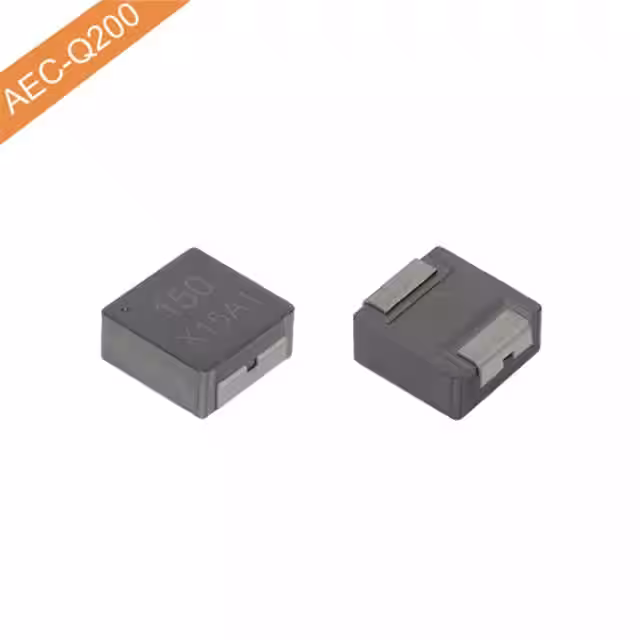

VSAB0530-6R8MAUTOMOTIVE SMD MOLDING POWER CHK |
730 |
|
Datasheet |
VSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 3.3 A | 3.1A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.205" W (5.45mm x 5.20mm) | 0.118" (3.00mm) |
|

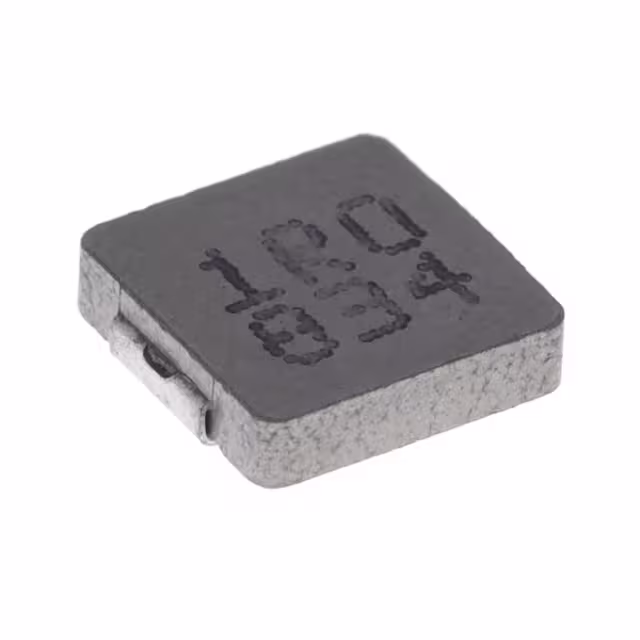

0618CDMCCDS-1R0MCFIXED IND 1UH 8.3A 16 MOHM SMD |
702 |
|
Datasheet |
0618CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 8.3 A | 14.3A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
|
CSAB1040A-220MSMD MOLDING POWER CHOKE |
637 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 22 µH | ±20% | 4.7 A | 6A | Shielded | 66mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-R36MFIX IND 0.36UH 30A 1.5MOHM SMD |
100 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 360 nH | ±20% | 30 A | 46A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-150MFIX IND 15UH 5.8A 45.0MOHM SMD |
100 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 15 µH | ±20% | 5.8 A | 7A | Shielded | 45mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-R56MFIX IND 0.56UH 26.5A 2.0MOHM SMD |
100 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 560 nH | ±20% | 26.5 A | 33A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-R47MFIX IND 0.47UH 28A 1.6MOHM SMD |
100 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 470 nH | ±20% | 28 A | 40A | Shielded | 1.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-R15MFIX IND 0.15UH 40A 0.65MOHM SMD |
100 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 150 nH | ±20% | 40 A | 70A | Shielded | 0.65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
VSAB0530-R68MFIX IND 0.68UH 9A 9.6MOHM SMD |
100 |
|
Datasheet |
VSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 680 nH | ±20% | 10.5 A | 7.5A | Shielded | 9.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.205" W (5.45mm x 5.20mm) | 0.118" (3.00mm) |
