Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSAB1040A-1R2MFIX IND 1.2UH 18.5A 3.9MOHM SMD |
100 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.2 µH | ±20% | 18.5 A | 27A | Shielded | 3.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
#B966AS-120M=P3FIXED IND 12UH 3.7A 35 MOHM SMD |
1,228 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3.7 A | 3.9A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
|
CSAB1040A-R22MFIX IND 0.22UH 35A 1.0MOHM SMD |
4,130 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 220 nH | ±20% | 35 A | 48A | Shielded | 1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
DR1050-120-RFIXED IND 12UH 3.94A 30.4MOHM SM |
2,141 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±30% | 3.94 A | 4.1A | Shielded | 30.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
|
CSAB1040A-4R7MSMD MOLDING POWER CHOKE |
795 |
|
Datasheet |
CSAB1040A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 9.9 A | 14A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|
VLF4010ST-2R2M1R4FIXED IND 2.2UH 1.4A 81 MOHM SMD |
584 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.4 A | 1.4A | Shielded | 81mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.169" L x 0.157" W (4.30mm x 4.00mm) | 0.039" (1.00mm) |
|
VLF252010MT-100M-CAFIXED IND 10UH 660MA 590MOHM SMD |
514 |
|
Datasheet |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 660 mA | 440mA | Shielded | 590mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
AMDLA1004S-2R2MTFIXED IND 2.2UH 15A 6.7MOHM SMD |
257 |
|
Datasheet |
AMDLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 15 A | 20A | Shielded | 6.7mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
CLF6045T-1R0N-HFIXED IND 1UH 4.5A 11 MOHM SMD |
1,631 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.5 A | 5A | Shielded | 11mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|

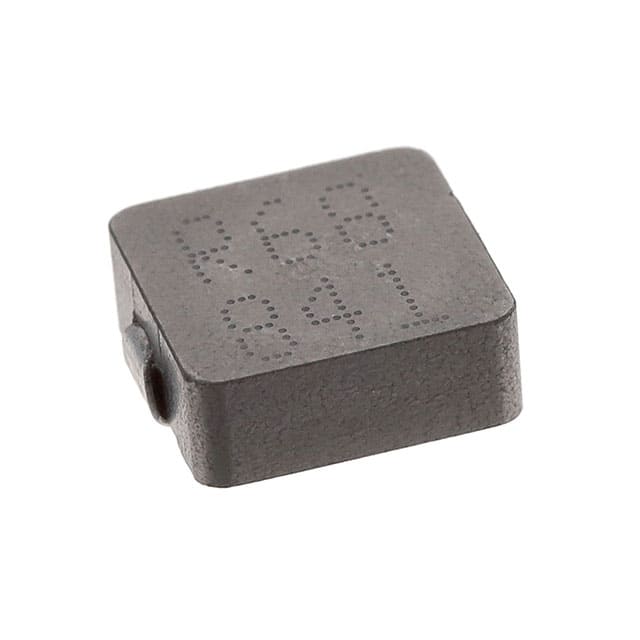

104CDMCCDS-R68MCFIXED IND 680NH 23.5A 2.4MOHM SM |
407 |
|
Datasheet |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 23.5 A | 39A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
HM79-40330LFTR13FIXED IND 33UH 1.2A 130 MOHM SMD |
995 |
|
Datasheet |
HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 33 µH | ±20% | 1.2 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
HM79-20220LFTR13FIXED IND 22UH 1.11A 180 MOHM |
968 |
|
Datasheet |
HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 22 µH | ±20% | 1.11 A | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|

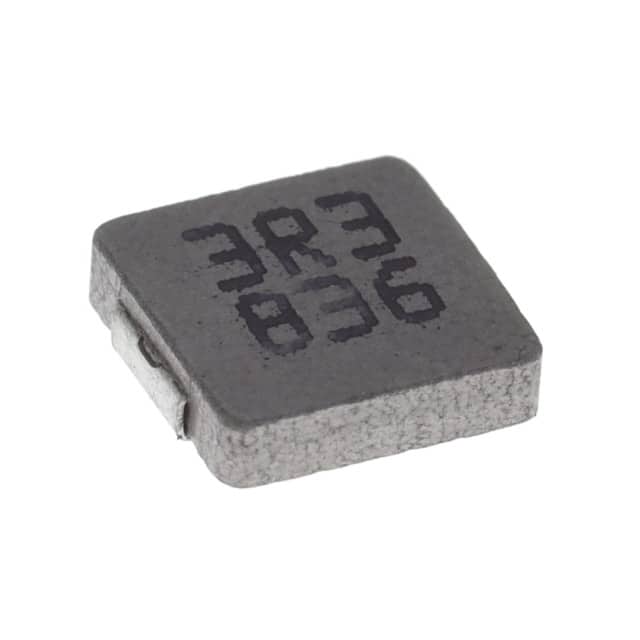

0618CDMCCDS-3R3MCFIXED IND 3.3UH 4.7A 50MOHM SMD |
610 |
|
Datasheet |
0618CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 4.7 A | 8A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
|
IHLP1212BZEVR10M01FIXED IND SMD |
3,974 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP1212ABEVR47M01FIXED IND SMD |
2,097 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP1212ABEVR22M01FIXED IND SMD |
1,298 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP1212AZEVR47M01FIXED IND SMD |
4,156 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP1212AZEVR10M01FIXED IND SMD |
2,271 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP1212AZEVR22M01FIXED IND SMD |
1,924 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP1212AZEV1R0M01FIXED IND SMD |
4,854 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
