Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

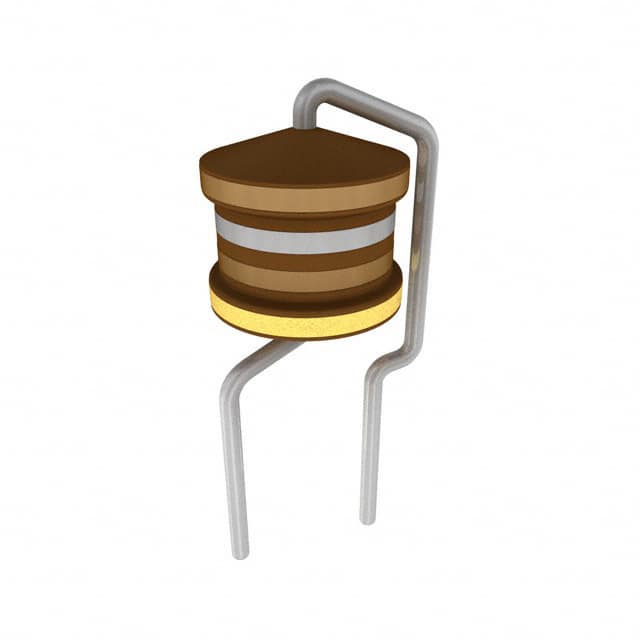

B82144B2184J000FIXED IND 180UH 950MA 785MOHM TH |
771 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 950 mA | 720mA | Unshielded | 785mOhm Max | 40 @ 79.6kHz | 4MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

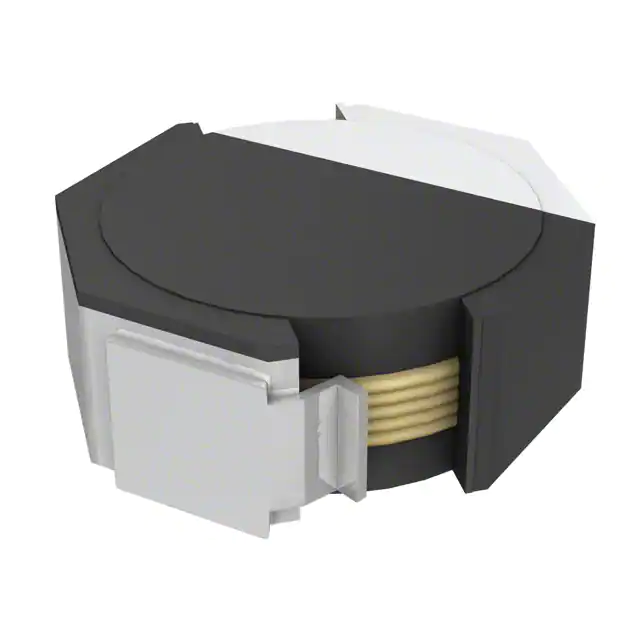

VLF4014ST-1R0N2R3FIXED IND 1UH 2.3A 49 MOHM SMD |
334 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.3 A | 2.7A | Shielded | 49mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.055" (1.40mm) |
|
VLS4012ET-1R5N-CAFIXED IND 1.5UH 2.45A 72MOHM SMD |
258 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.45 A | 2.1A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
SL2026-R15MHFSMD Power Bead 0.15uH 0.47mOhm |
800 |
|
Datasheet |
SL2026 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±20% | 40 A | 22A | Shielded | 0.47mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.260" (6.60mm) |
|

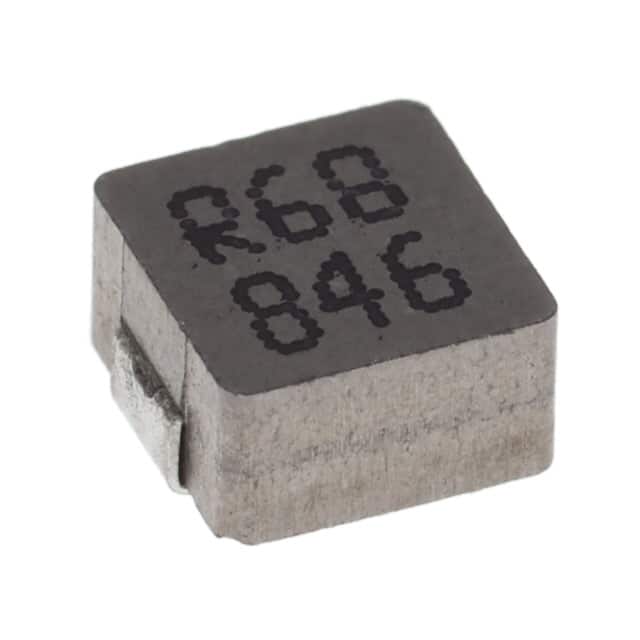

0530CDMCCDS-R68MCFIXED IND 680NH 9.6A 12MOHM SMD |
723 |
|
Datasheet |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 9.6 A | 14A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

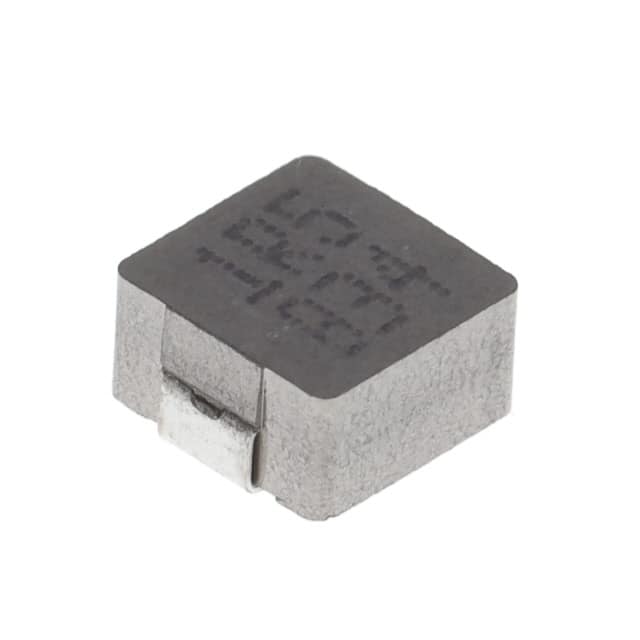

0530CDMCCDS-1R5MCFIXED IND 1.5UH 7.2A 25MOHM SMD |
688 |
|
Datasheet |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 7.2 A | 13A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
0420CDMCCDS-150MCFIXED IND 15UH 1.4A 352MOHM SMD |
325 |
|
Datasheet |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 1.4 A | 1.6A | Shielded | 352mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
0420CDMCCDS-R68MCFIXED IND 680NH 8A 18 MOHM SMD |
222 |
|
Datasheet |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 8 A | 9.6A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
CDRH2D09NP-6R8MCFIXED IND 6.8UH 530MA 340MOHM SM |
216 |
|
Datasheet |
CDRH2D09 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 6.8 µH | ±25% | 530 mA | 330mA | Shielded | 340mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
VLS4012T-1R5N1R5FIXED IND 1.5UH 1.5A 72 MOHM SMD |
110 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 1.5 A | 2.1A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012T-470MR39FIXED IND 47UH 390MA 1.02OHM SMD |
1,766 |
|
- |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 390 mA | 410mA | Shielded | 1.02Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
FDSD0412-H-1R0M=P3FIXED IND 1UH 4.3A 44 MOHM SMD |
1,211 |
|
Datasheet |
FDSD0412 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.3 A | 4.7A | Shielded | 44mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.047" (1.20mm) |
|

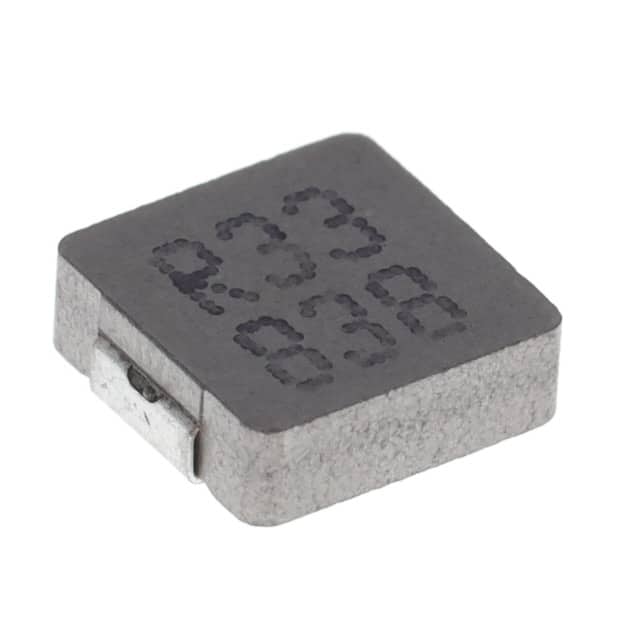

0624CDMCCDS-R33MCFIXED IND 330NH 20.5A 4.1MOHM SM |
766 |
|
Datasheet |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 20.5 A | 28.5A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|

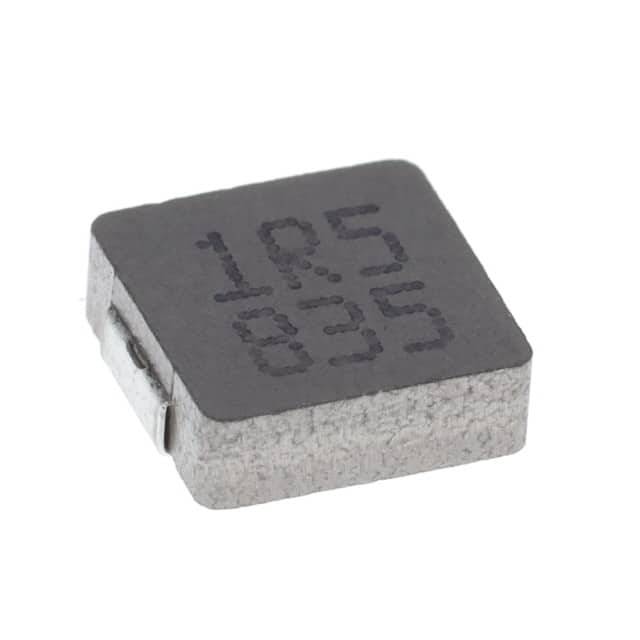

0624CDMCCDS-1R5MCFIXED IND 1.5UH 8.7A 19.2MOHM SM |
173 |
|
Datasheet |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 8.7 A | 15A | Shielded | 19.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
0518CDMCCDS-4R7MCFIXED IND 4.7UH 3.2A 85MOHM SMD |
2,154 |
|
Datasheet |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 3.2 A | 5.1A | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
IHLP5050CEER5R6M06FIXED IND 5.6UH 9.5A 18.19 MOHM |
500 |
|
Datasheet |
IHLP-5050CE-06 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 9.5 A | 19A | Shielded | 18.19mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
DD1217AS-H-470M=P3FIXED IND 47UH 1.8A 204MOHM SMD |
660 |
|
Datasheet |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | 2.8A | Shielded | 204mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DD1217AS-H-1R5N=P3FIXED IND 1.5UH 9.4A 7.6MOHM SMD |
258 |
|
Datasheet |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 9.4 A | 15A | Shielded | 7.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
CT1008CSF-471GSMD CER CORE WIRE-WOUND INDUCTOR |
296 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±2% | - | - | - | 1.2Ohm | - | 450MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-392GSMD CER CORE WIRE-WOUND INDUCTOR |
288 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±2% | - | - | - | 3.6Ohm | - | 100MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
