Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMPA0603HTV-2R2MN-DIND 2.2UH 15.8MOHM 2.2A |
854 |
|
Datasheet |
TMPA0603HTV | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 2.2 µH | ±20% | 9 A | 11A | Shielded | 15.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
VLS3012T-150MR58FIXED IND 15UH 580MA 528MOHM SMD |
755 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 580 mA | 580mA | Shielded | 528mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
TMPA 1005SV-4R7MN-D4.7 UH SHIELDED MOLDED INDUCTOR |
745 |
|
Datasheet |
TMPA1005SV | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 15 A | 16A | Shielded | 10.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
TMPC 1004HV-220MG-D22 UH SHIELDED MOLDED INDUCTOR S |
695 |
|
Datasheet |
TMPC1004HV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 22 µH | ±20% | 5 A | 7A | Unshielded | 74mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
TMPA 1005SV-8R2MN-D8.2 UH SHIELDED MOLDED INDUCTOR |
688 |
|
Datasheet |
TMPA1005SV | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 8.2 µH | ±20% | 10 A | 13.5A | Shielded | 18.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
TMPA0603HTV-6R8MN-DIND 6.8UH 50MOHM 6.8A |
661 |
|
Datasheet |
TMPA0603HTV | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 6.8 µH | ±20% | 5 A | 5.5A | Shielded | 50mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TMPA 1005SV-100MN-D10 UH SHIELDED MOLDED INDUCTOR S |
620 |
|
Datasheet |
TMPA1005SV | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 10 µH | ±20% | 7.6 A | 13A | Shielded | 21.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
TMPA 1005SV-2R2MN-D2.2 UH SHIELDED MOLDED INDUCTOR |
534 |
|
Datasheet |
TMPA1005SV | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 19.5 A | 20A | Shielded | 5.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
CDRH3D14/HPNP-4R7NCFIXED IND 4.7UH 1.04A 214MOHM SM |
400 |
|
Datasheet |
CDRH3D14/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 1.04 A | 1.45A | Shielded | 214mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
VLS3015T-470MR31FIXED IND 47UH 310MA 1.406OHM SM |
311 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 310 mA | 310mA | Shielded | 1.406Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
CTMMP2712F-R68MSMD Shielded Power Inductor |
3,840 |
|
Datasheet |
- | - | Bulk | Active | - | - | 0.68 µH | ±20% | 22 A | - | Shielded | 5.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
PFL1609-471MEWPOWER INDUCTOR, SHIELDED, 20% TO |
681 |
|
Datasheet |
PFL1609 | Nonstandard | Strip | Active | Molded | Metal Composite | 470 nH | ±20% | 1 A | 760mA | Shielded | 100mOhm Max | - | 650MHz | AEC-Q200 | -40°C ~ 140°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.042" W (1.80mm x 1.07mm) | 0.038" (0.97mm) |
|

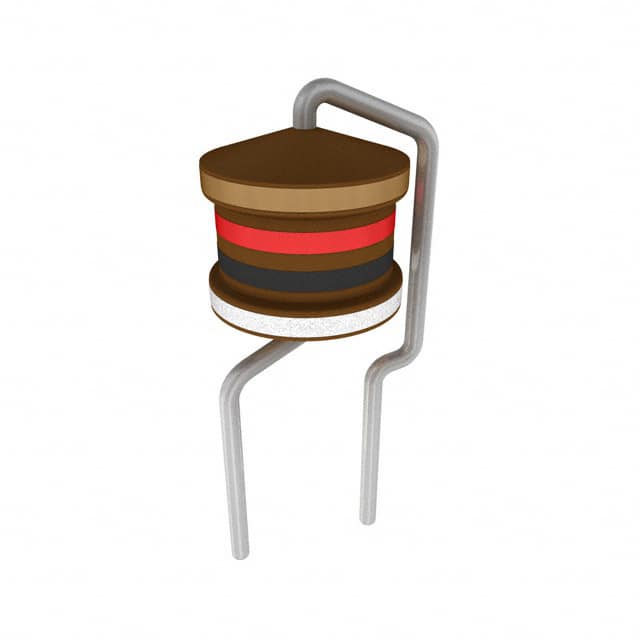

B82144B2123K000FIXED IND 12UH 2.4A 130 MOHM TH |
935 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.4 A | 2.65A | Unshielded | 130mOhm Max | 40 @ 252kHz | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
|
TMPA 1005SV-101MN-D100 UH SHIELDED MOLDED INDUCTOR |
655 |
|
Datasheet |
TMPA1005SV | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 100 µH | ±20% | 2 A | 2.4A | Shielded | 290mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
TMPC 1004HV-150MG-D15 UH SHIELDED MOLDED INDUCTOR S |
535 |
|
Datasheet |
TMPC1004HV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 15 µH | ±20% | 6.25 A | 10A | Unshielded | 45mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
VLS3015T-1R5N1R6FIXED IND 1.5UH 1.6A 74 MOHM SMD |
377 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 1.6 A | 1.6A | Shielded | 74mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015T-6R8MR86FIXED IND 6.8UH 860MA 211MOHM SM |
363 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 860 mA | 860mA | Shielded | 211mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015T-3R3M1R2FIXED IND 3.3UH 1.2A 112MOHM SMD |
229 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 1.2 A | 1.2A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
IHLP3232DZER1R5M5AINDUCT WW SNGL COIL MISC |
500 |
|
Datasheet |
IHLP-3232DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 15.5 A | 14A | Shielded | 7.25mOhm Max | - | 35MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
TMIM0503S-4R7MG-D02IND 4.7UH 26.4MOHM 8A |
785 |
|
Datasheet |
TMIM0503S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 4.7 µH | ±20% | 8 A | 8A | Unshielded | 26.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.118" (3.00mm) |
