Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMMA000606306R8MV1INDUCTOR POWER |
982 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|

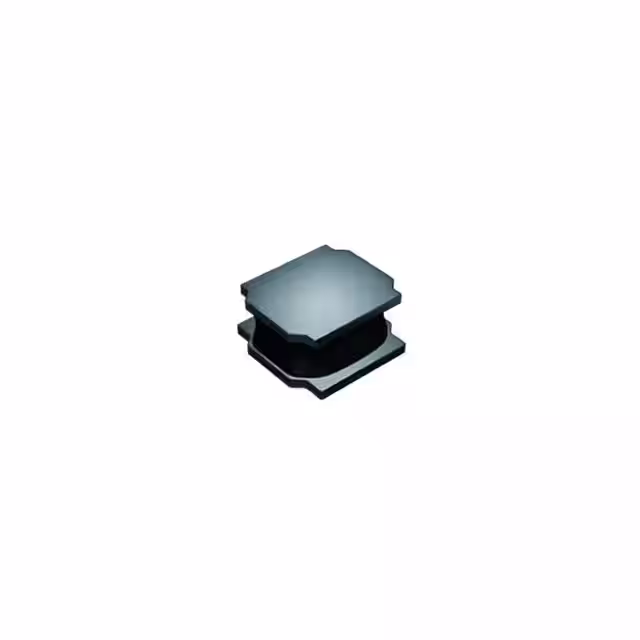

LSXBH8080YKL680MFIXED IND 68UH 1.1A 299 MOHM SMD |
980 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 68 µH | ±20% | 1.1 A | 1.2A | Shielded | 230mOhm | - | 7MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
TYS5020100M-10FIXED IND 10UH 1.55A 110MOHM SMD |
975 |
|
Datasheet |
TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.55 A | 1.7A | Shielded | 110mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
LSXBH8080YKL150MFIXED IND 15UH 2.4A 65 MOHM SMD |
924 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 2.4 A | 2.7A | Shielded | 50mOhm | - | 16MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
LSXBH8080YBL6R8NFIXED IND 6.8UH 3.7A 32.5MOHM SM |
878 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±30% | 3.7 A | 4A | Shielded | 25mOhm | - | 24MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
TYS6028101M-10FIXED IND 100UH 700MA 500MOHM SM |
841 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 700 mA | 650mA | Shielded | 500mOhm | - | 7.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
BMMA00060630100MX2INDUCTOR POWER |
782 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 4 A | 5.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|

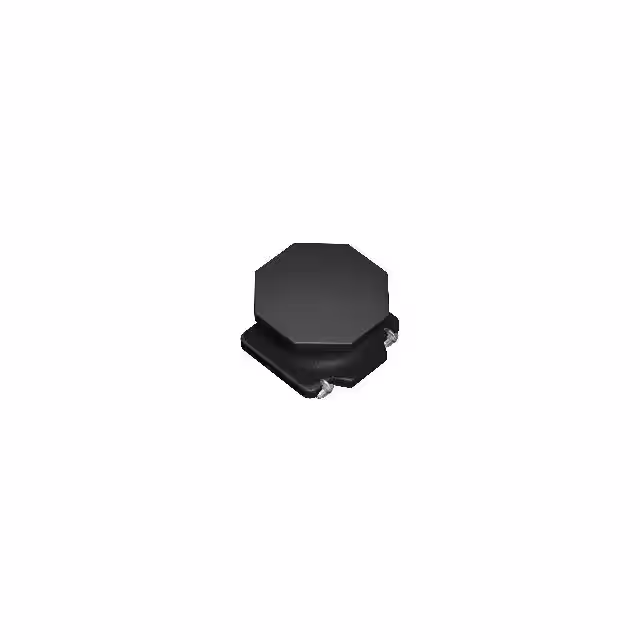

LSDND4040WKT220MMFIXED IND 22UH 1.2A 460 MOHM SMD |
624 |
|
- |
LSDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 22 µH | ±20% | 1.2 A | 1.5A | Shielded | 460mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
LCXND6060PKT2R2NMGFIXED IND 2.2UH 2.3A 66 MOHM SMD |
1,000 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 2.3 A | 3A | Unshielded | 55mOhm | - | 61MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
RLB1014-683KLFIXED IND 68MH 46MA 220 OHM TH |
990 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 46 mA | 56mA | Unshielded | 220Ohm Max | 35 @ 79.6kHz | 140kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.472" (12.00mm) |
|

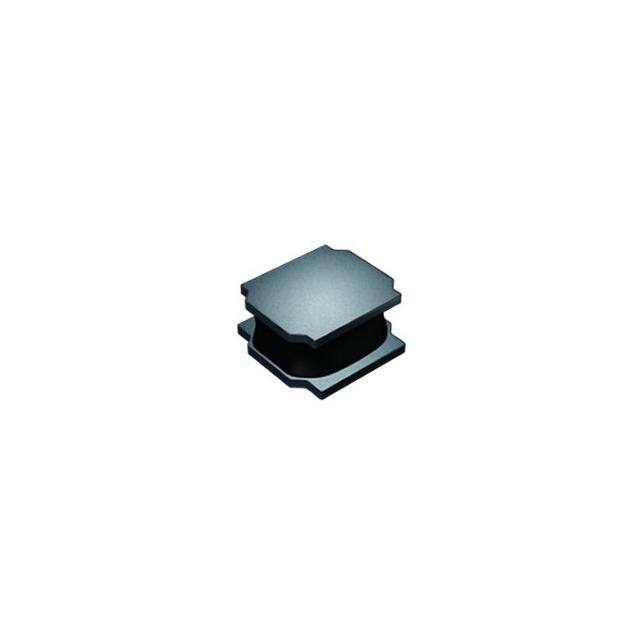

LSXBH8080YKL330MFIXED IND 33UH 1.7A 130 MOHM SMD |
924 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 1.9A | Shielded | 100mOhm | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
RLB1014-183KLIND8.7X12MM,18000UH10%.15A,NON-S |
900 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 96 mA | 100mA | Unshielded | 52Ohm Max | 45 @ 79.6kHz | 240kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
AWVC005050403R3M00INDUCTOR POWER |
850 |
|
Datasheet |
AWVC | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 3.7 A | 4.7A | Shielded | 26mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
RLB1314-100MLFIXED IND 10UH 3.2A 15 MOHM TH |
300 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.2 A | - | Unshielded | 15mOhm Max | 140 @ 2.52MHz | 26MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
LQH2HPZ4R7MJRLFIXED IND 4.7UH 1.29A 204MOHM SM |
196 |
|
Datasheet |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.29 A | 1.23A | Shielded | 204mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
46154CFIXED IND 150UH 720MA 720MOHM SM |
1,995 |
|
Datasheet |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 720 mA | - | Shielded | 720mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
SDCH1V8040-220M-RIND 22 UH 2.80A SMT |
1,955 |
|
Datasheet |
SDCH1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.5 A | 2.8A | Shielded | 81mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
SDCH1V8040-221M-RIND 220 UH 0.90A SMT |
1,000 |
|
Datasheet |
SDCH1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 750 mA | 900mA | Shielded | 782mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
SDCH1V8040-681M-RIND 680 UH 0.53A SMT |
1,000 |
|
Datasheet |
SDCH1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±20% | 420 mA | 530mA | Shielded | 2.53Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AWVC006060454R7M00INDUCTOR POWER |
1,000 |
|
Datasheet |
AWVC | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 3.6 A | 6.1A | Shielded | 30mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
