Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXND6060PKT4R7MMGFIXED IND 4.7UH 1.9A 108MOHM SMD |
1,000 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.9 A | 2A | Unshielded | 90mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
LCXND6060PKT1R2NMGFIXED IND 1.2UH 2.75A 50.4 MOHM |
995 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 µH | ±30% | 2.75 A | 4A | Unshielded | 42mOhm | - | 77MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
LQH32PB4R7NNCLFIXED IND 4.7UH 610MA 186MOHM SM |
830 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 610 mA | 1.6A | Shielded | 186mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSDND4040WKTR56NMFIXED IND 560NH 6.5A 16 MOHM SMD |
693 |
|
- |
LSDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 560 nH | ±30% | 6.5 A | 9A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
AWVS00606045102M00INDUCTOR POWER |
502 |
|
Datasheet |
AWVS | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 190 mA | 360mA | Shielded | 6Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
DRC-0406-681J-ULRADIAL INDUCTOR WITH LEADS, 680H |
490 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 170 mA | - | Unshielded | 4.6Ohm Max | 50 @ 796kHz | 1.3MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|
|
DRC-0406-471J-ULRADIAL INDUCTOR WITH LEADS, 470H |
490 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 200 mA | - | Unshielded | 3.6Ohm Max | 50 @ 796kHz | 1.7MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|
ASPI-0705-680K-TFIXED IND 68UH 850MA 280MOHM SMD |
1,982 |
|
Datasheet |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 850 mA | - | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
ASPI-0705-221K-TFIXED IND 220UH 490MA 960MOHM SM |
1,897 |
|
Datasheet |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 490 mA | - | Unshielded | 960mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
LCXND6060YEL100MMGFIXED IND 10UH 2.4A 59.8MOHM SMD |
988 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.4 A | 3.1A | Unshielded | 46mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCXND6060PKT220MMGFIXED IND 22UH 1A 360 MOHM SMD |
940 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1 A | 950mA | Unshielded | 300mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
|
ASPI-0705-560K-TFIXED IND 56UH 940MA 240MOHM SMD |
646 |
|
Datasheet |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 940 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
LQH43PN3R3M26LFIXED IND 3.3UH 2.1A 62.4MOHM SM |
492 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.1 A | 1.8A | Shielded | 62.4mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
TYS60204R7N-10FIXED IND 4.7UH 2A 58 MOHM SMD |
436 |
|
Datasheet |
TYS6020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 2 A | 3A | Shielded | 58mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|

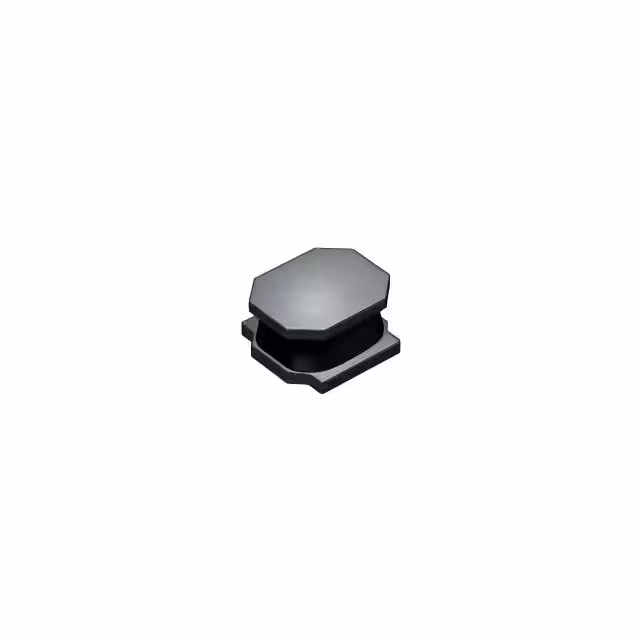

LCXND6060YEL470MMGFIXED IND 47UH 1.15A 274.3 MOHM |
300 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.15 A | 1.4A | Unshielded | 211mOhm | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQH43PN8R2M26LFIXED IND 8.2UH 1.3A 153.6 MOHM |
259 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.3 A | 1.1A | Shielded | 153.6mOhm Max | - | 25MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
48220SCFIXED IND 22UH 3.1A 53 MOHM SMD |
1,155 |
|
Datasheet |
4800S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.1 A | - | Shielded | 53mOhm Max | 31 @ 1MHz | 13MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.236" (6.00mm) |
|
|
LQH43MN6R8K03LFIXED IND 6.8UH 450MA 500MOHM SM |
1,000 |
|
Datasheet |
LQH43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 30 @ 1MHz | 31MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
WLPMA0A040M4R7LCPOWER CHOKE MOLDED 4.7UH 15A |
980 |
|
Datasheet |
PM | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 8.5 A | 15A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRN4018BTA-220MIND,4X4X1.6MM,22UH20%,0.72A,SHD |
667 |
|
Datasheet |
SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 720 mA | 900mA | Shielded | 290mOhm | 10 @ 100kHz | 15MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
