Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC322522A-1R0KFIXED IND 1UH 1.45A 156 MOHM SMD |
889 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±10% | 1.45 A | 1.35A | Unshielded | 156mOhm Max | 8 @ 7.96MHz | 100MHz | AEC-Q200 | -40°C ~ 150°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
LQH43MN180J03LFIXED IND 18UH 340MA 820MOHM SMD |
880 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 340 mA | - | Unshielded | 820mOhm Max | 35 @ 1MHz | 17MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
45473CFIXED IND 47UH 1.05A 360MOHM SMD |
825 |
|
Datasheet |
4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.05 A | - | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
|
LQH43MN150J03LFIXED IND 15UH 360MA 730MOHM SMD |
706 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 360 mA | - | Unshielded | 730mOhm Max | 35 @ 1MHz | 19MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
45333CFIXED IND 33UH 1.25A 250MOHM SMD |
680 |
|
Datasheet |
4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.25 A | - | Shielded | 250mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
|
LQH43MN820J03LFIXED IND 82UH 170MA 2.2 OHM SMD |
500 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 170 mA | - | Unshielded | 2.2Ohm Max | 35 @ 1MHz | 7.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN561J03LFIXED IND 560UH 70MA 14.5OHM SMD |
485 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 70 mA | - | Unshielded | 14.5Ohm Max | 40 @ 796kHz | 2.7MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN151J03LFIXED IND 150UH 130MA 3.7OHM SMD |
195 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 130 mA | - | Unshielded | 3.7Ohm Max | 40 @ 796kHz | 5.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN470J03LFIXED IND 47UH 220MA 1.5 OHM SMD |
165 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 220 mA | - | Unshielded | 1.5Ohm Max | 35 @ 1MHz | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
AIUR-03-330KFIXED IND 33UH 1.1A 90 MOHM TH |
2,000 |
|
Datasheet |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.1 A | 1.6A | Unshielded | 90mOhm Max | 30 @ 2.52MHz | 7.8MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
BMMA000606301R0MV1INDUCTOR POWER |
1,901 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
BMMA000606304R7MV1INDUCTOR POWER |
1,306 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
29103CFIXED IND 10UH 1.8A 45 MOHM SMD |
1,135 |
|
Datasheet |
2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | - | 1.8 A | - | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
|
29472CFIXED IND 4.7UH 2.3A 30 MOHM SMD |
1,000 |
|
Datasheet |
2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | - | 2.3 A | - | Shielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
|
AIUR-03-331KFIXED IND 330UH 390MA 850MOHM TH |
1,000 |
|
Datasheet |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 390 mA | 540mA | Unshielded | 850mOhm Max | 20 @ 796kHz | 2.3MHz | - | -25°C ~ 85°C | 796 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
LCXND6060KKT4R7MMGFIXED IND 4.7UH 1.4A 198MOHM SMD |
1,000 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.4 A | 1.3A | Unshielded | 165mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|

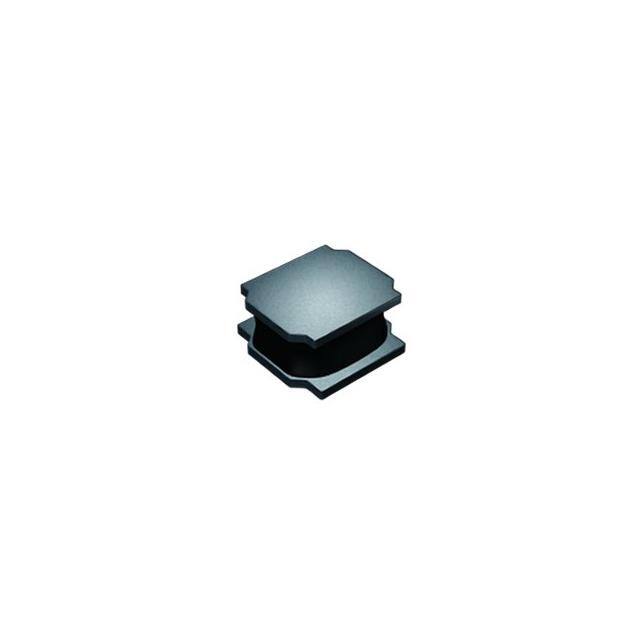

LSXBH8080YBL3R6NFIXED IND 3.6UH 4.9A 19.5MOHM SM |
1,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | 5.3A | Shielded | 15mOhm | - | 34MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

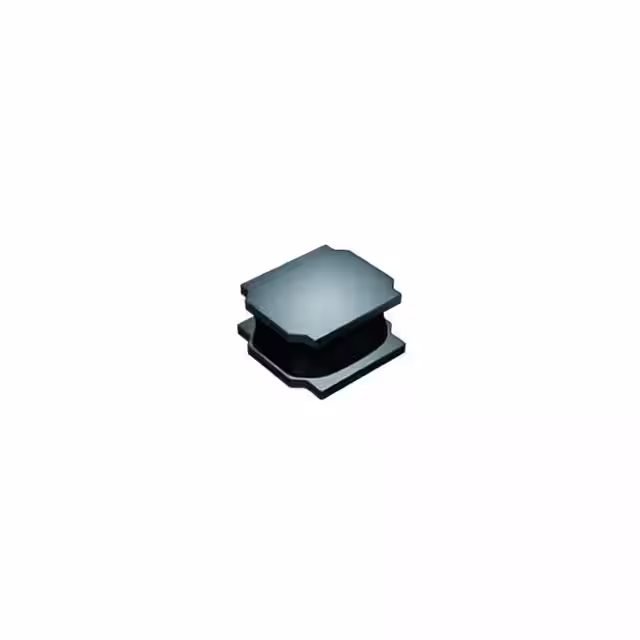

LSXBH8080YBL2R0NFIXED IND 2UH 6.3A 11.7 MOHM SMD |
1,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2 µH | ±30% | 6.3 A | 7.4A | Shielded | 9mOhm | - | 50MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
LSXBH8080YKL470MFIXED IND 47UH 1.4A 195 MOHM SMD |
1,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 1.5A | Shielded | 150mOhm | - | 8MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
LSXBH8080YBL4R7NFIXED IND 4.7UH 4.1A 23.4MOHM SM |
1,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 4.7A | Shielded | 18mOhm | - | 30MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
