Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLB0912-1R5MLFIXED IND 1.5UH 6A 8 MOHM TH |
200 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6 A | 8A | Unshielded | 8mOhm Max | 30 @ 7.96MHz | 78MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
LCXND5050XAT1R0NMGFIXED IND 1UH 4A 19.5 MOHM SMD |
969 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 4 A | 6.6A | Unshielded | 15mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
234R7CFIXED IND 4.7UH 1.48A 68MOHM SMD |
691 |
|
Datasheet |
2300 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | - | 1.48 A | - | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
LQH43MN330K03LFIXED IND 33UH 270MA 1.2 OHM SMD |
500 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 270 mA | - | Unshielded | 1.2Ohm Max | 35 @ 1MHz | 12MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43CN1R8M33LFIXED IND 1.8UH 2.3A 55 MOHM SMD |
500 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 2.3 A | - | Unshielded | 55mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
LCXND5050XATR47NMGFIXED IND 470NH 5A 13 MOHM SMD |
500 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±30% | 5 A | 9A | Unshielded | 10mOhm | - | 185MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
|
LQH43CN2R2M33LFIXED IND 2.2UH 2.1A 61 MOHM SMD |
484 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.1 A | - | Unshielded | 61mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN152K03LFIXED IND 1.5MH 40MA 37 OHM SMD |
479 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 40 mA | - | Unshielded | 37Ohm Max | 40 @ 252kHz | 1.6MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN821K03LFIXED IND 820UH 60MA 20.5OHM SMD |
440 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 60 mA | - | Unshielded | 20.5Ohm Max | 40 @ 796kHz | 2.2MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN270K03LFIXED IND 27UH 300MA 1.1 OHM SMD |
420 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 300 mA | - | Unshielded | 1.1Ohm Max | 35 @ 1MHz | 14MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN820K03LFIXED IND 82UH 170MA 2.2 OHM SMD |
400 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 170 mA | - | Unshielded | 2.2Ohm Max | 35 @ 1MHz | 7.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN151K03LFIXED IND 150UH 130MA 3.7OHM SMD |
400 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 130 mA | - | Unshielded | 3.7Ohm Max | 40 @ 796kHz | 5.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

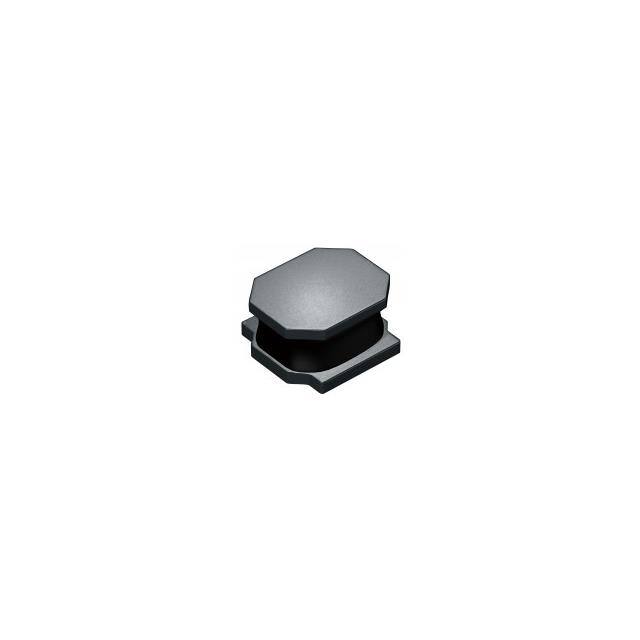

LCXND5050XAT3R3MMGFIXED IND 3.3UH 3A 39 MOHM SMD |
400 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 3 A | 3.6A | Unshielded | 30mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
|
LQH43MN681K03LFIXED IND 680UH 65MA 17 OHM SMD |
325 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 65 mA | - | Unshielded | 17Ohm Max | 40 @ 796kHz | 2.5MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN220K03LFIXED IND 22UH 320MA 940MOHM SMD |
266 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 320 mA | - | Unshielded | 940mOhm Max | 35 @ 1MHz | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN560K03LFIXED IND 56UH 200MA 1.7 OHM SMD |
255 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 200 mA | - | Unshielded | 1.7Ohm Max | 35 @ 1MHz | 9.3MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN181J03LFIXED IND 180UH 120MA 4.5OHM SMD |
1,251 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 120 mA | - | Unshielded | 4.5Ohm Max | 40 @ 796kHz | 5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
LCXND5050WKTR47NMGFIXED IND 470NH 5A 14.4 MOHM SMD |
1,100 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±30% | 5 A | 6.1A | Unshielded | 12mOhm | - | 230MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
LCXND5050PKT100MMGFIXED IND 10UH 1.05A 240MOHM SMD |
1,000 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.05 A | 1.4A | Unshielded | 200mOhm | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LCXND5050PKT2R2NMGFIXED IND 2.2UH 2A 78 MOHM SMD |
1,000 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 2 A | 2.8A | Unshielded | 65mOhm | - | 56MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
