Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43CN680K03LFIXED IND 68UH 220MA 1.7 OHM SMD |
500 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 220 mA | - | Unshielded | 1.7Ohm Max | - | 8.4MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
LSXNH8080XKL3R3MJGFIXED IND 3.3UH 4.3A 19 MOHM SMD |
999 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 4.3 A | 4.2A | Shielded | 24.7mOhm Max | - | 50MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

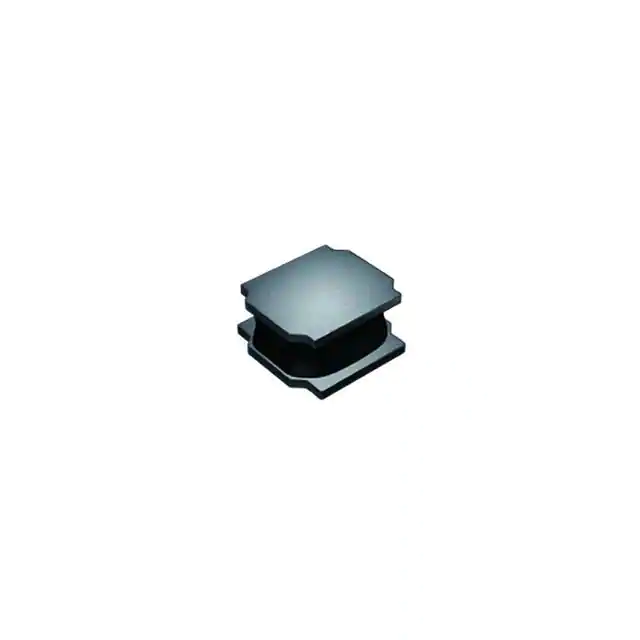

LSXNH8080XKL330MJGFIXED IND 33UH 1.5A 156 MOHM SMD |
993 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.3A | Shielded | 156mOhm Max | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
BWVS00606045221M00INDUCTOR POWER |
973 |
|
Datasheet |
BWVS | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 340 mA | 730mA | Shielded | 1.3Ohm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
LSXNH8080XKL470MJGFIXED IND 47UH 1.3A 221 MOHM SMD |
955 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.1A | Shielded | 221mOhm Max | - | 11MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LSXNH8080XKL1R0NJGFIXED IND 1UH 6.2A 11.7 MOHM SMD |
850 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 6.2 A | 7.8A | Shielded | 11.7mOhm Max | - | 120MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

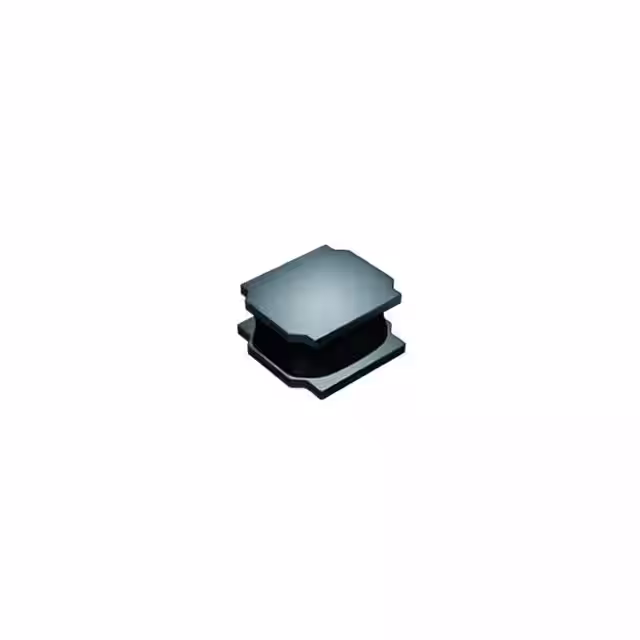

LSXNH8080XKL2R2NJGFIXED IND 2.2UH 4.8A 19.5MOHM SM |
497 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 4.8 A | 4.9A | Shielded | 19.5mOhm Max | - | 60MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
LQH43CN471K03LFIXED IND 470UH 90MA 8.5 OHM SMD |
138 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 90 mA | - | Unshielded | 8.5Ohm Max | - | 3MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
BWVC006060454R7M00INDUCTOR POWER |
1,950 |
|
Datasheet |
BWVC | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 3.6 A | 6.12A | Shielded | 30mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
BWVC006060456R8M00INDUCTOR POWER |
1,950 |
|
Datasheet |
BWVC | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 2.97 A | 5.13A | Shielded | 42mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
BWVC00606045220M00INDUCTOR POWER |
1,945 |
|
Datasheet |
BWVC | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.71 A | 2.97A | Shielded | 130mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
BWVC00606045100M00INDUCTOR POWER |
1,940 |
|
Datasheet |
BWVC | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 2.34 A | 4.14A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
BWVC006060452R2M00INDUCTOR POWER |
1,330 |
|
Datasheet |
BWVC | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 4.68 A | 8.55A | Shielded | 18mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
LQH3NPZ220MMELFIXED IND 22UH 540MA 480MOHM SMD |
883 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 860 mA | - | Shielded | 480mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQH3NPZ1R0MMELFIXED IND 1UH 1.6A 30 MOHM SMD |
451 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3 A | - | Shielded | 30mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
TFM141208BLE-R33MTCAIND 330NH 4.9A 25MOHM -40~125 |
370 |
|
Datasheet |
TFM-BLE | 0505 (1412 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 4.4 A | 4.5A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 0505 | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.031" (0.80mm) |
|
LCXND5050MKT2R2MMGFIXED IND 2.2UH 2A 102 MOHM SMD |
1,000 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 2 A | 3.1A | Unshielded | 85mOhm | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
LCXND5050KKT4R7MMGFIXED IND 4.7UH 1.15A 174MOHM SM |
1,000 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.15 A | 1.2A | Unshielded | 145mOhm | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
|
IFSC3232DBER101M02SEMI-SHIELDED INDUCTOR 100UH 1. |
500 |
|
Datasheet |
IFSC-3232DB-02 | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.1 A | 1.3A | Semi-Shielded | 377mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
LCXND5050WKT220MMGFIXED IND 22UH 1A 312 MOHM SMD |
242 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 900 mA | 1.1A | Unshielded | 312mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
