Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLB0712-121KLFIXED IND 120UH 300MA 450MOHM TH |
390 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 300 mA | - | Unshielded | 450mOhm Max | 20 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
CM453232-271JLFIXED IND 270UH 92MA 12 OHM SMD |
155 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±5% | 92 mA | - | Unshielded | 12Ohm Max | 40 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
LSXND5050MKT4R7MMGFIXED IND 4.7UH 1.4A 216MOHM SMD |
1,100 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.4 A | 2.2A | Shielded | 216mOhm Max | - | 40MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
LSXND5050PKT2R2NMGFIXED IND 2.2UH 2A 78 MOHM SMD |
990 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 2 A | 2.8A | Shielded | 78mOhm Max | - | 56MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LSXND5050PKT100MMGFIXED IND 10UH 1.05A 240MOHM SMD |
895 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.05 A | 1.4A | Shielded | 240mOhm Max | - | 27MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|

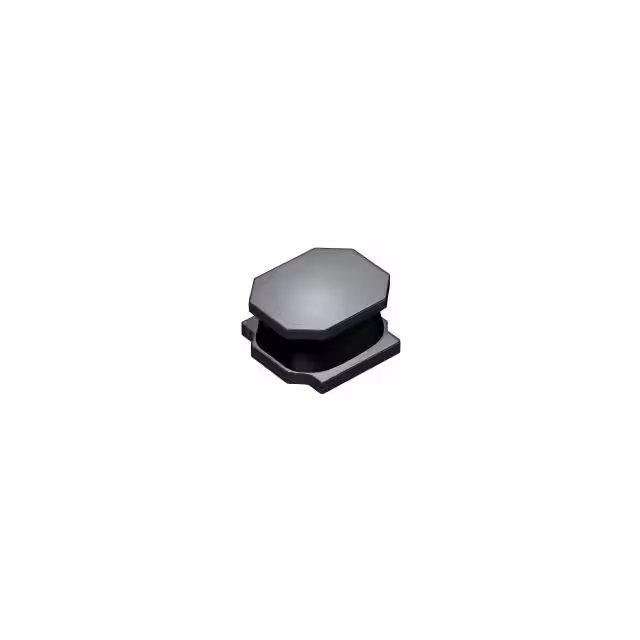

LCXND4040TKL3R3MDGFIXED IND 3.3UH 2A 66 MOHM SMD |
888 |
|
Datasheet |
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.3A | Unshielded | 55mOhm | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LSXND6060PKT100MMGFIXED IND 10UH 1.5A 168 MOHM SMD |
740 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.4 A | 1.4A | Shielded | 168mOhm Max | - | 24MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
LSXND6060PKT2R2NMGFIXED IND 2.2UH 2.6A 66 MOHM SMD |
696 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 2.3 A | 3A | Shielded | 66mOhm Max | - | 61MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
LSXND6060WKL6R8NMGFIXED IND 6.8UH 1.8A 102MOHM SMD |
455 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 1.8 A | 2A | Shielded | 102mOhm Max | - | 30MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
IDCP3020ER180M01FIXED INDUCTOR 18UH 1.6A 100 MO |
1,000 |
|
Datasheet |
IDCP-3020 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 18 µH | ±20% | 1.6 A | - | Semi-Shielded | 100mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
IDCP3020ER101M01FIXED INDUCTOR 100UH .72A 430 M |
1,000 |
|
Datasheet |
IDCP-3020 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 720 mA | - | Semi-Shielded | 430mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
IDCP3020ER221K01FIXED INDUCTOR 220UH .49A 960 M |
1,000 |
|
Datasheet |
IDCP-3020 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±10% | 490 mA | - | Semi-Shielded | 960mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
RLB0812-273KLFIXED IND 27MH 22MA 102 OHM TH |
830 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 mH | ±10% | 22 mA | - | Unshielded | 102Ohm Max | 60 @ 79.6kHz | 200kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
SRN2510BTA-150MFIXED IND 15UH 800MA 0.924OHM SM |
590 |
|
Datasheet |
SRN2510BTA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 800 mA | 620mA | Shielded | 924mOhm Max | 10 @ 1MHz | 20MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AOTA-B201206S1R0MTIND 1UH 2.4A 86MOHM |
115 |
|
Datasheet |
AOTA-B201206S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 2.4 A | 2.5A | Shielded | 86mOhm Max | - | 53MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.026" (0.65mm) |
|
LSXNH8080YKL220MJGFIXED IND 22UH 2.2A 85.8MOHM SMD |
1,622 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 2.4A | Shielded | 85.8mOhm Max | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
744761218AWE-KI SMT WIRE WOUND CERAMIC IND |
968 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 180 nH | ±5% | 240 mA | - | Unshielded | 1.25Ohm Max | 30 @ 100MHz | 1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
744760212AWE-KI SMT WIRE WOUND CERAMIC IND |
928 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 120 nH | ±5% | 500 mA | - | Unshielded | 480mOhm Max | 50 @ 250MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|

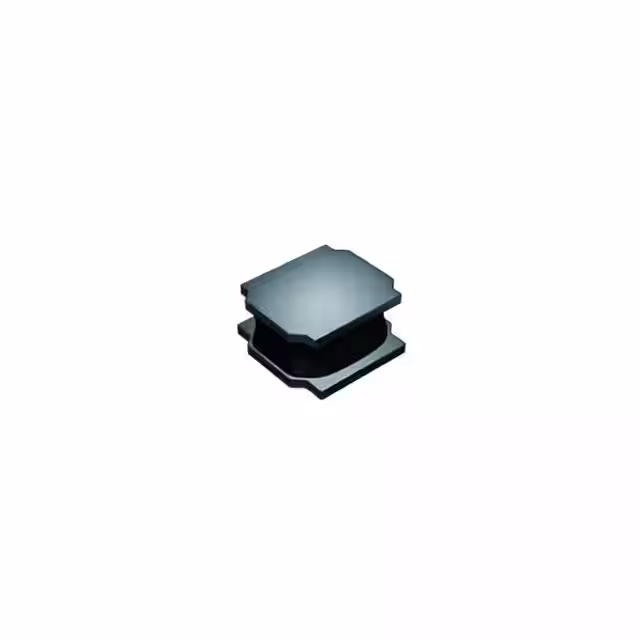

LSXNH8080YBL3R6NJGFIXED IND 3.6UH 4.9A 19.5MOHM SM |
918 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | 6.4A | Shielded | 19.5mOhm Max | - | 34MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
744760139AWE-KI SMT WIRE WOUND CERAMIC IND |
850 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 39 nH | ±5% | 500 mA | - | Unshielded | 180mOhm Max | 60 @ 500MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
