Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXND5050XAT2R2NMGFIXED IND 2.2UH 3.5A 23 MOHM SMD |
500 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | 4.2A | Shielded | 29.9mOhm Max | - | 46MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
LSXND5050XKT220MMGFIXED IND 22UH 1.05A 180MOHM SMD |
483 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.05 A | 1.4A | Shielded | 234mOhm Max | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
LSXND5050XAT6R8MMGFIXED IND 6.8UH 2.3A 52 MOHM SMD |
483 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 2.3 A | 2.5A | Shielded | 67.6mOhm Max | - | 22MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
LSXND6060KKT2R2MMGFIXED IND 2.2UH 1.7A 132MOHM SMD |
1,000 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.9A | Shielded | 132mOhm Max | - | 56MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
HTEH20120H-R11MSTRIND SMD 0.11UH HOT PRESSED CHOKE |
1,000 |
|
Datasheet |
HTEH20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 110 nH | ±20% | 5.5 A | 6.8A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
LSXND6060KKT100MMGFIXED IND 10UH 1.1A 324 MOHM SMD |
999 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 1A | Shielded | 324mOhm Max | - | 25MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
LSXND6060MKT150MMGFIXED IND 15UH 800MA 354MOHM SMD |
990 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 800 mA | 800mA | Shielded | 354mOhm Max | - | 18MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
HTEH20120H-2R2MSRIND SMD 2.2UH HOT PRESSED CHOKE |
942 |
|
Datasheet |
HTEH20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 1.6 A | 1.9A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
744760027AWE-KI SMT WIRE WOUND CERAMIC IND |
640 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.7 nH | ±0.2nH | 800 mA | - | Unshielded | 80mOhm Max | 35 @ 1GHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
LSXND5050XKT150MMGFIXED IND 15UH 1.4A 125 MOHM SMD |
547 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.4 A | 1.6A | Shielded | 162.5mOhm Max | - | 14MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
|
744760222AWE-KI SMT WIRE WOUND CERAMIC IND |
400 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 220 nH | ±5% | 400 mA | - | Unshielded | 1Ohm Max | 50 @ 250MHz | 860MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|

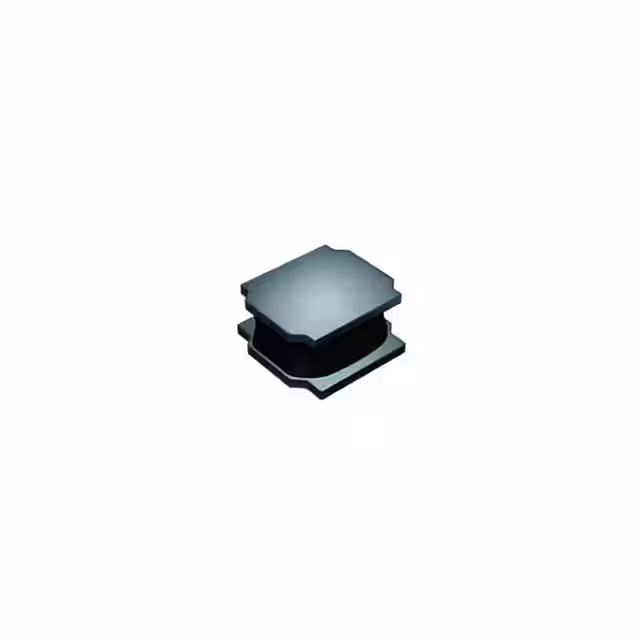

LSXBD3030QKT6R8MFIXED IND 6.8UH 880MA 192MOHM SM |
1,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 880 mA | 870mA | Shielded | 160mOhm | - | 36MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LD2-122-HVIND DRUM CORE 1200UH 0.33A |
984 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 mH | ±20% | 400 mA | 330mA | Unshielded | 4.5Ohm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
LD2-471-HVIND DRUM CORE 470UH 0.53A |
925 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 670 mA | 530mA | Unshielded | 1.9Ohm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
LD2-152-HVIND DRUM CORE 1500UH 0.31A |
776 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 mH | ±20% | 360 mA | 310mA | Unshielded | 5.5Ohm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|

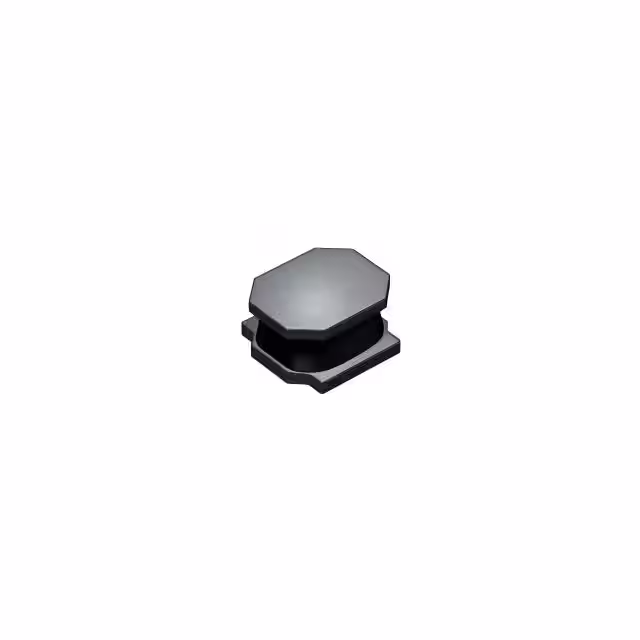

LSXND6060WHL101MMGFIXED IND 100UH 660MA 780MOHM SM |
558 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 660 mA | 650mA | Shielded | 780mOhm Max | - | 3MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
LD2-681-HVIND DRUM CORE 680UH 0.44A |
226 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±20% | 530 mA | 440mA | Unshielded | 2.5Ohm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
LD2-821-HVIND DRUM CORE 820UH 0.41A |
211 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 820 µH | ±20% | 500 mA | 410mA | Unshielded | 3.2Ohm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
LD2-561-HVIND DRUM CORE 560UH 0.5A |
196 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 µH | ±20% | 610 mA | 500mA | Unshielded | 2Ohm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
AC4842R-82NKIND AIR COIL 82NH 2.5A |
1,905 |
|
Datasheet |
AC4842R | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 82 nH | ±10% | 2.5 A | - | Unshielded | 9.4mOhm Max | 100 @ 150MHz | 1.3GHz | - | -25°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
