Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH32DN471K23LFIXED IND |
400 |
|
Datasheet |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±10% | 60 mA | - | Unshielded | 24.7Ohm Max | - | 5MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
LSXND5050WKT4R7MMGFIXED IND 4.7UH 2A 72 MOHM SMD |
148 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 2 A | 2A | Shielded | 72mOhm Max | - | 37MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
|
AOTA-B201608S1R0MTFIXED IND 1.0UH 3.7A 52MOHM SMD |
980 |
|
Datasheet |
AOTA-B201608S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.7 A | 4.1A | Shielded | 52mOhm Max | - | 57MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
LD2-101-HVIND DRUM CORE 100UH 0.8A |
955 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | - | 800mA | Unshielded | 380mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|

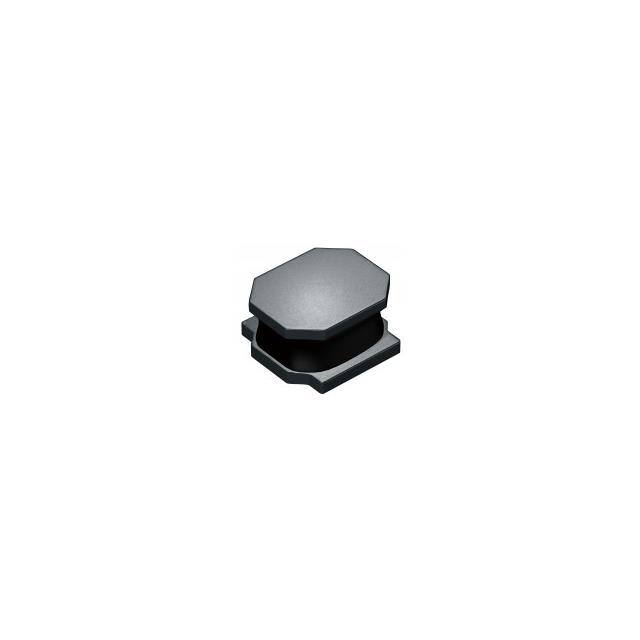

LSXND5050WEL1R5NMGFIXED IND 1.5UH 3.6A 22 MOHM SMD |
919 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 3.6 A | 5.2A | Shielded | 26.4mOhm Max | - | 67MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.098" (2.50mm) |
|
LSXND5050WDL3R3NMGFIXED IND 3.3UH 2.4A 43 MOHM SMD |
890 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 2.4 A | 3.1A | Shielded | 51.6mOhm Max | - | 41MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
LSXND5050YKL220MMGFIXED IND 22UH 1.4A 163.8MOHM SM |
778 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.5A | Shielded | 163.8mOhm Max | - | 9MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
LSXND5050WEL1R0NMGFIXED IND 1UH 4.4A 16 MOHM SMD |
650 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 4.4 A | 5.8A | Shielded | 19.2mOhm Max | - | 85MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.098" (2.50mm) |
|

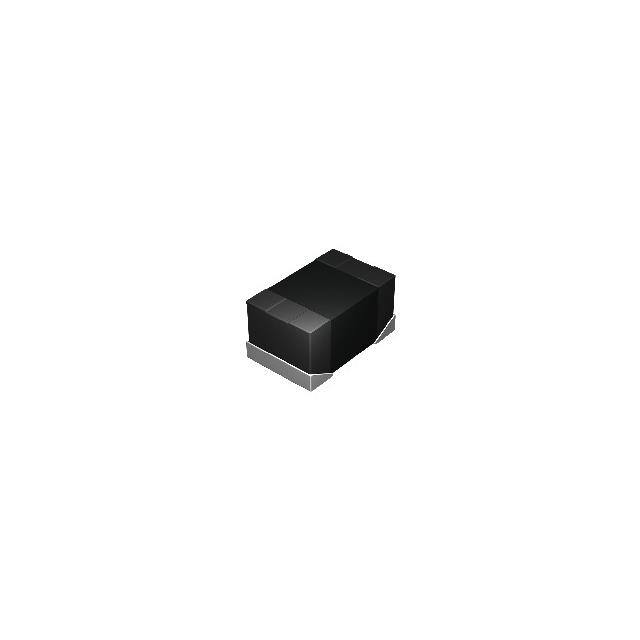

LSBHB1608KKT4R7MGFIXED IND 4.7UH 500MA 730MOHM SM |
260 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 500 mA | 370mA | Unshielded | 730mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
NLV32T-390J-EFDFIXED IND 39UH 65MA 6.4 OHM SMD |
200 |
|
Datasheet |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±5% | 65 mA | - | Unshielded | 6.4Ohm Max | 30 @ 2.52MHz | 16MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LSXND6060MKT330MMGFIXED IND 33UH 550MA 696MOHM SMD |
1,000 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 550 mA | 590mA | Shielded | 696mOhm Max | - | 8MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LSXND6060MKT470MMGFIXED IND 47UH 460MA 1.158OHM SM |
1,000 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 460 mA | 520mA | Shielded | 1.158Ohm Max | - | 6MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LSXND5050XAT1R0NMGFIXED IND 1UH 4A 19.5 MOHM SMD |
1,000 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 4 A | 6.6A | Shielded | 19.5mOhm Max | - | 110MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
|
LD2-220-HVIND DRUM CORE 22UH 2.0A |
1,000 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | - | 2A | Unshielded | 100mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
LD2-470-HVIND DRUM CORE 47UH 1.2A |
1,000 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | - | 1.2A | Unshielded | 200mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
LSXND6060MKT100MMGFIXED IND 10UH 1.2A 240 MOHM SMD |
999 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1A | Shielded | 240mOhm Max | - | 22MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
LD2-221-HVIND DRUM CORE 220UH 0.5A |
970 |
|
Datasheet |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | - | 500mA | Unshielded | 750mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
LQH32CN3R3M53LFIXED IND 3.3UH 710MA 156MOHM SM |
967 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 710 mA | - | Unshielded | 156mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQH32CN331K23LFIXED IND 330UH 60MA 13 OHM SMD |
865 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 60 mA | - | Unshielded | 13Ohm Max | - | 5.6MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSQPB160807T1R0MFIXED IND 1UH 650MA 299 MOHM SMD |
757 |
|
Datasheet |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 650 mA | 510mA | Unshielded | 299mOhm Max | - | 700MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
