Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744764904FIXED IND 4.7UH 800MA 520MOHM SM |
1,046 |
|
Datasheet |
WE-GFH | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 800 mA | - | Unshielded | 520mOhm Max | 15 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
RLB0608-470KLFIXED IND 47UH 370MA 1 OHM TH |
956 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 370 mA | - | Unshielded | 1Ohm Max | 50 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
7447649015FIXED IND 1.5UH 1.4A 195MOHM SMD |
931 |
|
Datasheet |
WE-GFH | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 1.4 A | - | Unshielded | 195mOhm Max | 15 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
7447669139FIXED IND 39UH 460MA 1.35OHM SMD |
784 |
|
Datasheet |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 39 µH | ±10% | 460 mA | - | Unshielded | 1.6Ohm Max | 30 @ 2.52MHz | 14.5MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
RLB0608-8R2KLFIXED IND 8.2UH 590MA 400MOHM TH |
721 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 590 mA | - | Unshielded | 400mOhm Max | 60 @ 7.96MHz | 25MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|

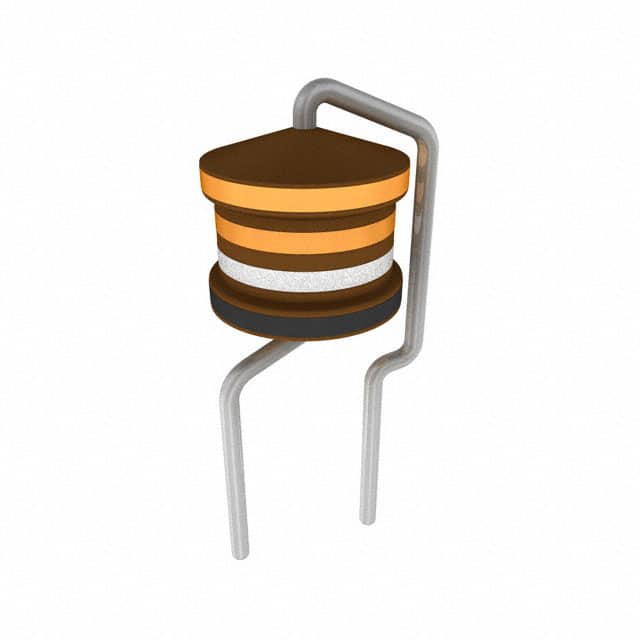

B78148E1331M000FIXED IND 330NH 5.3A 23 MOHM TH |
660 |
|
Datasheet |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 5.3 A | 10.1A | Unshielded | 23mOhm Max | 60 @ 7.96MHz | 480MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
RLB0812-681KLFIXED IND 680UH 140MA 2.9 OHM TH |
639 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 140 mA | - | Unshielded | 2.9Ohm Max | 45 @ 796kHz | 1.7MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
RLB0608-101KLFIXED IND 100UH 305MA 1.7 OHM TH |
549 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 305 mA | - | Unshielded | 1.7Ohm Max | 50 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
VLS201610ET-R47NFIXED IND 470NH 1.85A 65MOHM SMD |
512 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 1.85 A | 1.85A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
7447649168FIXED IND 68UH 225MA 8.45OHM SMD |
509 |
|
Datasheet |
WE-GFH | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 68 µH | ±10% | 225 mA | - | Unshielded | 8.45Ohm Max | 40 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
744766901FIXED IND 1UH 1.9A 90 MOHM SMD |
500 |
|
Datasheet |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±10% | 1.9 A | - | Unshielded | 110mOhm Max | 15 @ 7.96MHz | 265MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
VLS4012CX-6R8M-1FIXED IND 6.8UH SMD |
470 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
ASPI-0312FS-3R3M-T2FIXED IND 3.3UH 1.05A 100MOHM SM |
268 |
|
Datasheet |
ASPI-0312FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.05 A | 910mA | Shielded | 100mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
RLB0812-222JLFIXED IND 2.2MH 80MA 8 OHM TH |
149 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 80 mA | - | Unshielded | 8Ohm Max | 60 @ 252kHz | 750kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
ASPI-0628-3R0N-T1FIXED IND 3UH 3.4A 23 MOHM SMD |
1,749 |
|
Datasheet |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±30% | 3.4 A | 3.6A | Shielded | 23mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
VLS4020CX-1R5M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,605 |
|
Datasheet |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 2.88 A | 3.4A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
SPH252012HR68MTFIXED IND 680NH 2.1A 61MOHM SMD |
1,000 |
|
Datasheet |
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 2.1 A | 3.3A | Shielded | 61mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SDCH1V6045-1R0N-RIND 1.0 UH 12.8A SMT |
1,000 |
|
Datasheet |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 6 A | 12.8A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

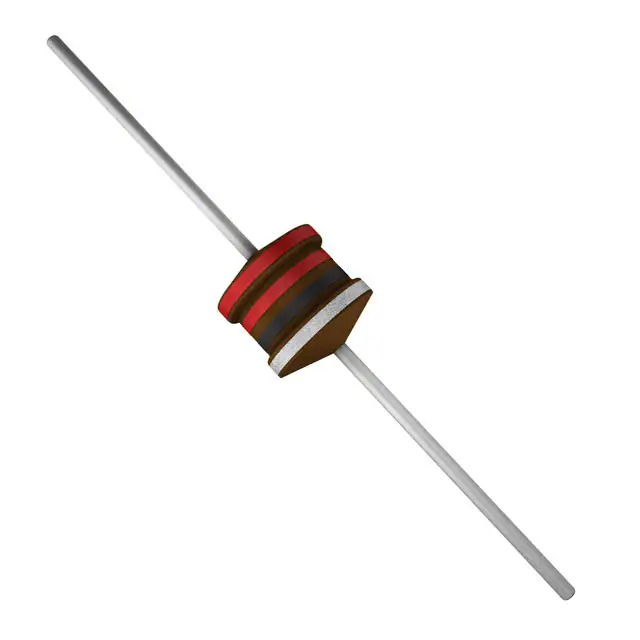

B78108E1223K000FIXED IND 22UH 1.3A 350 MOHM TH |
875 |
|
Datasheet |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.3 A | 1.25A | Unshielded | 350mOhm Max | 40 @ 796kHz | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
|
SDCH1V6045-4R7M-RIND 4.7 UH 6.70A SMT |
238 |
|
Datasheet |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 3.6 A | 6.7A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
