Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQW2UAS1R0G0CLFIXED IND 1UH 370MA 1.75 OHM SMD |
142 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 1 µH | ±2% | 370 mA | - | Unshielded | 1.75Ohm Max | 35 @ 50MHz | 290MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
LSXND6060KKT220MMGFIXED IND 22UH 700MA 580MOHM SMD |
1,969 |
|
Datasheet |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 650mA | Shielded | 696mOhm Max | - | 12MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
NRS6010T6R8MMGFFIXED IND 6.8UH 1.2A 264MOHM SMD |
1,233 |
|
- |
NR, S Type | 2304 (6010 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.2 A | 1.2A | Shielded | 264mOhm Max | - | 30MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
WCLA1608V1-8R2-RFIXED IND 8.2NH 700MA 120MOHM SM |
1,000 |
|
Datasheet |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 8.2 nH | ±5% | 700 mA | - | Unshielded | 120mOhm Max | 28 @ 250MHz | 4.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
WCLA1608V1-271-RFIXED IND 270NH 170MA 2.3OHM SMD |
1,000 |
|
Datasheet |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 270 nH | ±5% | 170 mA | - | Unshielded | 2.3Ohm Max | 24 @ 100MHz | 900MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
NRS6010T1R5MMGFFIXED IND 1.5UH 1.9A 108MOHM SMD |
990 |
|
- |
NR, S Type | 2304 (6010 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.9 A | 2.4A | Shielded | 108mOhm Max | - | 77MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
AISC-0805HQ-27NJ-TFIXED IND 27NH 1.3A 70 MOHM SMD |
818 |
|
Datasheet |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 1.3 A | - | Unshielded | 70mOhm Max | 75 @ 500MHz | 2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WCLA1608V1-3R3-RFIXED IND 3.3NH 700MA 75MOHM SMD |
770 |
|
Datasheet |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 nH | ±10% | 700 mA | - | Unshielded | 75mOhm Max | 20 @ 250MHz | 5.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
AISC-0805HQ-18NJ-TFIXED IND 18NH 1.4A 60 MOHM SMD |
727 |
|
Datasheet |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 1.4 A | - | Unshielded | 60mOhm Max | 75 @ 500MHz | 2.55GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WCLA1608V1-471-RFIXED IND 470NH 75MA 7 OHM SMD |
715 |
|
Datasheet |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±5% | 75 mA | - | Unshielded | 7Ohm Max | 25 @ 100MHz | 700MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
AISC-0805HQ-39NJ-TFIXED IND 39NH 1.1A 110 MOHM SMD |
637 |
|
Datasheet |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 1.1 A | - | Unshielded | 110mOhm Max | 65 @ 500MHz | 1.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
E.JPG)
|
VLS2010ET-4R7MFIXED IND 4.7UH 700MA 408MOHM SM |
454 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 4.7 µH | ±20% | 700 mA | 700mA | Shielded | 408mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|
VLS252010HBX-R68M-1FIXED IND 680NH 2.98A 48MOHM SMD |
309 |
|
Datasheet |
VLS-HBX-1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 2.98 A | 3.62A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LSXND6060KKT6R8MMGFIXED IND 6.8UH 1.2A 264MOHM SMD |
1,937 |
|
Datasheet |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.2 A | 1.2A | Shielded | 264mOhm Max | - | 30MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
AISM-1812-220K-TFIXED IND 22UH 180MA 3.2 OHM SMD |
1,052 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

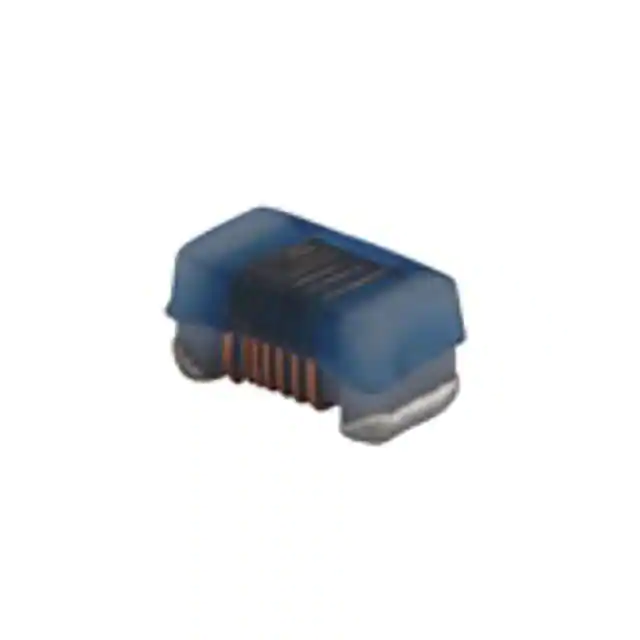

WCLA1005V1-100-RFIXED IND 10NH 480MA 200MOHM SMD |
1,000 |
|
Datasheet |
WCLA1005V1 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 nH | ±5% | 480 mA | - | Unshielded | 200mOhm Max | 25 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.60mm) |
|
|
WCLA1005V1-3R6-RFIXED IND 3.6NH 840MA 66MOHM SMD |
1,000 |
|
Datasheet |
WCLA1005V1 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.6 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 20 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.60mm) |
|
|
WCLA1005V1-620-RFIXED IND 62NH 100MA 1.12OHM SMD |
995 |
|
Datasheet |
WCLA1005V1 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 62 nH | ±5% | 100 mA | - | Unshielded | 1.12Ohm Max | 25 @ 250MHz | 1.62GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.60mm) |
|
|
WCLA1005V1-180-RFIXED IND 18NH 420MA 230MOHM SMD |
985 |
|
Datasheet |
WCLA1005V1 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 18 nH | ±5% | 420 mA | - | Unshielded | 230mOhm Max | 25 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.60mm) |
|
SDWL1608CP18NGSTFFIXED IND 18NH 1.2A 70 MOHM SMD |
882 |
|
Datasheet |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±2% | 1.2 A | - | Unshielded | 70mOhm Max | 41 @ 250MHz | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
