Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WPN201610H2R2MTFIXED IND 2.2UH 1.45A 170MOHM SM |
435 |
|
Datasheet |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.45 A | 2.15A | Shielded | 170mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
ASPI-0628-101M-T1FIXED IND 100UH 660MA 600MOHM SM |
340 |
|
Datasheet |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 660 mA | 650mA | Shielded | 600mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXBD6060MKT150MEFIXED IND 15UH 790MA 396MOHM SMD |
1,965 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 790 mA | 800mA | Shielded | 330mOhm | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LSXBD6060MKT2R5NEFIXED IND 2.5UH 1.73A 108MOHM SM |
1,935 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2.5 µH | ±30% | 1.73 A | 2.1A | Shielded | 90mOhm | - | 45MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
BWVS00606045680M00INDUCTOR POWER |
1,630 |
|
Datasheet |
BWVS | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 900 mA | 1.44A | Shielded | 330mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
LQH2HPN1R5MDRLFIXED IND 1.5UH 900MA 348MOHM SM |
981 |
|
Datasheet |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 900 mA | 1.12A | Shielded | 348mOhm Max | - | 60MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
NR6012T101MEFIXED IND 100UH 320MA 2.616 OHM |
974 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 320 mA | 350mA | Shielded | 2.616Ohm Max | - | 1MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
VLS6045EX-2R2N-CAFIXED IND 2.2UH 5.1A 24.7MOHM SM |
926 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.1 A | 7.5A | Shielded | 24.7mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQW21HNR82J00LFIXED IND 820NH 125MA 2.34OHM SM |
869 |
|
Datasheet |
LQW21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 820 nH | ±5% | 125 mA | - | Unshielded | 2.34Ohm Max | 35 @ 100MHz | 480MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
E.JPG)
|
VLS2010ET-R56NFIXED IND 560NH 2A 60 MOHM SMD |
127 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 560 nH | ±30% | 2 A | 2A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
ASPI-3012S-3R3N-TFIXED IND 3.3UH 1.36A 100MOHM SM |
990 |
|
Datasheet |
ASPI-3012S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.36 A | 1.05A | Shielded | 100mOhm Max | - | 64MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
744758368AFIXED IND 6.8UH 360MA 2 OHM SMD |
954 |
|
Datasheet |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 360 mA | - | Unshielded | 2Ohm Max | 20 @ 7.96MHz | 70MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
SDCHA1V5020-3R3RIND SMD POWER 3.3UH 2.8A |
879 |
|
Datasheet |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 2.8 A | 3.5A | Shielded | 43mOhm | - | 66MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
744762368AFIXED IND 6.8UH 165MA 2.8OHM SMD |
827 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 165 mA | - | Unshielded | 2.8Ohm Max | 20 @ 7.96MHz | 39MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

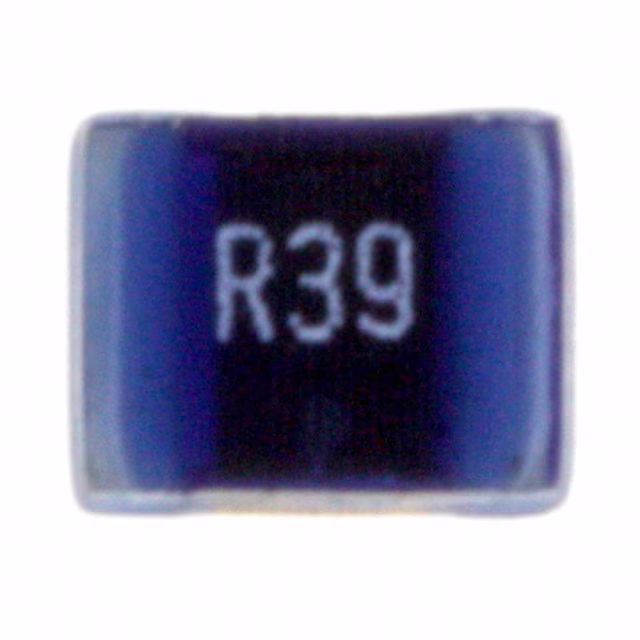

744762239AFIXED IND 390NH 470MA 1.06OHM SM |
775 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 470 mA | - | Unshielded | 1.06Ohm Max | 45 @ 100MHz | 530MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744758347AFIXED IND 4.7UH 400MA 1.65OHM SM |
438 |
|
Datasheet |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 400 mA | - | Unshielded | 1.65Ohm Max | 20 @ 7.96MHz | 60MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
AISC-0603F-3R9J-TFIXED IND 3.9UH 190MA 1.9OHM SMD |
432 |
|
Datasheet |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 190 mA | - | Unshielded | 1.9Ohm Max | - | 50MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|

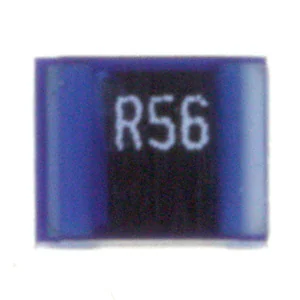

744762256AFIXED IND 560NH 310MA 1.5OHM SMD |
304 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 310 mA | - | Unshielded | 1.5Ohm Max | 45 @ 100MHz | 430MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744766168FIXED IND 68UH 130MA 6 OHM SMD |
205 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 130 mA | - | Unshielded | 6Ohm Max | 50 @ 2.52MHz | 10MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
744762312AFIXED IND 1.2UH 230MA 1.3OHM SMD |
175 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 230 mA | - | Unshielded | 1.3Ohm Max | 20 @ 7.96MHz | 280MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
