Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

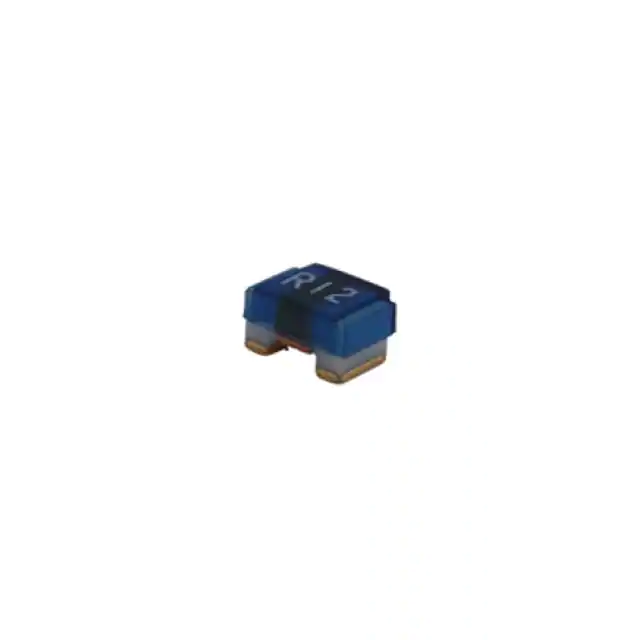

WCLA2012V1-560-RFIXED IND 56NH 500MA 340MOHM SMD |
841 |
|
Datasheet |
WCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±5% | 500 mA | - | Unshielded | 340mOhm Max | 55 @ 500MHz | 1.55GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.060" (1.52mm) |
|
|
WCLA2012V1-222-RFIXED IND 2.2UH 150MA 4.2OHM SMD |
775 |
|
Datasheet |
WCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±5% | 150 mA | - | Unshielded | 4.2Ohm Max | 16 @ 7.9MHz | 50MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.060" (1.52mm) |
|
WCLA1005V1-1R0-RFIXED IND 1NH 1.36A 45 MOHM SMD |
762 |
|
Datasheet |
WCLA1005V1 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 nH | ±10% | 1.36 A | - | Unshielded | 45mOhm Max | 13 @ 250MHz | 10GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.60mm) |
|
|
WCLA2012V1-270-RFIXED IND 27NH 500MA 250MOHM SMD |
727 |
|
Datasheet |
WCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 27 nH | ±5% | 500 mA | - | Unshielded | 250mOhm Max | 55 @ 500MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.060" (1.52mm) |
|
|
WCLA1005V1-6R8-RFIXED IND 6.8NH 680MA 260MOHM SM |
695 |
|
Datasheet |
WCLA1005V1 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 6.8 nH | ±5% | 680 mA | - | Unshielded | 260mOhm Max | 23 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.60mm) |
|
|
WCLA2012V1-561-RFIXED IND 560NH 230MA 1.9OHM SMD |
604 |
|
Datasheet |
WCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±5% | 230 mA | - | Unshielded | 1.9Ohm Max | 23 @ 50MHz | 340MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.060" (1.52mm) |
|
|
WCLA2012V1-4R7-RFIXED IND 4.7NH 600MA 50MOHM SMD |
549 |
|
Datasheet |
WCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 nH | ±10% | 600 mA | - | Unshielded | 50mOhm Max | 40 @ 1GHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.060" (1.52mm) |
|
|
WCLA2012V1-100-RFIXED IND 10NH 600MA 150MOHM SMD |
390 |
|
Datasheet |
WCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 nH | ±5% | 600 mA | - | Unshielded | 150mOhm Max | 50 @ 500MHz | 4.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.060" (1.52mm) |
|
AISM-1812-181K-TFIXED IND 180UH 102MA 9.5OHM SMD |
367 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 102 mA | - | Unshielded | 9.5Ohm Max | 40 @ 796kHz | 5MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
AISM-1812-101K-TFIXED IND 100UH 110MA 8 OHM SMD |
311 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 8MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
CW160808-R22JFIXED IND 220NH 200MA 1.9OHM SMD |
103 |
|
Datasheet |
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 220 nH | ±5% | 200 mA | - | Unshielded | 1.9Ohm | 25 @ 100MHz | 990MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
-2,70mm.jpg)
|
LBC3225T220KRVFIXED IND 22UH 330MA 270MOHM SMD |
900 |
|
- |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 22 µH | ±10% | 330 mA | - | Unshielded | 270mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
PM0805-82NK-RCFIXED IND 82NH 500MA 320MOHM SMD |
793 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 82 nH | ±10% | 500 mA | - | Unshielded | 320mOhm | 60 @ 500MHz | 1.35GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
E.JPG)
|
VLS2012ET-1R5NFIXED IND 1.5UH 1.2A 108MOHM SMD |
253 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 1.5 µH | ±30% | 1.2 A | 1.2A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
PM0805-27NM-RCFIXED IND 27NH 600MA 120MOHM SMD |
208 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 27 nH | ±20% | 600 mA | - | Unshielded | 120mOhm | 60 @ 500MHz | 2.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
MBKK2012T1R5MFIXED IND 1.5UH 1.1A 173MOHM SMD |
171 |
|
Datasheet |
MCOIL™, MB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1.1 A | 1.2A | Shielded | 173mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LQH2MPZR33NGRLFIXED IND 330NH 1.13A 180MOHM SM |
126 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±30% | 1.13 A | 2.2A | Shielded | 180mOhm Max | - | 130MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
CM453232-R56MLFIXED IND 560NH 520MA 360MOHM SM |
1,069 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 520 mA | - | Unshielded | 360mOhm Max | 40 @ 25.2MHz | 140MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
-Height-1.00mm.jpg)
|
1269AS-H-1R0M=P2FIXED IND 1UH 2.7A 78 MOHM SMD |
810 |
|
Datasheet |
DFE252010C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 2.7 A | - | Shielded | 78mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CBC3225T1R0MRVFIXED IND 1UH 1.1A 71.5 MOHM SMD |
780 |
|
- |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.1 A | 2A | Unshielded | 71.5mOhm Max | - | 250MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
