Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

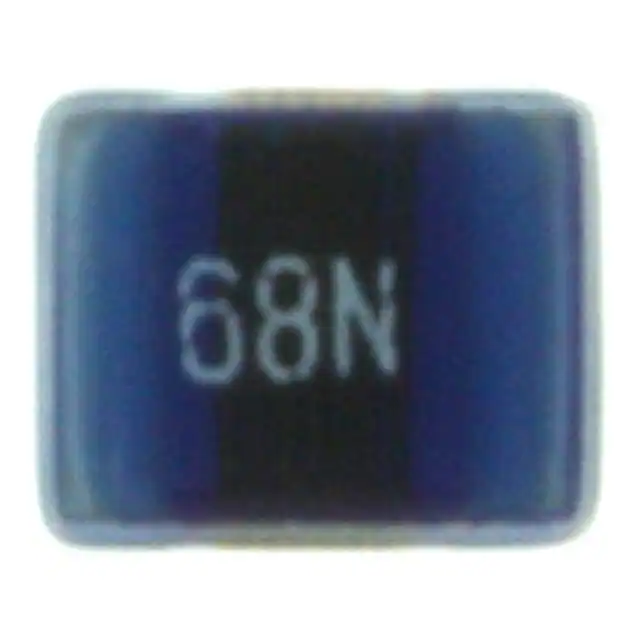

744762168AFIXED IND 68NH 1A 150 MOHM SMD |
158 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 1 A | - | Unshielded | 150mOhm Max | 60 @ 350MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
AIUR-06-390KFIXED IND 39UH 3.3A 54 MOHM TH |
376 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 3.3 A | 4.5A | Unshielded | 54mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
LCXND5050KKT1R0NMGFIXED IND 1UH 1.75A 84 MOHM SMD |
1,990 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.75 A | 2.35A | Unshielded | 70mOhm | - | 95MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
LCXND5050PKT6R8MMGFIXED IND 6.8UH 1.2A 180MOHM SMD |
1,865 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.2 A | 1.6A | Unshielded | 150mOhm | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LCXND5050WKT3R3NMGFIXED IND 3.3UH 2.4A 57.6MOHM SM |
1,011 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 2.4 A | 2.4A | Unshielded | 48mOhm | - | 46MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
VLS6045EX-1R2NFIXED IND 1.2UH 5.4A 14 MOHM SMD |
768 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 5.4 A | 10A | Shielded | 14mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

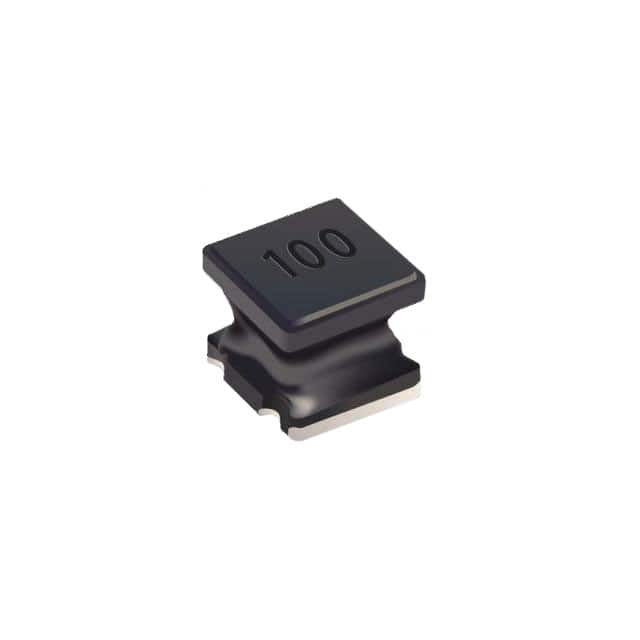

SRN3030HA-101MIND,3X3X3MM,100UH20%,0.25A,150C, |
658 |
|
Datasheet |
SRN3030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 250 mA | 500mA | Shielded | 5Ohm Max | 33 @ 796kHz | 7MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" (3.00mm) |
|
LQW2BAN43NJ00LFIXED IND 43NH 1.55A 120MOHM SMD |
380 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 43 nH | ±5% | 1.55 A | - | Unshielded | 120mOhm Max | 75 @ 500MHz | 1.72GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
SRN3030HA-100MIND,3X3X3MM,10UH20%,0.9A,150C,SH |
336 |
|
Datasheet |
SRN3030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 1.6A | Shielded | 450mOhm Max | 20 @ 2.52MHz | 25MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" (3.00mm) |
|
|
SRN3030HA-4R7YIND,3X3X3MM,4.7UH30%,1.4A,150C,S |
152 |
|
Datasheet |
SRN3030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.4 A | 2.4A | Shielded | 200mOhm Max | 15 @ 7.96MHz | 37MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" (3.00mm) |
|
|
LQW2BAN24NJ00LFIXED IND 24NH 1.4A 150MOHM SMD |
136 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 24 nH | ±5% | 1.4 A | - | Unshielded | 150mOhm Max | 78 @ 500MHz | 1.97GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LCXND5050KKT100MMGFIXED IND 10UH 900MA 300MOHM SMD |
1,990 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 850mA | Unshielded | 250mOhm | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
744764115FIXED IND 15UH 130MA 2.8 OHM SMD |
1,952 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 130 mA | - | Unshielded | 2.8Ohm Max | 30 @ 2.52MHz | 26MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
AWVF00404015220M00FIXED IND 22UH 850MA 400MOHM SMD |
970 |
|
Datasheet |
AWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 850 mA | 720mA | Shielded | 400mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.067" (1.70mm) |
|
|
744764139FIXED IND 39UH 65MA 6.4 OHM SMD |
956 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 65 mA | - | Unshielded | 6.4Ohm Max | 30 @ 2.52MHz | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
VLS252015ET-3R3MFIXED IND 3.3UH 1.05A 219MOHM SM |
491 |
|
Datasheet |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.05 A | 1.2A | Shielded | 219mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

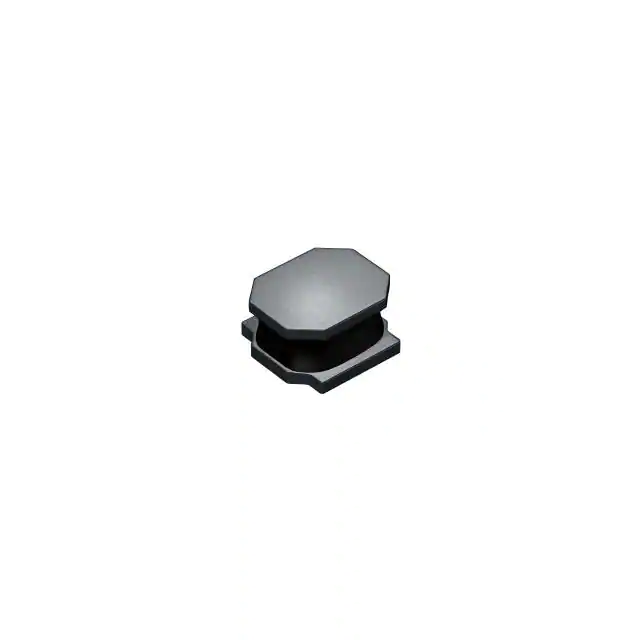

LCXND5050XAT4R7MMGFIXED IND 4.7UH 2.6A 45.5MOHM SM |
386 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 2.6 A | 3.1A | Unshielded | 35mOhm | - | 31MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
VLS252010ET-4R7MFIXED IND 4.7UH 800MA 398MOHM SM |
372 |
|
Datasheet |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 800 mA | 800mA | Shielded | 398mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW18ASR10G0CDFIXED IND 100NH 400MA 580MOHM SM |
370 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 100 nH | ±2% | 400 mA | - | Unshielded | 580mOhm Max | 34 @ 150MHz | 1.4GHz | - | -40°C ~ 85°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
PF0580.682NLFIXED IND 6.8UH 1.3A 100MOHM SMD |
260 |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±15% | 1.3 A | 1.3A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
