Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR1006-151KLFIXED IND 150UH 780MA 470MOHM SM |
1,320 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 780 mA | 1.4A | Unshielded | 470mOhm Max | 15 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
SRN1060-220MFIXED IND 22UH 3.4A 53 MOHM SMD |
1,083 |
|
Datasheet |
SRN1060 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.4 A | 3.4A | Shielded | 53mOhm Max | 20 @ 7.96MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.236" (6.00mm) |
|
SLF6028T-330MR69-PFFIXED IND 33UH 1.1A 177.6MOHM SM |
395 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 690mA | Shielded | 177.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SDR1006-102KLFIXED IND 1MH 230MA 3.1 OHM SMD |
389 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 230 mA | 530mA | Unshielded | 3.1Ohm Max | 30 @ 252kHz | 1.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-150MLFIXED IND 15UH 2.25A 80 MOHM SMD |
205 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.25 A | 4A | Unshielded | 80mOhm Max | 30 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
SDR1005-150MLFIXED IND 15UH 2.5A 60 MOHM SMD |
103 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 3A | Unshielded | 60mOhm Max | 42 @ 2.7MHz | 22MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
DR74-820-RFIXED IND 82UH 910MA 345MOHM SMD |
1,129 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 910 mA | 1.11A | Shielded | 345mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
CLF7045NIT-151M-DFIXED IND 150UH 690MA 520MOHM SM |
1,647 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 690 mA | 690mA | Shielded | 520mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
B82432C1683K000FIXED IND 68UH 190MA 2.8 OHM SMD |
997 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 190 mA | - | Unshielded | 2.8Ohm Max | 30 @ 2.52MHz | 10MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
1217AS-H-100M=P3FIXED IND 10UH 3.9A 39.6MOHM SMD |
727 |
|
Datasheet |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | 4.3A | Shielded | 39.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
1217AS-H-4R7N=P3FIXED IND 4.7UH 6.3A 18 MOHM SMD |
357 |
|
Datasheet |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 6.3 A | 6.7A | Shielded | 18mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
ASPI-0520LR-1R0M-T2FIXED IND 1UH 7.5A 18.5 MOHM SMD |
264 |
|
Datasheet |
ASPI-0520LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7.5 A | 8A | Unshielded | 18.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.083" (2.10mm) |
|
|
1217AS-H-330M=P3FIXED IND 33UH 2.2A 132 MOHM SMD |
4,632 |
|
Datasheet |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.2 A | 2.3A | Shielded | 132mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
SRR4828A-101MFIXED IND 100UH 700MA 600MOHM SM |
1,148 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 700 mA | 330mA | Shielded | 600mOhm Max | - | 8.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

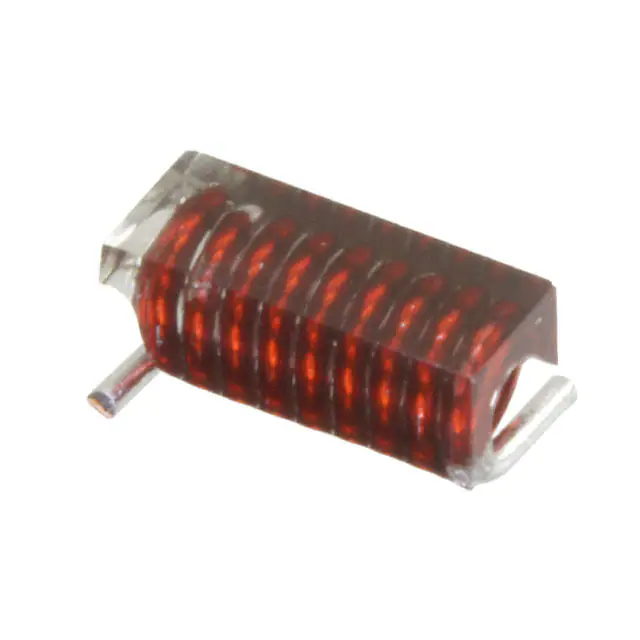

744914135FIXED IND 35.5NH 4A 6.8 MOHM SMD |
958 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 35.5 nH | ±5% | 4 A | - | Unshielded | 6.8mOhm Max | 112 @ 150MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
|
SRR4828A-100MFIXED IND 10UH 2.3A 100 MOHM SMD |
816 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.3 A | 1.1A | Shielded | 100mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4828A-3R9YFIXED IND 3.9UH 3.4A 47 MOHM SMD |
443 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 3.4 A | 1.8A | Shielded | 47mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4828A-221MFIXED IND 220UH 500MA 1.25OHM SM |
151 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 500 mA | 240mA | Shielded | 1.25Ohm Max | - | 5.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4828A-470MFIXED IND 47UH 1.2A 270 MOHM SMD |
2,861 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 470mA | Shielded | 270mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
744045470WE-LQ SMT INDUCTOR SIZE 1812; L |
1,395 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 390 mA | 730mA | Unshielded | 1.5Ohm Max | 55 @ 1MHz | 16MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
