Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
49680SCFIXED IND 68UH 2A 143 MOHM SMD |
960 |
|
Datasheet |
4900S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2 A | - | Shielded | 143mOhm Max | 47 @ 1MHz | 7MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
DFE322520F-2R2M=P2FIXED IND 2.2UH 4.4A |
674 |
|
Datasheet |
DFE322520F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 3.3 A | 4.4A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
RLB9012-220KLFIXED IND 22UH 2.4A 70 MOHM TH |
587 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.4 A | - | Unshielded | 70mOhm Max | 40 @ 2.52MHz | 9.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
49681SCFIXED IND 680UH 620MA 1.2OHM SMD |
372 |
|
Datasheet |
4900S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 620 mA | - | Shielded | 1.2Ohm Max | 27 @ 800kHz | 3MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
RLB9012-101KLFIXED IND 100UH 1.4A 280 MOHM TH |
104 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.4 A | - | Unshielded | 280mOhm Max | 20 @ 796kHz | 3.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
SRN8040TA-3R3YFIXED IND 3.3UH 6.6A 15 MOHM SMD |
1,962 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.6 A | 8A | Shielded | 15mOhm | 15 @ 1MHz | 48MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
12LRS105CFIXED IND 1MH 400MA 2.3 OHM TH |
722 |
|
Datasheet |
1200LRS | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 1 mH | ±15% | 400 mA | - | Shielded | 2.3Ohm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.335" (8.50mm) |
|
|
RLB9012-122KLFIXED IND 1.2MH 480MA 3.4 OHM TH |
595 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 480 mA | - | Unshielded | 3.4Ohm Max | 15 @ 252kHz | 1.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
DR74-471-RFIXED IND 470UH 400MA 1.74OHM SM |
568 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 400 mA | 460mA | Shielded | 1.74Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
VLCF4028T-2R2N1R9-2FIXED IND 2.2UH 1.94A 43MOHM SMD |
1,103 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.94 A | 1.94A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
0624CDMCCDS-R12MCFIXED IND 120NH 40A 960U OHM SMD |
692 |
|
Datasheet |
0624CDMCCDS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±20% | 40 A | 33A | Shielded | 960µOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
TFM322512ALMA1R0MTAAFIXED IND 1UH 4A 37 MOHM SMD |
418 |
|
Datasheet |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 4 A | 4.6A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TFM252010GHM-2R2MTAAFIXED IND 2.2UH 2.3A 85MOHM SMD |
940 |
|
Datasheet |
TFM-GHM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 2.3 A | 3.5A | Shielded | 85mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRR6038-330YFIXED IND 33UH 1.1A 124 MOHM SMD |
713 |
|
Datasheet |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.1 A | 1.2A | Shielded | 124mOhm Max | 8.6 @ 2.52MHz | 12.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
SRR4018-6R8YFIXED IND 6.8UH 1.5A 100MOHM SMD |
1,655 |
|
Datasheet |
SRR4018 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.5 A | 1.15A | Shielded | 100mOhm Max | 8 @ 7.96MHz | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
SRU5018-2R2YFIXED IND 2.2UH 2.3A 20.5MOHM SM |
1,251 |
|
Datasheet |
SRU5018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.3 A | 2.1A | Shielded | 20.5mOhm | 10 @ 7.96MHz | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
SRR4028-151YFIXED IND 150UH 420MA 860MOHM SM |
1,156 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 420 mA | 260mA | Shielded | 860mOhm Max | 11.72 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-120YFIXED IND 12UH 1.12A 125MOHM SMD |
740 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±30% | 1.12 A | 850mA | Shielded | 125mOhm Max | 11.26 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-180YFIXED IND 18UH 980MA 160MOHM SMD |
344 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±30% | 980 mA | 750mA | Shielded | 160mOhm Max | 11.64 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

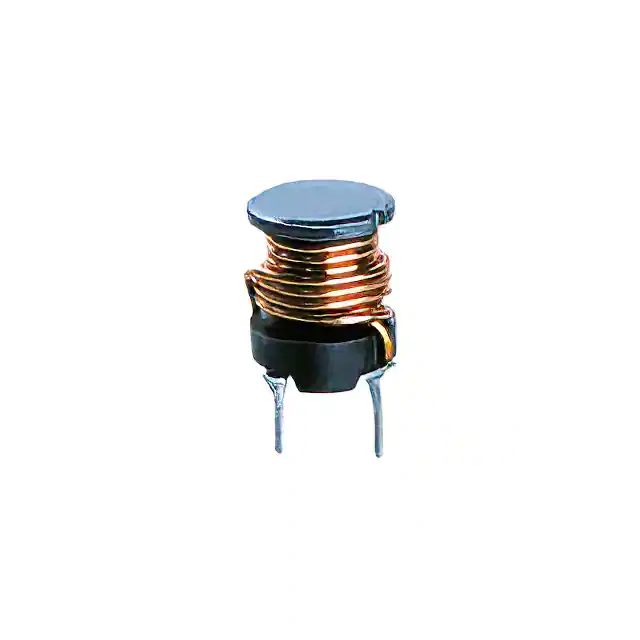

7447720470FIXED IND 47UH 2A 120 MOHM TH |
285 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 47 µH | ±10% | 2 A | 2.3A | Unshielded | 120mOhm Max | - | 9.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
