Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
22R225CFIXED IND 2.2MH 110MA 8.58OHM TH |
300 |
|
Datasheet |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 2.2 mH | ±10% | 110 mA | - | Unshielded | 8.58Ohm Max | 90 @ 50kHz | 1.7MHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|
|
22R473CFIXED IND 47UH 770MA 220 MOHM TH |
237 |
|
Datasheet |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 47 µH | ±10% | 770 mA | - | Unshielded | 220mOhm Max | 50 @ 500kHz | 10.9MHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|
13R226CFIXED IND 22MH 70MA 48 OHM TH |
233 |
|
Datasheet |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 22 mH | ±10% | 70 mA | - | Unshielded | 48Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
SDR0503-332JLFIXED IND 3.3MH 45MA 38 OHM SMD |
229 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 45 mA | 62mA | Unshielded | 38Ohm Max | 40 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
13R476CFIXED IND 47MH 45MA 120 OHM TH |
200 |
|
Datasheet |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 47 mH | ±10% | 45 mA | - | Unshielded | 120Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
LQH5BPB100MT0LFIXED IND 10UH 1.6A 127.2MOHM SM |
714 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.6 A | 2A | Shielded | 127.2mOhm Max | - | 25MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 (5050 Metric) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
LQH5BPN1R0N38LFIXED IND 1UH 4.6A 12 MOHM SMD |
690 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.6 A | 7A | Shielded | 12mOhm | - | 54MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
74476404FIXED IND 4.7UH 220MA 1.5OHM SMD |
1,157 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 220 mA | - | Unshielded | 1.5Ohm Max | 30 @ 7.96MHz | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
B82141A1103K000FIXED IND 10UH 410MA 600 MOHM TH |
781 |
|
Datasheet |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 410 mA | - | Unshielded | 600mOhm Max | 55 @ 2.52MHz | 25MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
|
LQH5BPN101M38LFIXED IND 100UH 740MA 576MOHM SM |
601 |
|
Datasheet |
LQH5 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 740 mA | 750mA | Shielded | 576mOhm Max | - | 4MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
RLB1314-100KLFIXED IND 10UH 3.2A 15 MOHM TH |
483 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 3.2 A | - | Unshielded | 15mOhm Max | 140 @ 2.52MHz | 26MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
|
LQH5BPN6R8M38LFIXED IND 6.8UH 3A 39 MOHM SMD |
432 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3 A | 3A | Shielded | 39mOhm | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
744032006FIXED IND 6.8UH 420MA 400MOHM SM |
428 |
|
Datasheet |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 420 mA | 1.1A | Unshielded | 400mOhm Max | 20 @ 1MHz | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
LQH5BPN150M38LFIXED IND 15UH 1.9A 96 MOHM SMD |
347 |
|
Datasheet |
LQH5 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.9 A | 1.8A | Shielded | 96mOhm Max | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
|
LQH5BPN470M38LFIXED IND 47UH 1.1A 220 MOHM SMD |
267 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 1.1A | Shielded | 220mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|

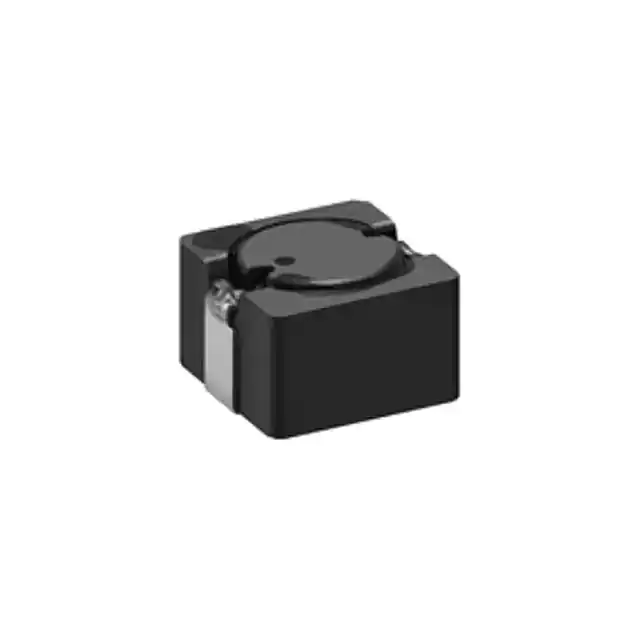

B1047AS-2R2N=P3FIXED IND 2.2UH 5.5A 16 MOHM SMD |
1,861 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.5 A | 6.5A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-150M=P3FIXED IND 15UH 2.2A 71 MOHM SMD |
668 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2.4A | Shielded | 71mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
SRN8040-3R6YFIXED IND 3.6UH 4.9A 22 MOHM SMD |
534 |
|
Datasheet |
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | 5.3A | Shielded | 22mOhm Max | 13 @ 7.96MHz | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
3613C100KFIXED IND 10UH 250MA 1.6 OHM SMD |
200 |
|
Datasheet |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
RCH895NP-333KFIXED IND 33MH 37MA 64.2 OHM TH |
183 |
|
Datasheet |
RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 37 mA | 48mA | Unshielded | 64.2Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
