Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP7050WA-150MIND POWER HC 15UH 5.5A SHLD |
621 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 5.5 A | 7.2A | Shielded | 66mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
|
SRP7050WA-680MIND POWER HC 68UH 2.7A SHLD |
530 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 2.7 A | 3A | Shielded | 251mOhm Max | 20 @ 100kHz | 4MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
MWSA0402S-4R7MTFIXED IND 4.7UH 2.8A 105MOHM SMD |
529 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 2.8 A | 3A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
SRP7050WA-330MIND POWER HC 33UH 4A SHLD |
328 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 4 A | 4.9A | Shielded | 127.6mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
|
SRP7050WA-2R2MIND POWER HC 2.2UH 14.5A SHLD |
299 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 14.5 A | 16.5A | Shielded | 11.2mOhm Max | 20 @ 100kHz | 28MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
CDRH6D38NP-330NCFIXED IND 33UH 1.1A 124 MOHM SMD |
1,587 |
|
Datasheet |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.1 A | - | Shielded | 124mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
NR10050T150MFIXED IND 15UH 3.2A 45.5MOHM SMD |
783 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.2 A | 3.6A | Unshielded | 45.5mOhm Max | - | 11MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
SRP7050WA-8R2MIND POWER HC 8.2UH 8A SHLD |
718 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 8 A | 9.2A | Shielded | 31.4mOhm Max | 20 @ 100kHz | 12MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
|
SRP7050WA-1R0MIND POWER HC 1UH 20A SHLD |
684 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 20 A | 23A | Shielded | 6mOhm Max | 20 @ 100kHz | 45MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
|
SRP7050WA-101MIND POWER HC 100UH 2.2A SHLD |
633 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 2.2 A | 2A | Shielded | 357mOhm Max | 20 @ 100kHz | 4MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
|
NR10050T6R5NFIXED IND 6.5UH 5.2A 23.4MOHM SM |
404 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.5 µH | ±30% | 5.2 A | 6A | Shielded | 23.4mOhm Max | - | 19MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
CDRH6D38NP-6R2NCFIXED IND 6.2UH 2.5A 27 MOHM SMD |
395 |
|
Datasheet |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.2 µH | ±30% | 2.5 A | - | Shielded | 27mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
SRP7050WA-6R8MIND POWER HC 6.8UH 8.7A SHLD |
369 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 8.7 A | 10.2A | Shielded | 26.5mOhm Max | 20 @ 100kHz | 14MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
22R686CFIXED IND 68MH 18MA 242 OHM TH |
367 |
|
Datasheet |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 68 mH | ±10% | 18 mA | - | Unshielded | 242Ohm Max | 70 @ 50kHz | 200kHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|

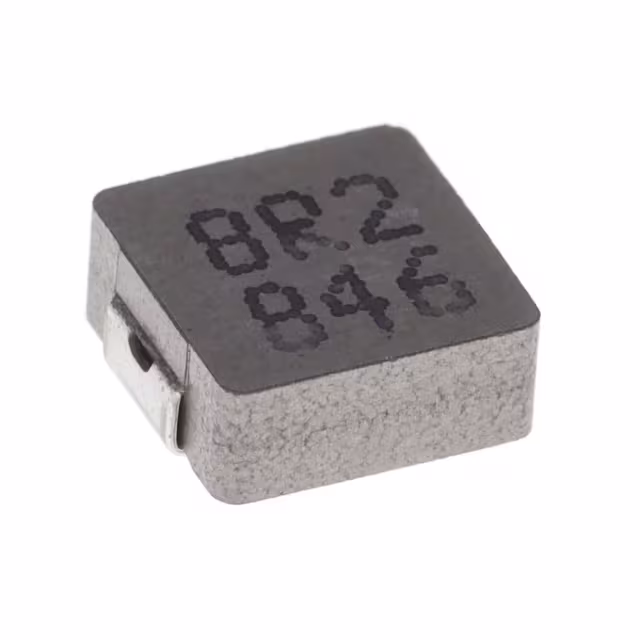

0630CDMCCDS-8R2MCFIXED IND 8.2UH 4.3A 60MOHM SMD |
3,550 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 8.2 µH | ±20% | 4.3 A | 5.8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
SRR0603-220MLFIXED IND 22UH 700MA 270MOHM SMD |
1,599 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 1.05A | Shielded | 270mOhm Max | 16 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
7447462022FIXED IND 2.2UH 6.3A 20 MOHM TH |
552 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.3 A | 4.3A | Unshielded | 20mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
ISC1812ES100KFIXED IND 10UH 279MA 900MOHM SMD |
382 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±10% | 279 mA | - | Shielded | 900mOhm Max | 50 @ 2.52MHz | 25MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

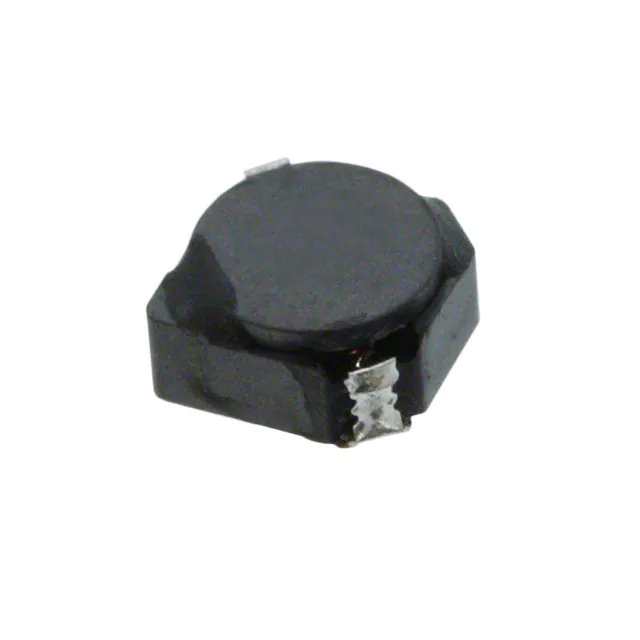

CDRH3D18NP-100NCFIXED IND 10UH 900MA 205MOHM SMD |
321 |
|
Datasheet |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 900 mA | 900mA | Shielded | 205mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
7447462471FIXED IND 470UH 350MA 2.4 OHM TH |
249 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 350 mA | 400mA | Unshielded | 2.4Ohm Max | - | 2.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
