Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447720330FIXED IND 33UH 2.5A 66 MOHM TH |
179 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 33 µH | ±10% | 2.5 A | 2.7A | Unshielded | 66mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
SRR4028-4R7YFIXED IND 4.7UH 1.55A 70MOHM SMD |
126 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.55 A | 1.3A | Shielded | 70mOhm Max | 8.12 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
7447720100FIXED IND 10UH 3.5A 43 MOHM TH |
107 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 µH | ±15% | 3.5 A | 4.9A | Unshielded | 43mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

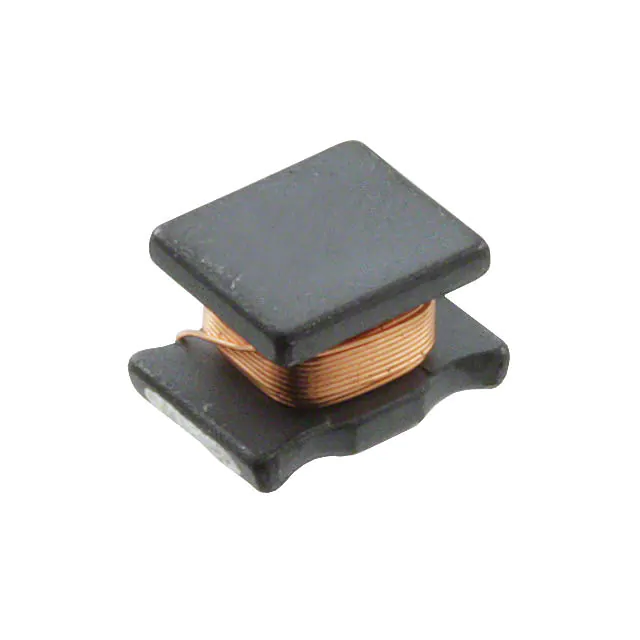

7440450039FIXED IND 3.9UH 1.32A 140MOHM SM |
1,246 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.32 A | 2.5A | Unshielded | 140mOhm Max | 40 @ 1MHz | 54MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045004FIXED IND 4.7UH 1.24A 150MOHM SM |
1,004 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.24 A | 2A | Unshielded | 150mOhm Max | 36 @ 1MHz | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045471FIXED IND 470UH 105MA 14.2OHM SM |
863 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 105 mA | 180mA | Unshielded | 14.2Ohm Max | 50 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045215FIXED IND 150UH 220MA 3.7OHM SMD |
745 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 220 mA | 420mA | Unshielded | 3.7Ohm Max | 55 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045102FIXED IND 1MH 70MA 30 OHM SMD |
627 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 70 mA | 160mA | Unshielded | 30Ohm Max | 28 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
744045006FIXED IND 6.8UH 1.1A 200MOHM SMD |
570 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.1 A | 1.6A | Unshielded | 200mOhm Max | 36 @ 1MHz | 37MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045391FIXED IND 390UH 110MA 13 OHM SMD |
380 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 110 mA | 270mA | Unshielded | 13Ohm Max | 50 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

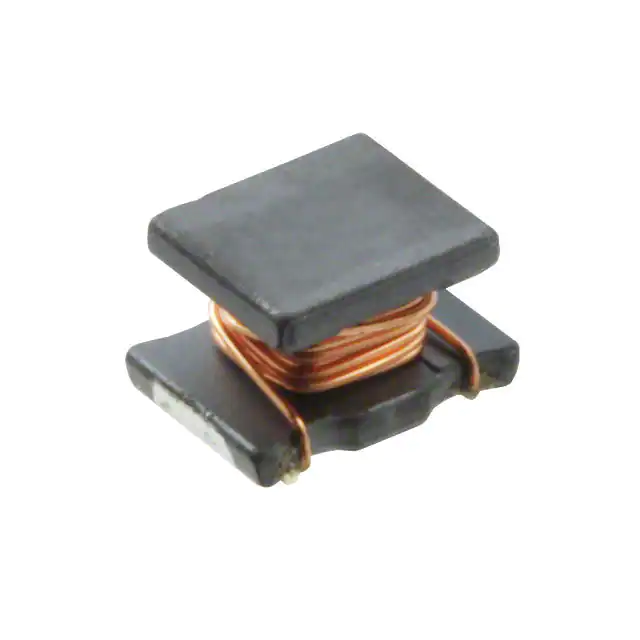

7440450056FIXED IND 5.6UH 1.18A 180MOHM SM |
348 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1.18 A | 1.9A | Unshielded | 180mOhm Max | 36 @ 1MHz | 41MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
ASPI-0428S-100M-TFIXED IND 10UH 1A 128.3 MOHM SMD |
305 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | - | Shielded | 128.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
744045222FIXED IND 2.2MH 40MA 63 OHM SMD |
127 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 40 mA | 78mA | Unshielded | 63Ohm Max | 30 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

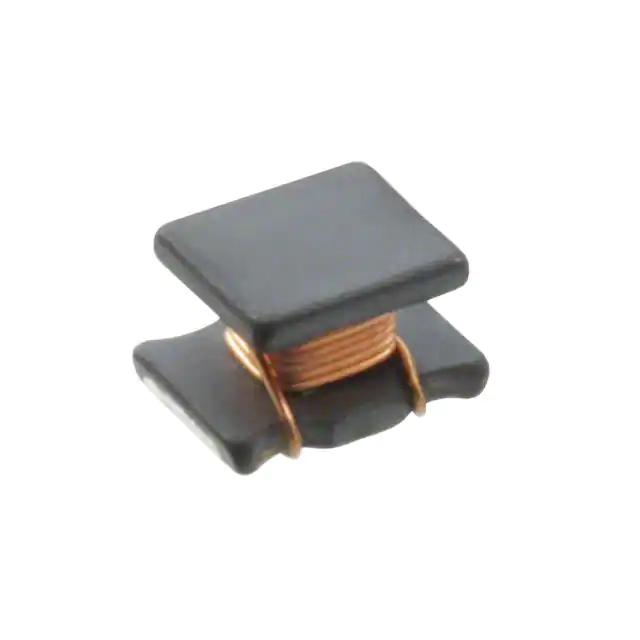

744045001FIXED IND 1UH 1.8A 80 MOHM SMD |
116 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.8 A | 4.4A | Unshielded | 80mOhm Max | 40 @ 1MHz | 165MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
DD1217AS-H-330M=P3FIXED IND 33UH 2.2A 132MOHM SMD |
689 |
|
Datasheet |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.2 A | 3.1A | Shielded | 132mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
74479763210AFIXED IND 1UH 900MA 250 MOHM SMD |
652 |
|
Datasheet |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 900 mA | 650mA | Unshielded | 250mOhm Max | 12 @ 1MHz | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
BMRA000404203R3MA1FIXED IND 3.3UH 2.5A 87 MOHM SMD |
534 |
|
Datasheet |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2.5 A | 4A | Shielded | 87mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
7447720200WE-TI RADIAL LEADED WIRE WOUND I |
3,158 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 20 µH | ±10% | 3.1 A | 3.5A | Unshielded | 54mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
SDR1006-181KLFIXED IND 180UH 720MA 630MOHM SM |
1,715 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 720 mA | 1.3A | Unshielded | 630mOhm Max | 12 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-470KLFIXED IND 47UH 1.25A 170MOHM SMD |
1,708 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.25 A | 2.3A | Unshielded | 170mOhm Max | 20 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
