Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH3NPH150MMELFIXED IND 15UH 1.02A 348MOHM SMD |
415 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.02 A | 660mA | Shielded | 348mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
1255AY-6R8M=P3FIXED IND 6.8UH 3.4A 36MOHM SMD |
390 |
|
Datasheet |
DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.4 A | 3.6A | Shielded | 36mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.177" (4.50mm) |
|
SRN5020TA-100MFIXED IND 10UH 1.6A 110 MOHM SMD |
313 |
|
Datasheet |
SRN5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.6 A | 1.7A | Shielded | 110mOhm | 15 @ 100kHz | 41MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ASPI-6045S-390M-TFIXED IND 39UH 1.25A 180MOHM SMD |
277 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.25 A | 1.5A | Shielded | 180mOhm | - | 7.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
29333CFIXED IND 33UH 1A 120 MOHM SMD |
1,057 |
|
Datasheet |
2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | - | 1 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
|
ASPI-6045S-330M-TFIXED IND 33UH 1.45A 137MOHM SMD |
890 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.45 A | 1.65A | Shielded | 137mOhm | - | 7.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH2HPZ6R8MJRLFIXED IND 6.8UH 1A 312 MOHM SMD |
1,939 |
|
Datasheet |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 1.05A | Shielded | 312mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

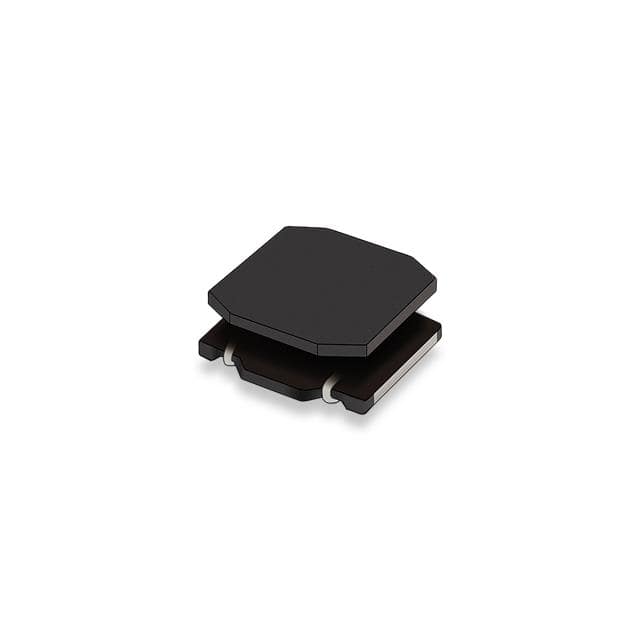

LQH44PN1R0MPRLFIXED IND 1.0UH 4300MA NONAUTO |
1,656 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.2 A | 4.3A | Shielded | 25mOhm | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PN2R2MPRLFIXED IND 2.2UH 3300MA NONAUTO |
975 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.4 A | 3.3A | Shielded | 42mOhm | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PN101MPRLFIXED IND 100UH 460MA NONAUTO |
913 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 400 mA | 460mA | Shielded | 1.3Ohm | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
48100SCFIXED IND 10UH 4.5A 28 MOHM SMD |
906 |
|
Datasheet |
4800S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 4.5 A | - | Shielded | 28mOhm Max | 32 @ 1MHz | 20MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.236" (6.00mm) |
|
ASPIAIG-S6055-150M-TFIXED IND 15UH 2.75A 74 MOHM SMD |
724 |
|
Datasheet |
ASPIAIG-S6055 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 15 µH | ±20% | 2.75 A | 3.3A | Shielded | 74mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.224" (5.70mm) |
|
RLB1014-122KLFIXED IND 1.2MH 340MA 4.7 OHM TH |
576 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 340 mA | 360mA | Unshielded | 4.7Ohm Max | 50 @ 252kHz | 800kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB1014-222KLFIXED IND 2.2MH 260MA 8.4 OHM TH |
455 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 260 mA | 270mA | Unshielded | 8.4Ohm Max | 50 @ 252kHz | 550kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB1014-473KLFIXED IND 47MH 60MA 150 OHM TH |
434 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 60 mA | 65mA | Unshielded | 150Ohm Max | 35 @ 79.6kHz | 160kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
LQH44PN6R8MPRLFIXED IND 6.8UH 1850MA NONAUTO |
389 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.5 A | 1.85A | Shielded | 100mOhm | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PN4R7MPRLFIXED IND 4.7UH 2050MA NONAUTO |
170 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.9 A | 2.05A | Shielded | 65mOhm | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
CC453232A-102KLFIXED IND 1MH 90MA 40 OHM SMD |
154 |
|
Datasheet |
CC453232A | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 90 mA | 80mA | Unshielded | 40Ohm Max | 20 @ 252kHz | 2MHz | AEC-Q200 | -40°C ~ 150°C | 252 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
46103CFIXED IND 10UH 2.4A 66 MOHM SMD |
1,531 |
|
Datasheet |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.4 A | - | Shielded | 66mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
LQH44PH3R3MPRLFIXED IND 3.3UH 2A 66 MOHM SMD |
1,365 |
|
Datasheet |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.3A | Shielded | 66mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
