Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH32PN2R2NNCLFIXED IND 2.2UH 1.85A 76.8 MOHM |
849 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.85 A | 2A | Shielded | 76.8mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
RLB0914-150KLFIXED IND 15UH 2.4A 60 MOHM TH |
977 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.4 A | 5.3A | Unshielded | 60mOhm Max | 50 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
RLB0912-681KLFIXED IND 680UH 500MA 2.3 OHM TH |
974 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 500 mA | 420mA | Unshielded | 2.3Ohm Max | 25 @ 796kHz | 2.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
|
RLB0914-820KLFIXED IND 82UH 1.28A 230 MOHM TH |
946 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.28 A | 2.5A | Unshielded | 230mOhm Max | 30 @ 2.52MHz | 4MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|

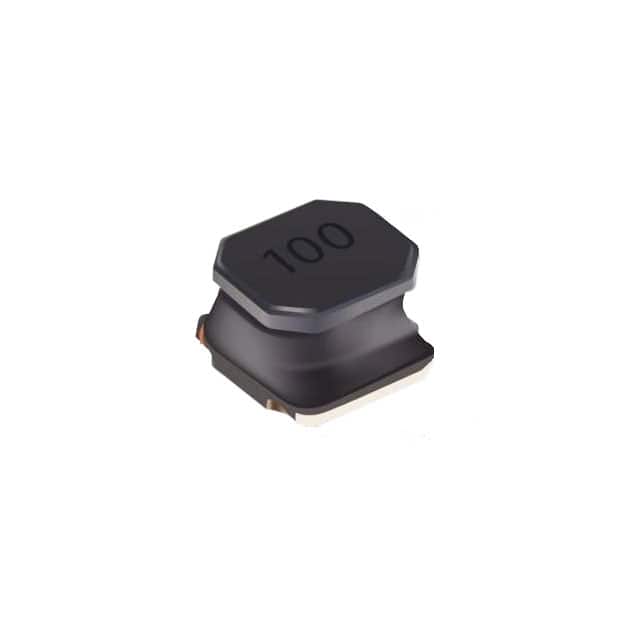

SRN4030HA-4R7YIND,4X4X3MM,4.7UH30%,3.1A,150C,S |
727 |
|
Datasheet |
SRN4030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.1 A | 3.5A | Shielded | 60mOhm Max | 13 @ 7.96MHz | 31MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
RLB0912-1R0MLFIXED IND 1UH 6A 10 MOHM TH |
473 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 6 A | 8.1A | Unshielded | 10mOhm Max | 30 @ 7.96MHz | 88MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
LQW2BAN47NJ00LFIXED IND 47NH 1.25A 200MOHM SMD |
359 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 nH | ±5% | 1.25 A | - | Unshielded | 200mOhm Max | 70 @ 500MHz | 1.5GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LQH5BPZ4R7NT0LFIXED IND 4.7UH 2A 69.6MOHM SMD |
818 |
|
Datasheet |
LQH5 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2 A | 3A | Shielded | 69.6mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
SRN5040-6R8MFIXED IND 6.8UH 2.3A 59 MOHM SMD |
1,260 |
|
Datasheet |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.3 A | 2.6A | Shielded | 59mOhm Max | 15 @ 7.96MHz | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
SRN5040-3R3MFIXED IND 3.3UH 3.3A 27 MOHM SMD |
1,069 |
|
Datasheet |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.3 A | 3.8A | Shielded | 27mOhm Max | 20 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
LQW2BANR10G00LFIXED IND 100NH 1.05A 350MOHM SM |
997 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±2% | 1.05 A | - | Unshielded | 350mOhm Max | 66 @ 500MHz | 1.2GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
SRN6028C-3R9MFIXED IND 3.9UH 3A 38 MOHM SMD |
776 |
|
Datasheet |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 3.3 A | 3.9A | Shielded | 28mOhm | 15 @ 100kHz | 54MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
LQW2BAN15NG00LFIXED IND 15NH 1.5A 120MOHM SMD |
685 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 15 nH | ±2% | 1.5 A | - | Unshielded | 120mOhm Max | 70 @ 500MHz | 1.94GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
SRN6028C-100MFIXED IND 10UH 1.9A 78 MOHM SMD |
645 |
|
Datasheet |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2 A | 2.1A | Shielded | 65mOhm | 15 @ 100kHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
LQH5BPZ100MT0LFIXED IND 10UH 1.6A 127.2MOHM SM |
601 |
|
Datasheet |
LQH5 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.6 A | 2A | Shielded | 127.2mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
LQW2BAN18NG00LFIXED IND 18NH 2.2A 50 MOHM SMD |
541 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 18 nH | ±2% | 2.2 A | - | Unshielded | 50mOhm Max | 85 @ 500MHz | 3.62GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
CMH322522-100KLFIXED IND 10UH 150MA 2.1 OHM SMD |
221 |
|
Datasheet |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 150 mA | - | Shielded | 2.1Ohm Max | 30 @ 2.52MHz | 28MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
VLCF4020T-1R8N1R9FIXED IND 1.8UH 1.97A 51MOHM SMD |
1,175 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 1.97 A | 1.97A | Shielded | 51mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
45103CFIXED IND 10UH 2.2A 82 MOHM SMD |
966 |
|
Datasheet |
4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.2 A | - | Shielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
LQW2UASR47F00LFIXED IND 470NH 470MA 1.19OHM SM |
821 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 470 nH | ±1% | 470 mA | - | Unshielded | 1.19Ohm Max | 45 @ 100MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
