Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHB2EB3R3MFIXED IND 3.3UH 13.5A 5 MOHM TH |
105 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 3.3 µH | ±20% | 13.5 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|

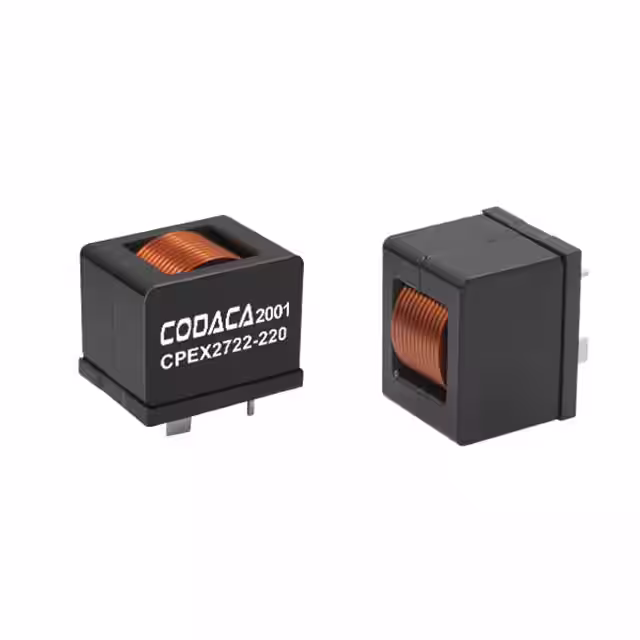

CPEX2722-220MCTHT HIGH CURRENT POWER INDUCTOR |
525 |
|
Datasheet |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 25 A | 33A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.075" L x 0.846" W (27.30mm x 21.50mm) | 0.898" (22.80mm) |
|
|
CPEX2722-270MCTHT HIGH CURRENT POWER INDUCTOR |
287 |
|
Datasheet |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 27 µH | ±20% | 25 A | 30A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.075" L x 0.846" W (27.30mm x 21.50mm) | 0.877" (22.30mm) |
|
|
CPEX2722-150MCTHT HIGH CURRENT POWER INDUCTOR |
177 |
|
Datasheet |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 25 A | 63A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.075" L x 0.846" W (27.30mm x 21.50mm) | 0.898" (22.80mm) |
|
|
CPEX2722-120MCTHT HIGH CURRENT POWER INDUCTOR |
160 |
|
Datasheet |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 12 µH | ±20% | 26.5 A | 80A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.075" L x 0.846" W (27.30mm x 21.50mm) | 0.898" (22.80mm) |
|
|
CPEX2722-100MCTHT HIGH CURRENT POWER INDUCTOR |
114 |
|
Datasheet |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 25 A | 95A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.075" L x 0.846" W (27.30mm x 21.50mm) | 0.898" (22.80mm) |
|
|
CPRX1912L-220MCTHT HIGH CURRENT POWER INDUCTOR |
315 |
|
Datasheet |
CPRX1912L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 17 A | 16.5A | Shielded | 8.27mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.748" L x 0.492" W (19.00mm x 12.50mm) | 0.688" (17.50mm) |
|
|
CPRX1912L-7R2MCTHT HIGH CURRENT POWER INDUCTOR |
304 |
|
Datasheet |
CPRX1912L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 7.2 µH | ±20% | 31 A | 30A | Shielded | 2.47mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.748" L x 0.492" W (19.00mm x 12.50mm) | 0.688" (17.50mm) |
|
|
CPRX1912L-3R3MCTHT HIGH CURRENT POWER INDUCTOR |
297 |
|
Datasheet |
CPRX1912L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 45 A | 45A | Shielded | 1.14mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.748" L x 0.492" W (19.00mm x 12.50mm) | 0.688" (17.50mm) |
|
|
CPRX1912L-5R6MCTHT HIGH CURRENT POWER INDUCTOR |
285 |
|
Datasheet |
CPRX1912L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 33 A | 32.5A | Shielded | 2.09mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.748" L x 0.492" W (19.00mm x 12.50mm) | 0.688" (17.50mm) |
|
|
CPRX1912L-100MCTHT HIGH CURRENT POWER INDUCTOR |
269 |
|
Datasheet |
CPRX1912L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 25 A | 24.5A | Shielded | 3.81mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.748" L x 0.492" W (19.00mm x 12.50mm) | 0.688" (17.50mm) |
|
|
CPRX1912L-4R3MCTHT HIGH CURRENT POWER INDUCTOR |
315 |
|
Datasheet |
CPRX1912L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 4.3 µH | ±20% | 36 A | 38.5A | Shielded | 1.63mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.748" L x 0.492" W (19.00mm x 12.50mm) | 0.688" (17.50mm) |
|
|
CPRX1912L-150MCTHT HIGH CURRENT POWER INDUCTOR |
305 |
|
Datasheet |
CPRX1912L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 21 A | 20A | Shielded | 5.39mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.748" L x 0.492" W (19.00mm x 12.50mm) | 0.688" (17.50mm) |
|

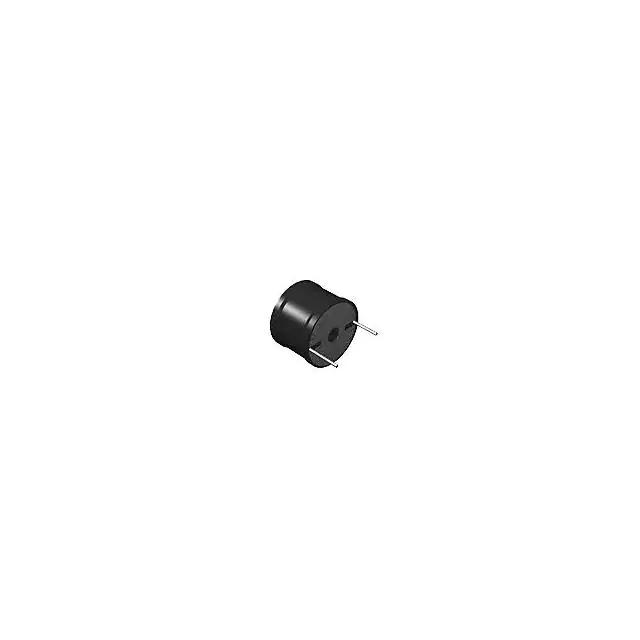

CTDR2F-471K470UH RADIAL DRUM CORE INDUCTOR |
515 |
|
Datasheet |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 470 µH | ±10% | 1.6 A | - | Unshielded | 355mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
ER1641-222KSFIXED IND 2.2UH 650MA 190MOHM TH |
463 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 2.2 µH | ±10% | 650 mA | - | Unshielded | 190mOhm Max | 44 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-472KSFIXED IND 4.7UH 380MA 550MOHM TH |
433 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 380 mA | - | Unshielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
CSCF3218-6R8MCSMD HIGH CURRENT POWER INDUCTOR |
180 |
|
Datasheet |
CSCF3218 | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 50 A | 55A | Shielded | 1.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 2-SMD, J-Lead | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.748" (19.00mm) |
|
|
CSCF3218-3R3MCSMD HIGH CURRENT POWER INDUCTOR |
154 |
|
Datasheet |
CSCF3218 | Nonstandard | Tray | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 55 A | 80A | Shielded | 1.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 2-SMD, J-Lead | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.748" (19.00mm) |
|

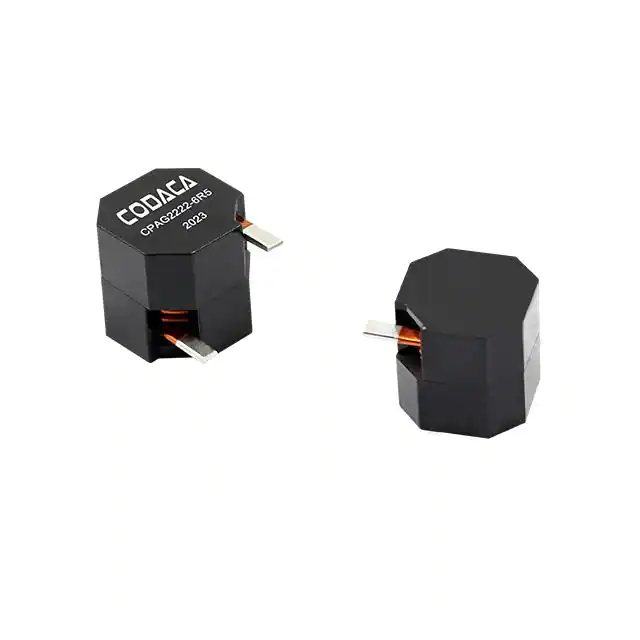

CPAG2222-8R0MCTHT HIGH CURRENT POWER INDUCTOR |
136 |
|
Datasheet |
CPAG2222 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 8 µH | ±20% | 34 A | 60A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial | - | - |
|
ER1641-221JSFIXED IND 220NH 1.1A 67 MOHM TH |
454 |
|
Datasheet |
Military, MIL-PRF-39010/01, ER1641 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±5% | 1.1 A | - | Unshielded | 67mOhm Max | 49 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
