Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XAL1010-222MEDPOWER INDUCTOR, SHIELDED, 20% TO |
619 |
|
Datasheet |
XAL1010 | Nonstandard | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 24.5 A | 34A | Shielded | 2.8mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|
XGL1010-271MEDFIXED IND 270NH 54A 570UOHM SM |
588 |
|
Datasheet |
XGL1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 270 nH | ±20% | 54 A | 117A | Shielded | 570µOhm Max | - | 96MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|
|
XGL1010-682MEDFIXED IND 6.8UH 21.2A 7MOHM SM |
480 |
|
Datasheet |
XGL1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 21.2 A | 22A | Shielded | 7mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|
|
XGL1010-333MEDFIXED IND 33UH 8.5A 33.5MOHM SM |
480 |
|
Datasheet |
XGL1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 8.5 A | 10A | Shielded | 33.5mOhm Max | - | 6.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|
|
XGL1010-822MEDFIXED IND 8.2UH 18.7A 9MOHM SM |
419 |
|
Datasheet |
XGL1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 18.7 A | 20A | Shielded | 9mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|
|
XGL1010-801MEDFIXED IND 800NH 48A 1.1MOHM SM |
397 |
|
Datasheet |
XGL1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 800 nH | ±20% | 48 A | 64A | Shielded | 1.1mOhm Max | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|
|
XAL1010-332MEDPOWER INDUCTOR, SHIELDED, 20% TO |
212 |
|
Datasheet |
XAL1010 | Nonstandard | Strip | Active | Molded | Metal Composite | 3.3 µH | ±20% | 18.2 A | 27.4A | Shielded | 4.1mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|
|
XGL1010-122MEDFIXED IND 1.2UH 41.5A 1.4MOHM SM |
174 |
|
Datasheet |
XGL1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 41.5 A | 50A | Shielded | 1.4mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|
|
CTX01-15085FIXED INDUCTOR |
275 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HCM1A1707-8R2-RFIXED IND 8.2UH 12A 8.7MOHM SMD |
3,091 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 12 A | 16A | Shielded | 8.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
SER2014-801MLDFIXED IND 800NH 27A 2.15MOHM SM |
140 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 800 nH | ±20% | 27 A | 98A | Shielded | 2.15mOhm Max | - | 104MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.550" (13.97mm) |
|

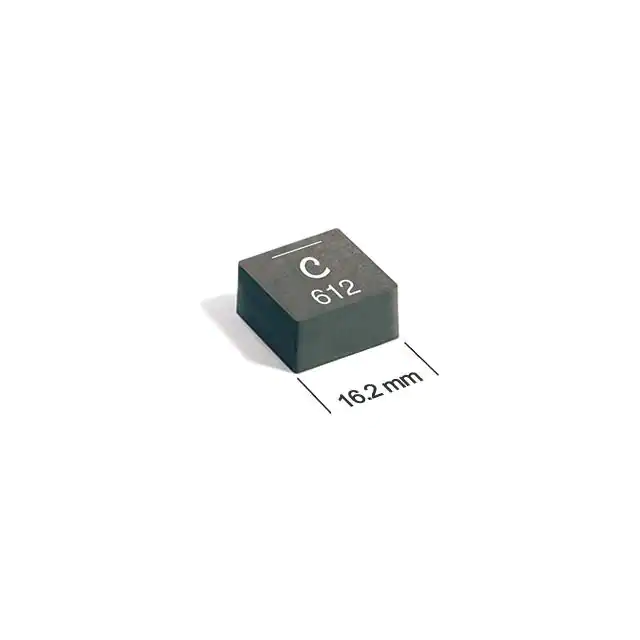

XAL1580-741MEDPOWER INDUCTOR, SHIELDED, 20% TO |
4,767 |
|
Datasheet |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 740 nH | ±20% | 43.2 A | 86A | Shielded | 860mOhm Max | - | 35.1MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.323" (8.20mm) |
|
|
XAL1580-612MEDPOWER INDUCTOR, SHIELDED, 20% TO |
3,509 |
|
Datasheet |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.1 µH | ±20% | 16.9 A | 31A | Shielded | 6.79mOhm Max | - | 11.7MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
|
|
XAL1580-132MEDPOWER INDUCTOR, SHIELDED, 20% TO |
2,959 |
|
Datasheet |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.3 µH | ±20% | 34.6 A | 65A | Shielded | 1.38mOhm Max | - | 26.2MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
|
|
XAL1580-102MEDPOWER INDUCTOR, SHIELDED, 20% TO |
2,357 |
|
Datasheet |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 40.6 A | 73.5A | Shielded | 1.12mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.323" (8.20mm) |
|
|
XAL1580-182MEDPOWER INDUCTOR, SHIELDED, 20% TO |
1,900 |
|
Datasheet |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.8 µH | ±20% | 33.2 A | 57A | Shielded | 1.93mOhm Max | - | 21.3MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
|
|
XAL1580-202MEDPOWER INDUCTOR, SHIELDED, 20% TO |
1,849 |
|
Datasheet |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 2 µH | ±20% | 29.5 A | 51A | Shielded | 2.29mOhm Max | - | 20.1MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
|
|
XAL1580-532MEDPOWER INDUCTOR, SHIELDED, 20% TO |
1,748 |
|
Datasheet |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 5.3 µH | ±20% | 19.5 A | 33A | Shielded | 5.22mOhm Max | - | 11.8MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
|
|
XAL1580-452MEDPOWER INDUCTOR, SHIELDED, 20% TO |
1,623 |
|
Datasheet |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.5 µH | ±20% | 20.4 A | 34.2A | Shielded | 4.58mOhm Max | - | 12.5MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
|
|
XAL1580-302MEDPOWER INDUCTOR, SHIELDED, 20% TO |
1,419 |
|
Datasheet |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 3 µH | ±20% | 25.6 A | 43A | Shielded | 3.1mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
