Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPEX2022L-150MCTHT HIGH CURRENT POWER INDUCTOR |
172 |
|
Datasheet |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 29 A | 33A | Shielded | 2.96mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.874" L x 0.807" W (22.20mm x 20.50mm) | 0.827" (21.00mm) |
|
|
CPEX2022L-5R2MCTHT HIGH CURRENT POWER INDUCTOR |
112 |
|
Datasheet |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 5.2 µH | ±20% | 48 A | 60A | Shielded | 1.12mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.874" L x 0.807" W (22.20mm x 20.50mm) | 0.827" (21.00mm) |
|
|
CPEX2622L-150MCTHT HIGH CURRENT POWER INDUCTOR |
177 |
|
Datasheet |
CPEX2622L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 34 A | 42A | Shielded | 2.32mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX3222L-360MCTHT HIGH CURRENT POWER INDUCTOR |
485 |
|
Datasheet |
CPEX3222L | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 36 µH | ±20% | 27 A | 36A | Shielded | 4.15mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 2 PC Pin | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
|
|
CPEX3222L-180MCTHT HIGH CURRENT POWER INDUCTOR |
150 |
|
Datasheet |
CPEX3222L | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 18 µH | ±20% | 38 A | 49A | Shielded | 2.08mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 2 PC Pin | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
|
|
AGP4233-223MEFIXED IND 22UH 34A 2.95MOHM SM |
646 |
|
Datasheet |
AGP4233 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 34 A | 32.8A | Shielded | 2.95mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.547" L x 1.409" W (39.30mm x 35.80mm) | 1.102" (28.00mm) |
|
|
AGP4233-103MEFIXED IND 10UH 34A 2.95MOHM SM |
164 |
|
Datasheet |
AGP4233 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 34 A | 56A | Shielded | 2.95mOhm Max | - | 18.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.547" L x 1.409" W (39.30mm x 35.80mm) | 1.102" (28.00mm) |
|
|
AGP4233-154MEFIXED IND 150UH 34A 2.95MOHM SM |
130 |
|
Datasheet |
AGP4233 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 34 A | 4.18A | Shielded | 2.95mOhm Max | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.547" L x 1.409" W (39.30mm x 35.80mm) | 1.102" (28.00mm) |
|
|
AGP4233-473MEFIXED IND 47UH 34A 2.95MOHM SM |
128 |
|
Datasheet |
AGP4233 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 34 A | 16A | Shielded | 2.95mOhm Max | - | 8.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.547" L x 1.409" W (39.30mm x 35.80mm) | 1.102" (28.00mm) |
|
|
AGP4233-334MEFIXED IND 330UH 17.5A 11.55MOHM |
106 |
|
Datasheet |
AGP4233 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 17.5 A | 4.6A | Shielded | 11.55mOhm Max | - | 4.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.547" L x 1.409" W (39.30mm x 35.80mm) | 1.102" (28.00mm) |
|
|
AGP4233-474MEFIXED IND 470UH 17.5A 11.55MOHM |
104 |
|
Datasheet |
AGP4233 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 17.5 A | 3A | Shielded | 11.55mOhm Max | - | 3.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.547" L x 1.409" W (39.30mm x 35.80mm) | 1.102" (28.00mm) |
|
|
AGP4233-104MEFIXED IND 100UH 34A 2.95MOHM SM |
102 |
|
Datasheet |
AGP4233 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 34 A | 6.88A | Shielded | 2.95mOhm Max | - | 5.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.547" L x 1.409" W (39.30mm x 35.80mm) | 1.102" (28.00mm) |
|
|
CPD3122SA-8R2MTHT HIGH CURRENT POWER INDUCTOR |
120 |
|
Datasheet |
CPD3122SA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 8.2 µH | ±20% | 25 A | 72A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Through Hole | Vertical, 4 PC Pin | 1.220" L x 0.886" W (31.00mm x 22.50mm) | 1.299" (33.00mm) |
|

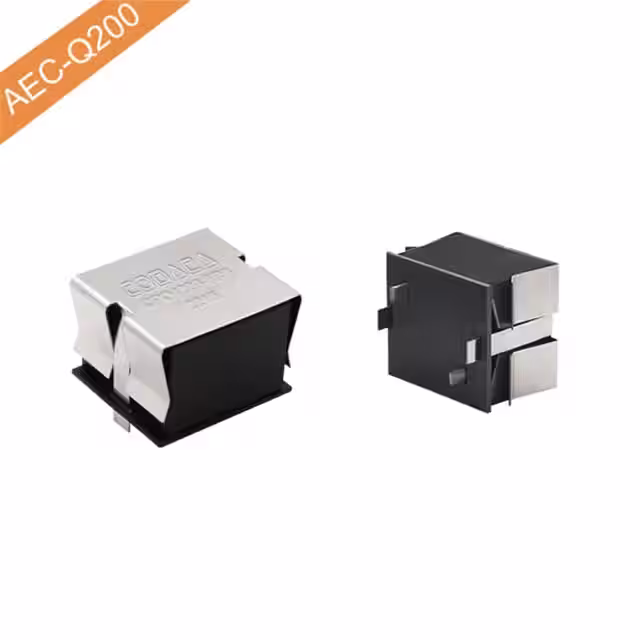

CPQ4228-100MTHT HIGH CURRENT POWER INDUCTOR |
132 |
|
Datasheet |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 34 A | 60A | Shielded | 2.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
|
CPEX2622L-7R5MCTHT HIGH CURRENT POWER INDUCTOR |
119 |
|
Datasheet |
CPEX2622L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 7.5 µH | ±20% | 48 A | 60A | Shielded | 1.15mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622L-220MCTHT HIGH CURRENT POWER INDUCTOR |
218 |
|
Datasheet |
CPEX2622L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 28 A | 37A | Shielded | 3.48mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622L-5R6MCTHT HIGH CURRENT POWER INDUCTOR |
115 |
|
Datasheet |
CPEX2622L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 56 A | 70A | Shielded | 0.84mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
HRSPD127-154MFIXED IND 150UH 1.4A 294MOHM SMD |
250 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.4 A | 1.4A | Shielded | 294mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-684MFIXED IND 680UH 680MA 1.22OHM SM |
250 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±20% | 680 mA | 670mA | Shielded | 1.22Ohm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-474MFIXED IND 470UH 830MA 800MOHM SM |
150 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 830 mA | 810mA | Shielded | 800mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
