Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

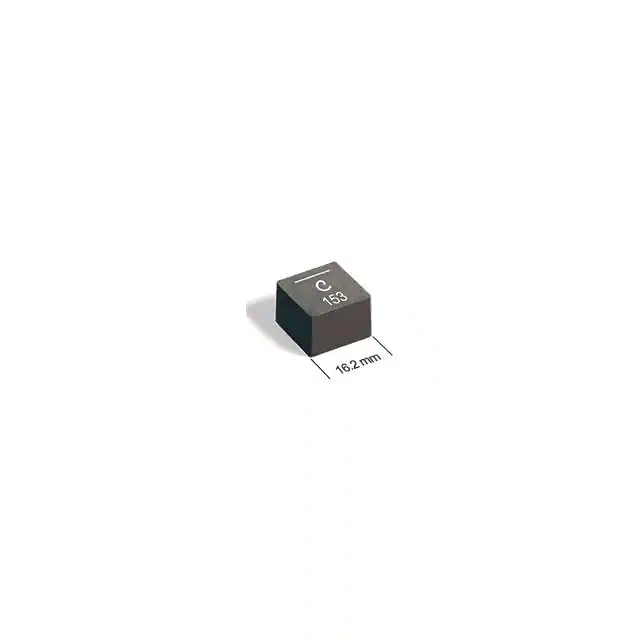

XAL1510-682MEDPOWER INDUCTOR, SHIELDED, 20% TO |
4,994 |
|
Datasheet |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 26 A | 36A | Shielded | 4.6mOhm Max | - | 11.5MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
|
XAL1510-223MEDPOWER INDUCTOR, SHIELDED, 20% TO |
3,868 |
|
Datasheet |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 22 µH | ±20% | 14 A | 18.7A | Shielded | 16mOhm Max | - | 6.3MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
|
XAL1510-472MEDPOWER INDUCTOR, SHIELDED, 20% TO |
3,458 |
|
Datasheet |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 29 A | 39A | Shielded | 3.8mOhm Max | - | 12.7MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
|
XAL1510-333MEDPOWER INDUCTOR, SHIELDED, 20% TO |
2,509 |
|
Datasheet |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 33 µH | ±20% | 12 A | 16.7A | Shielded | 20mOhm Max | - | 5.8MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.433" (11.00mm) |
|
|
XAL1510-822MEDPOWER INDUCTOR, SHIELDED, 20% TO |
939 |
|
Datasheet |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 8.2 µH | ±20% | 24 A | 30A | Shielded | 7.5mOhm Max | - | 10.8MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
|
XAL1510-103MEDPOWER INDUCTOR, SHIELDED, 20% TO |
905 |
|
Datasheet |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 10 µH | ±20% | 22 A | 26.3A | Shielded | 9mOhm Max | - | 10.1MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
TJ42UTG220LINDUCT WW SNGL COIL MISC |
120 |
|
Datasheet |
TJ | Radial, Horizontal Cylinder (Open) | Tray | Active | Toroidal | - | 22 µH | ±15% | 6.5 A | - | Unshielded | 19mOhm | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Radial | 0.661" Dia (16.80mm) | 0.319" (8.10mm) |
|
|
TJ32UTG101LINDUCT WW SNGL COIL MISC |
169 |
|
Datasheet |
TJ | Radial, Horizontal Cylinder (Open) | Tray | Active | Toroidal | - | 100 µH | ±15% | 2.4 A | - | Unshielded | 97mOhm | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Radial | 0.661" Dia (16.80mm) | 0.319" (8.10mm) |
|
|
TJ32UTG271LINDUCT WW SNGL COIL MISC |
165 |
|
Datasheet |
TJ | Radial, Horizontal Cylinder (Open) | Tray | Active | Toroidal | - | 270 µH | ±15% | 1.4 A | - | Unshielded | 250mOhm | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Radial | 0.661" Dia (16.80mm) | 0.319" (8.10mm) |
|
|
CSM2214-470MSMD HIGH CURRENT POWER INDUCTOR |
142 |
|
Datasheet |
CSM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 12.8 A | 10A | Shielded | 12.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
|
|
CSM2214-3R3MSMD HIGH CURRENT POWER INDUCTOR |
118 |
|
Datasheet |
CSM | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 36.5 A | 52A | Shielded | 1.87mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
|
|
CSM2214-330MSMD HIGH CURRENT POWER INDUCTOR |
113 |
|
Datasheet |
CSM | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 33 µH | ±20% | 12.8 A | 13.5A | Shielded | 12.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
|
|
CSM2214-220MSMD HIGH CURRENT POWER INDUCTOR |
111 |
|
Datasheet |
CSM | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 22 µH | ±20% | 23.5 A | 12.5A | Shielded | 4.32mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
|
|
CPDX1310A-4R7MCCLASS D INDUCTOR FOR DIGITAL AMP |
363 |
|
Datasheet |
CPDX1310A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 14.2 A | 36A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.571" (14.50mm) |
|
|
CSM2214-6R8MSMD HIGH CURRENT POWER INDUCTOR |
120 |
|
Datasheet |
CSM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Alloy Powder | 6.8 µH | ±20% | 36.5 A | 27A | Shielded | 1.87mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.878" L x 0.846" W (22.30mm x 21.50mm) | 0.571" (14.50mm) |
|
5500R-273KFIXED IND 27UH 6.3A 25 MOHM SMD |
600 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±10% | 6.3 A | 3.38A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
1120-6R8M-RCFIXED IND 6.8UH 11.4A 7 MOHM TH |
131 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 11.4 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
CTHR10F-101K100UH FILTER INDUCTOR |
490 |
|
Datasheet |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 10 A | 7A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.935" Dia (23.75mm) | 1.625" (41.28mm) |
|
|
XGL1313-153MEDFIXED IND 15UH 21.3A 9.2MOHM SM |
824 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 21.3 A | 17.5A | Shielded | 9.2mOhm Max | - | 8.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-152MEDFIXED IND 1.5UH 48.7A 1.2MOHM SM |
824 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 48.7 A | 53A | Shielded | 1.2mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
