Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPRX3231L-300MCTHT HIGH CURRENT POWER INDUCTOR |
120 |
|
Datasheet |
CPRX3231L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 30 µH | ±20% | 30 A | 47A | Shielded | 2.95mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.291" L x 1.260" W (32.80mm x 32.00mm) | 1.181" (30.00mm) |
|
|
CPRX3231L-100MCTHT HIGH CURRENT POWER INDUCTOR |
113 |
|
Datasheet |
CPRX3231L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 50 A | 78A | Shielded | 1.05mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.291" L x 1.260" W (32.80mm x 32.00mm) | 1.181" (30.00mm) |
|
|
CPEA2626L-220MCTHT HIGH CURRENT POWER INDUCTOR |
167 |
|
Datasheet |
CPEA2626L | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 30 A | 21A | Shielded | 2.99mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Frequency, Low Loss, Soft Saturation | Through Hole | Vertical, 2 PC Pin | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626L-180MCTHT HIGH CURRENT POWER INDUCTOR |
120 |
|
Datasheet |
CPEX2626L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 18 µH | ±20% | 33 A | 44A | Shielded | 2.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626L-6R5MCTHT HIGH CURRENT POWER INDUCTOR |
1,438 |
|
Datasheet |
CPEX2626L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 6.5 µH | ±20% | 56 A | 72A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626L-220MCTHT HIGH CURRENT POWER INDUCTOR |
599 |
|
Datasheet |
CPEX2626L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 30 A | 38A | Shielded | 2.99mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626L-4R1MCTHT HIGH CURRENT POWER INDUCTOR |
312 |
|
Datasheet |
CPEX2626L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 4.1 µH | ±20% | 60 A | 92A | Shielded | 0.64mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
ER1537-08KSFIXED IND 680NH 1.1A 150 MOHM TH |
441 |
|
Datasheet |
Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 680 nH | ±10% | 1.1 A | - | Unshielded | 150mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
ER1537-52KRFIXED IND 33UH 165MA 3 OHM TH |
230 |
|
Datasheet |
Military, MIL-PRF-39010/07, ER1537 | Axial | Tape & Reel (TR) | Active | - | Iron | 33 µH | ±10% | 165 mA | - | Unshielded | 3Ohm Max | 65 @ 2.5MHz | 19MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

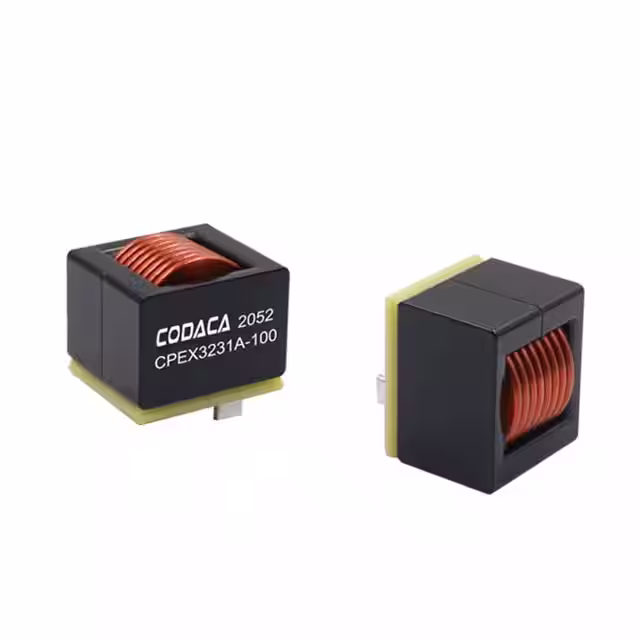

CPEX3231A-100MCTHT HIGH CURRENT POWER INDUCTOR |
1,719 |
|
Datasheet |
CPEX3231A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 50 A | 86A | Shielded | 1.05mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Radial | - | - |
|
ER1025-82KRFIXED IND 390UH 40MA 35 OHM TH |
250 |
|
Datasheet |
Military, MIL-PRF-39010/10, ER1025 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 390 µH | ±10% | 40 mA | - | Unshielded | 35Ohm Max | 30 @ 790kHz | 6.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
CPER3231-820MCTHT HIGH CURRENT POWER INDUCTOR |
119 |
|
Datasheet |
CPER3231 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 82 µH | ±20% | 26 A | 25A | Shielded | 10.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Round Wire, Fe-Si Low Core Loss | Through Hole | Vertical, 4 PC Pin | 1.291" L x 1.220" W (32.80mm x 31.00mm) | 1.161" (29.50mm) |
|
|
CPER3231-101MCTHT HIGH CURRENT POWER INDUCTOR |
899 |
|
Datasheet |
CPER3231 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 100 µH | ±20% | 25 A | 23A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Round Wire, Fe-Si Low Core Loss | Through Hole | Vertical, 4 PC Pin | - | - |
|
|
CPEX3231A-270MCTHT HIGH CURRENT POWER INDUCTOR |
602 |
|
Datasheet |
CPEX3231A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 27 µH | ±20% | 41.4 A | 43A | Shielded | 1.86mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Radial | - | - |
|
|
CPEX3231A-330MCTHT HIGH CURRENT POWER INDUCTOR |
494 |
|
Datasheet |
CPEX3231A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 33 µH | ±20% | 34 A | 30A | Shielded | 2.67mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Radial | 1.291" L x 1.260" W (32.80mm x 32.00mm) | 1.122" (28.50mm) |
|
|
CPEX3231A-180MCTHT HIGH CURRENT POWER INDUCTOR |
350 |
|
Datasheet |
CPEX3231A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 18 µH | ±20% | 45 A | 43A | Shielded | 1.72mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Radial | - | - |
|
|
CPEX3231L-4R7MCTHT HIGH CURRENT POWER INDUCTOR |
178 |
|
Datasheet |
CPEX3231L | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 84 A | 115A | Shielded | 0.47mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 2 PC Pin | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) |
|
|
CPER3231-680MCTHT HIGH CURRENT POWER INDUCTOR |
122 |
|
Datasheet |
CPER3231 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 68 µH | ±20% | 28 A | 27A | Shielded | 9.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Round Wire, Fe-Si Low Core Loss | Through Hole | Vertical, 4 PC Pin | 1.291" L x 1.220" W (32.80mm x 31.00mm) | 1.161" (29.50mm) |
|
CPQ4228-6R8MTHT HIGH CURRENT POWER INDUCTOR |
115 |
|
Datasheet |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 34 A | 75A | Shielded | 2.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
ER1641-823KRFIXED IND 82UH 170MA 2.7 OHM TH |
250 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±10% | 170 mA | - | Unshielded | 2.7Ohm Max | 50 @ 2.5MHz | 10.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
