Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL5020-332MECFIXED INDUCTOR 3.3UH SMD |
1,349 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 3.3 µH | ±20% | 6.8 A | 6.5A | Shielded | 27mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
CPLA-2-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD |
4,600 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.189" (4.80mm) |
.jpg)
|
AIRD-03-121KFIXED IND 120UH 7.2A 46 MOHM TH |
1,922 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 7.2 A | 12A | Unshielded | 46mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|

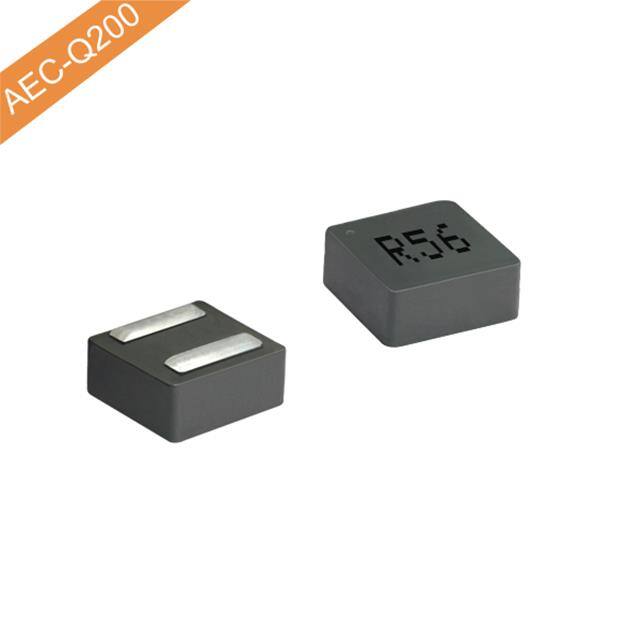

CSEB0660H-330MSMD MOLDING POWER CHOKE |
10,142 |
|
Datasheet |
CSEB0660H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 3.8 A | 3.2A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
CSEB0660H-220MSMD MOLDING POWER CHOKE |
4,411 |
|
Datasheet |
CSEB0660H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 22 µH | ±20% | 4.7 A | 4.7A | Shielded | 63.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
CSEB0660H-1R5MSMD MOLDING POWER CHOKE |
700 |
|
Datasheet |
CSEB0660H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 16.3 A | 16.3A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
CSEB0660H-1R2MSMD MOLDING POWER CHOKE |
660 |
|
Datasheet |
CSEB0660H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 17.3 A | 17.3A | Shielded | 5.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
CTM2474F-220L22UH AXIAL MOLDED INDUCTOR |
1,753 |
|
Datasheet |
CTM2474F | Axial | Bulk | Active | Molded | - | 22 µH | ±15% | 2.66 A | 1.4A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
CTM3F-680K68UH AXIAL MOLDED INDUCTOR |
1,797 |
|
Datasheet |
CTM3F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±10% | 220 mA | - | Unshielded | 4.2Ohm Max | 55 @ 2.5MHz | 11MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial | 0.190" Dia x 0.441" L (4.82mm x 11.20mm) | - |
|
|
CTM3F-R15K.15UH AXIAL MOLDED INDUCTOR |
444 |
|
Datasheet |
CTM3F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±10% | 3.05 A | - | Unshielded | 30mOhm Max | 50 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.190" Dia x 0.441" L (4.82mm x 11.20mm) | - |
|
CTS1F-121K120UH AXL MOLDED SHLD INDUCTOR |
391 |
|
Datasheet |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 120 µH | ±10% | 184 mA | - | Shielded | 5.2Ohm Max | 58 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
|
CTM3F-182JAXIAL MOLDED INDUCTOR |
192 |
|
Datasheet |
CTM3F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 mH | ±5% | - | - | Unshielded | - | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.190" Dia x 0.441" L (4.82mm x 11.20mm) | - |
|
|
XAL5030-472MECFIXED IND 4.7UH 5.9A 40MOHM SM |
39,284 |
|
Datasheet |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 5.9 A | 6.7A | Shielded | 40mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XAL5030-332MECFIXED IND 3.3UH 8.1A 23.3MOHM SM |
32,359 |
|
Datasheet |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 8.1 A | 8.7A | Shielded | 23.3mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XAL5030-222MECFIXED IND 2.2UH 9.7A 14.5MOHM SM |
29,877 |
|
Datasheet |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 9.7 A | 9.2A | Shielded | 14.5mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XAL5030-801MECFIXED IND 800NH 13A 5.65MOHM SM |
23,789 |
|
Datasheet |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 800 nH | ±20% | 13 A | 18.5A | Shielded | 5.65mOhm Max | - | 63MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XAL5030-102MECFIXED IND 1UH 11.1A 9.4MOHM SM |
11,695 |
|
Datasheet |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 11.1 A | 14A | Shielded | 9.4mOhm Max | - | 68MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
XGL5030-183MECPOWER INDUCTOR, SHIELDED, COMPOS |
11,618 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 18 µH | ±20% | 4 A | 3.3A | Shielded | 97.7mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XAL5030-122MECFIXED IND 1.2UH 10.4A 12.4MOHM |
5,878 |
|
Datasheet |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 10.4 A | 12.5A | Shielded | 12.4mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XAL5030-601MECFIXED IND 600NH 17.7A 4.52MOHM |
5,796 |
|
Datasheet |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 600 nH | ±20% | 17.7 A | 19.8A | Shielded | 4.52mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
