Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS1246H-683KEDFIXED INDUCTOR 68UH SMD |
1,874 |
|
Datasheet |
MSS1246H | Nonstandard | Strip | Active | Drum Core | Ferrite | 68 µH | ±10% | 1.21 A | 2.3A | Shielded | 150mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.191" (4.85mm) |
|
|
MSS1246H-422MEDFIXED INDUCTOR 4.2UH SMD |
1,855 |
|
Datasheet |
MSS1246H | Nonstandard | Strip | Active | Drum Core | Ferrite | 4.2 µH | ±20% | 4.3 A | 9.5A | Shielded | 13.5mOhm Max | - | 46MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.191" (4.85mm) |
|
|
MSS1246H-223MEDFIXED INDUCTOR 22UH SMD |
1,844 |
|
Datasheet |
MSS1246H | Nonstandard | Strip | Active | Drum Core | Ferrite | 22 µH | ±20% | 2.05 A | 4.1A | Shielded | 60mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.191" (4.85mm) |
|
MSS1278-183MLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,827 |
|
Datasheet |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | 18 µH | ±20% | 3 A | 6.1A | Shielded | 34.3mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|
|
MSS1246H-473KEDFIXED INDUCTOR 47UH SMD |
1,813 |
|
Datasheet |
MSS1246H | Nonstandard | Strip | Active | Drum Core | Ferrite | 47 µH | ±10% | 1.51 A | 2.8A | Shielded | 105mOhm Max | - | 12.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.191" (4.85mm) |
|
|
MSS1246H-103MEDFIXED INDUCTOR 10UH SMD |
1,755 |
|
Datasheet |
MSS1246H | Nonstandard | Strip | Active | Drum Core | Ferrite | 10 µH | ±20% | 3 A | 6.1A | Shielded | 28mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.191" (4.85mm) |
|
|
MSS1278-123MLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,754 |
|
Datasheet |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | 12 µH | ±20% | 3.7 A | 8.84A | Shielded | 25.8mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|
|
MSS1246H-102MEDFIXED INDUCTOR 1UH SMD |
1,751 |
|
Datasheet |
MSS1246H | Nonstandard | Strip | Active | Drum Core | Ferrite | 1 µH | ±20% | 6.8 A | 19.6A | Shielded | 6mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.191" (4.85mm) |
|
|
MSS1278-682MLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,355 |
|
Datasheet |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | 6.8 µH | ±20% | 4.2 A | 11.3A | Shielded | 21.3mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|
|
MSS1278-274KLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,170 |
|
Datasheet |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | 270 µH | ±10% | 900 mA | 1.74A | Shielded | 461.8mOhm Max | - | 3.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|
|
MSS1278-562MLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,127 |
|
Datasheet |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | 5.6 µH | ±20% | 4.3 A | 12.2A | Shielded | 17.5mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|
|
MSS1278-273MLDPOWER INDUCTOR, SHIELDED, 10/20% |
715 |
|
Datasheet |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | 27 µH | ±20% | 2.6 A | 5.8A | Shielded | 50mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|
PG0255.182NLFIXED IND 1.8UH 16A 5 MOHM SMD |
1,026 |
|
Datasheet |
PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 1.8 µH | ±15% | 16 A | 21A | Shielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

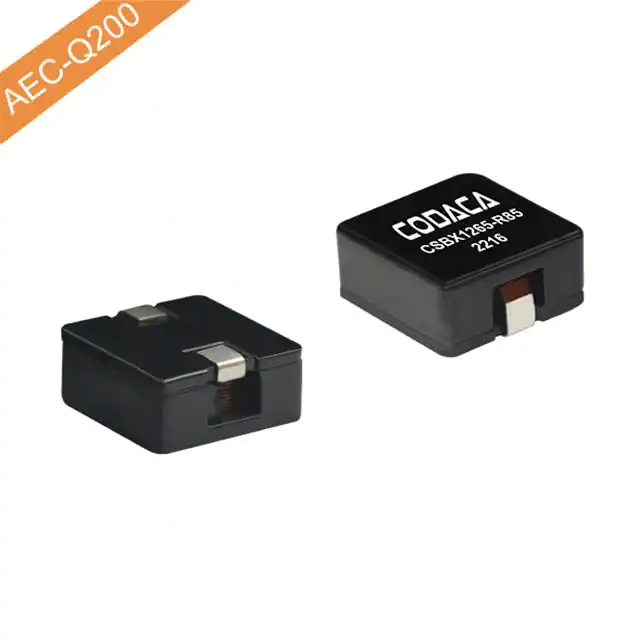

CSBX1265-470MSMD HIGH CURRENT POWER INDUCTOR |
726 |
|
Datasheet |
CSBX1265 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 47 µH | ±20% | 4 A | 7.2A | Shielded | 62.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-4R7MSMD HIGH CURRENT POWER INDUCTOR |
400 |
|
Datasheet |
CSBX1265 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 14 A | 27A | Shielded | 6.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-5R8MSMD HIGH CURRENT POWER INDUCTOR |
387 |
|
Datasheet |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 5.8 µH | ±20% | 12 A | 24A | Shielded | 7.97mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
CSBX1235-4R7MSMD HIGH CURRENT POWER INDUCTOR |
385 |
|
Datasheet |
CSBX1235 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 9 A | 15.2A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.126" (3.20mm) |
|
|
CSBX1265-2R0MSMD HIGH CURRENT POWER INDUCTOR |
353 |
|
Datasheet |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 2 µH | ±20% | 23 A | 41A | Shielded | 2.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-330MSMD HIGH CURRENT POWER INDUCTOR |
314 |
|
Datasheet |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 33 µH | ±20% | 5.5 A | 8.8A | Shielded | 30.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-9R2MSMD HIGH CURRENT POWER INDUCTOR |
297 |
|
Datasheet |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 9.2 µH | ±20% | 12 A | 16.3A | Shielded | 8.35mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
