Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX1265-2R7MSMD HIGH CURRENT POWER INDUCTOR |
292 |
|
Datasheet |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 2.7 µH | ±20% | 20 A | 35A | Shielded | 3.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-180MSMD HIGH CURRENT POWER INDUCTOR |
291 |
|
Datasheet |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 18 µH | ±20% | 8.5 A | 11.2A | Shielded | 17.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
CTX02-14121FIXED IND 16UH |
3,000 |
|
- |
- | - | Tray | Obsolete | - | - | 16 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CT262LYF-221KRAD LEADED FIXED INDUCTOR LOW PR |
985 |
|
Datasheet |
ct262lyf | - | Bulk | Active | - | - | 220 µH | ±10% | - | - | - | 3Ohm | - | 4.5GHz | - | - | - | - | Through Hole | - | - | - |
|
|
DO5022P-104MLDFIXED IND 100UH 1.8A 190MOHM SM |
6,727 |
|
Datasheet |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.8 A | 3A | Unshielded | 190mOhm Max | - | 7MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-333MLDFIXED IND 33UH 3A 66MOHM SM |
5,534 |
|
Datasheet |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | - | 3 A | 6.1A | Unshielded | 66mOhm Max | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-224MLDFIXED IND 220UH 1.2A 380MOHM SM |
4,965 |
|
Datasheet |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-683MLDFIXED IND 68UH 2.3A 130MOHM SM |
2,787 |
|
Datasheet |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | - | 2.3 A | 4.1A | Unshielded | 130mOhm Max | - | 8MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-684MLDFIXED IND 680UH 720MA 1.1OHM SM |
2,579 |
|
Datasheet |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 720 mA | 1.2A | Unshielded | 1.1Ohm Max | - | 2.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-154MLDFIXED IND 150UH 1.5A 250MOHM SM |
2,488 |
|
Datasheet |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 1.5 A | 2.6A | Unshielded | 250mOhm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-473MLDFIXED IND 47UH 2.6A 86MOHM SM |
1,974 |
|
Datasheet |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | - | 2.6 A | 4.7A | Unshielded | 86mOhm Max | - | 9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-102MLDFIXED IND 1UH 8.6A 9MOHM SM |
1,507 |
|
Datasheet |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 8.6 A | 20A | Unshielded | 9mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-105MLDFIXED IND 1MH 560MA 1.8OHM SM |
654 |
|
Datasheet |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 560 mA | 1A | Unshielded | 1.8Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
CT622LYF-151JRADIAL LEADED FIXED INDUCTOR |
1,018 |
|
Datasheet |
ct622lyf | - | Bulk | Active | - | - | 150 µH | ±5% | - | - | - | 370mOhm | - | 3.2MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT622LYF-221KRADIAL LEADED FIXED INDUCTOR |
1,000 |
|
Datasheet |
ct622lyf | - | Bulk | Active | - | - | 220 µH | ±10% | - | - | - | 650mOhm | - | 2.7MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT622LYF-100KRADIAL LEADED FIXED INDUCTOR |
947 |
|
Datasheet |
ct622lyf | - | Bulk | Active | - | - | 10 µH | ±10% | - | - | - | 40mOhm | - | 14MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|

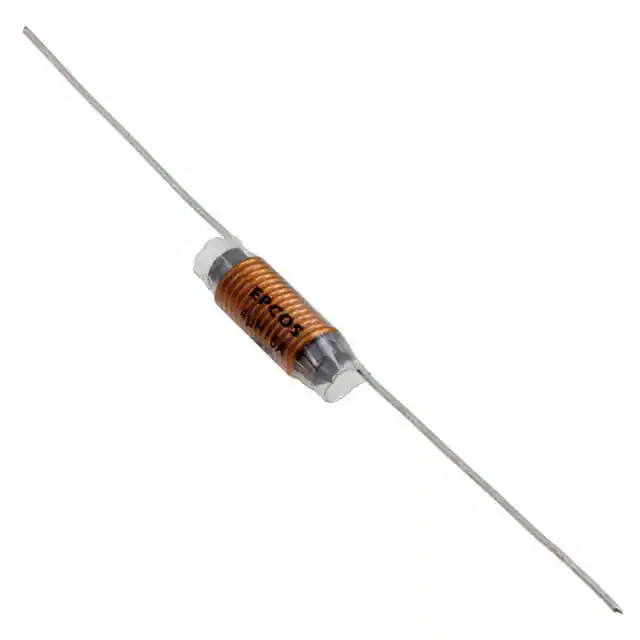

B82111B0000C011FIXED IND 4UH 6A 14 MOHM TH |
901 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4 µH | ±20% | 6 A | - | Unshielded | 14mOhm | - | 105MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.295" Dia x 0.945" L (7.50mm x 24.00mm) | - |
|
|
VSEB0530H-R56MCAUTOMOTIVE SMD MOLDING POWER CHK |
500 |
|
Datasheet |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.56 µH | ±20% | 16 A | 14A | Shielded | 4.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
|
|
VSEB0530H-1R0MCAUTOMOTIVE SMD MOLDING POWER CHK |
500 |
|
Datasheet |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 12 A | 14.3A | Shielded | 8.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
|
|
VSEB0530H-R82MCAUTOMOTIVE SMD MOLDING POWER CHK |
500 |
|
Datasheet |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.82 µH | ±20% | 11.8 A | 13A | Shielded | 5.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
