Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

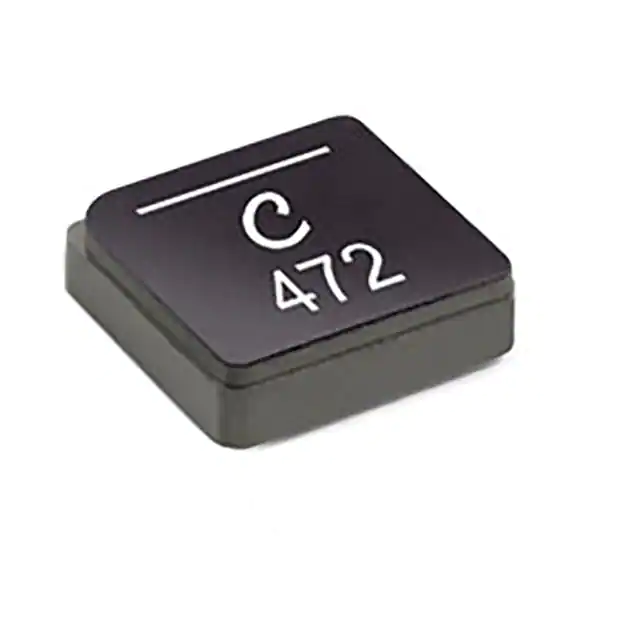

XGL6020-102MECFIXED INDUCTOR 1UH SMD |
2,178 |
|
Datasheet |
XGL6020 | Nonstandard | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 11 A | 13.4A | Shielded | 8mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.083" (2.10mm) |
|
XGL5030-152MECPOWER INDUCTOR, SHIELDED, COMPOS |
2,174 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.5 µH | ±20% | 15.4 A | 12.2A | Shielded | 7.9mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XGL6020-332MECFIXED INDUCTOR 3.3UH SMD |
2,090 |
|
Datasheet |
XGL6020 | Nonstandard | Strip | Active | Molded | Metal Composite | 3.3 µH | ±20% | 6.4 A | 7.6A | Shielded | 24.3mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.083" (2.10mm) |
|
|
XGL5030-123MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,965 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 12 µH | ±20% | 5.4 A | 4A | Shielded | 56.5mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XGL5030-472MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,914 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 8.5 A | 6.7A | Shielded | 24.5mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XGL5030-182MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,908 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.8 µH | ±20% | 14.1 A | 10.6A | Shielded | 8.7mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XGL5030-562MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,810 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 5.6 µH | ±20% | 7.9 A | 6A | Shielded | 27mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XGL5030-181MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,678 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 180 nH | ±20% | 31.8 A | 30A | Shielded | 1.6mOhm Max | - | 160MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.126" (3.20mm) |
|
CSEB0730H-4R7MSMD MOLDING POWER CHOKE |
1,612 |
|
Datasheet |
CSEB0730H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 9.2 A | 9A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.126" (3.20mm) |
|
PA2729.113NLFIXED IND 10.9UH 12.5A 5.8 MOHM |
1,418 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 10.9 µH | ±15% | 12.5 A | 14.7A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
XGL5030-682MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,266 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 7.3 A | 5.5A | Shielded | 32.1mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XGL5030-601MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,034 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 600 nH | ±20% | 23 A | 18.7A | Shielded | 3.2mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.126" (3.20mm) |
|
CSEB0770H-100MSMD MOLDING POWER CHOKE |
840 |
|
Datasheet |
CSEB0770H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 9.1 A | 8.9A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.280" (7.10mm) |
|
|
XGL5030-102MECPOWER INDUCTOR, SHIELDED, COMPOS |
698 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 17.8 A | 14A | Shielded | 5.8mOhm Max | - | 52MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
CSEB0770H-5R6MSMD MOLDING POWER CHOKE |
544 |
|
Datasheet |
CSEB0770H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 5.6 µH | ±20% | 11.5 A | 12A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.280" (7.10mm) |
|
|
XGL5030-401MECPOWER INDUCTOR, SHIELDED, COMPOS |
511 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 400 nH | ±20% | 25.1 A | 23A | Shielded | 2.7mOhm Max | - | 88MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.126" (3.20mm) |
|
|
CSEB0730H-1R5MSMD MOLDING POWER CHOKE |
500 |
|
Datasheet |
CSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 17 A | 16A | Shielded | 6.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.126" (3.20mm) |
|
|
CSEB0730H-3R3MSMD MOLDING POWER CHOKE |
500 |
|
Datasheet |
CSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 10.1 A | 10.8A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.126" (3.20mm) |
|
|
CSEB0770H-3R3MSMD MOLDING POWER CHOKE |
393 |
|
Datasheet |
CSEB0770H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 15.3 A | 16A | Shielded | 8.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.280" (7.10mm) |
|
|
CSEB0770H-6R8MSMD MOLDING POWER CHOKE |
248 |
|
Datasheet |
CSEB0770H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 10 A | 10A | Shielded | 16.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.280" (7.10mm) |
