Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGJ7045TS-101MR60-HFIXED IND 100UH 610MA 390MOHM SM |
795 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 610 mA | 600mA | Shielded | 390mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
LGJ7045TS-331MR35-HFIXED IND 330UH 370MA 1.15OHM SM |
761 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 370 mA | 350mA | Shielded | 1.15Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
LGJ7045TS-470MR90-HFIXED IND 47UH 930MA 180MOHM SMD |
681 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 930 mA | 900mA | Shielded | 180mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
LGJ7045TS-150M1R5-HFIXED IND 15UH 1.46A 68 MOHM SMD |
669 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.46 A | 1.5A | Shielded | 68mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
LGJ7045TS-151MR50-HFIXED IND 150UH 540MA 550MOHM SM |
518 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 540 mA | 500mA | Shielded | 550mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
LGJ7045TS-330M1R1-HFIXED IND 33UH 1.11A 120MOHM SMD |
368 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.11 A | 1.1A | Shielded | 120mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
HC1-R30-RFIXED IND 300NH 51.42A 0.36 MOHM |
1,360 |
|
Datasheet |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±15% | 51.42 A | 31.8A | Unshielded | 0.36mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|
|
LGJ7045TS-100M1R8-HFIXED IND 10UH 1.81A 47 MOHM SMD |
336 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.81 A | 1.8A | Shielded | 47mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

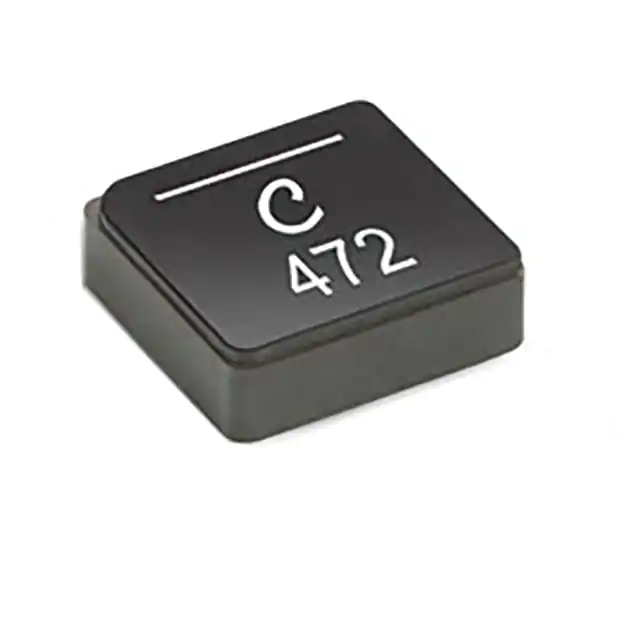

XGL5020-152MECFIXED INDUCTOR 1.5UH SMD |
9,322 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 1.5 µH | ±20% | 9.5 A | 8.9A | Shielded | 13.2mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-822MECFIXED INDUCTOR 8.2UH SMD |
6,140 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 8.2 µH | ±20% | 3.3 A | 4.1A | Shielded | 73.6mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-102MECFIXED INDUCTOR 1UH SMD |
5,458 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 1 µH | ±20% | 11 A | 11.4A | Shielded | 8.7mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-681MECFIXED INDUCTOR 0.68UH SMD |
5,406 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 680 nH | ±20% | 12.9 A | 14A | Shielded | 6.1mOhm Max | - | 65MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-222MECFIXED INDUCTOR 2.2UH SMD |
5,140 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 2.2 µH | ±20% | 7.8 A | 7.6A | Shielded | 18.8mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-471MECFIXED INDUCTOR 0.47UH SMD |
4,576 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 470 nH | ±20% | 16 A | 15.7A | Shielded | 4.3mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-472MECFIXED INDUCTOR 4.7UH SMD |
4,329 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 4.7 µH | ±20% | 5.7 A | 5.3A | Shielded | 41.5mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-161MECFIXED INDUCTOR 0.16UH SMD |
4,177 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 160 nH | ±20% | 21.2 A | 27A | Shielded | 2.1mOhm Max | - | 150MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-331MECFIXED INDUCTOR 0.33UH SMD |
4,175 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 330 nH | ±20% | 17.2 A | 18.8A | Shielded | 3.2mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-122MECFIXED INDUCTOR 1.2UH SMD |
3,867 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 1.2 µH | ±20% | 10 A | 10A | Shielded | 10.3mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-682MECFIXED INDUCTOR 6.8UH SMD |
2,808 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 6.8 µH | ±20% | 3.6 A | 4.5A | Shielded | 63.5mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-561MECFIXED INDUCTOR 0.56UH SMD |
2,289 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 560 nH | ±20% | 14 A | 15.2A | Shielded | 4.9mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
