Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XFL4020-472MECFIXED IND 4.7UH 5A 57.4MOHM SM |
59,102 |
|
Datasheet |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 5 A | 2.7A | Shielded | 57.4mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
XFL4020-102MECFIXED IND 1UH 11A 11.9MOHM SM |
56,942 |
|
Datasheet |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 11 A | 5.4A | Shielded | 11.9mOhm Max | - | 64MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
XFL4020-152MECFIXED IND 1.5UH 9.1A 15.8MOHM SM |
50,914 |
|
Datasheet |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 9.1 A | 4.6A | Shielded | 15.8mOhm Max | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
XFL4020-121MECFIXED IND 120NH 22A 1.6MOHM SM |
40,376 |
|
Datasheet |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 120 nH | ±20% | 22 A | 13.7A | Shielded | 1.6mOhm Max | - | 210MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
XFL4020-222MECFIXED IND 2.2UH 8A 23.5MOHM SM |
14,303 |
|
Datasheet |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 8 A | 3.7A | Shielded | 23.5mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
XFL4020-561MECFIXED IND 560NH 13A 6.15MOHM SM |
1,920 |
|
Datasheet |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 13 A | 6.3A | Shielded | 6.15mOhm Max | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
XFL4020-471MECFIXED IND 470NH 17A 5.1MOHM SM |
1,907 |
|
Datasheet |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 17 A | 7.5A | Shielded | 5.1mOhm Max | - | 83MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
XFL4020-241MECFIXED IND 240NH 20A 2.7MOHM SM |
1,346 |
|
Datasheet |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 240 nH | ±20% | 20 A | 10.2A | Shielded | 2.7mOhm Max | - | 125MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
CT181LYF-333JRAD LEADED FIXED SHLDED INDUCTOR |
1,015 |
|
Datasheet |
ct181lyf | - | Bulk | Active | - | - | 33 mH | ±5% | - | - | - | 26Ohm | - | 160kHz | - | -20°C ~ 125°C | - | - | Through Hole | - | - | - |
|
SL2026B-R08LHFSMD Power Bead 80nH 0.27mOhm |
800 |
|
Datasheet |
SL2026 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 80 nH | ±15% | 53 A | 52A | Shielded | 0.27mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.260" (6.60mm) |
|
|
SL2026B-R11MHFSMD Power Bead 0.11uH 0.27mOhm |
600 |
|
Datasheet |
SL2026 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 110 nH | ±20% | 53 A | 32A | Shielded | 0.27mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.260" (6.60mm) |
|

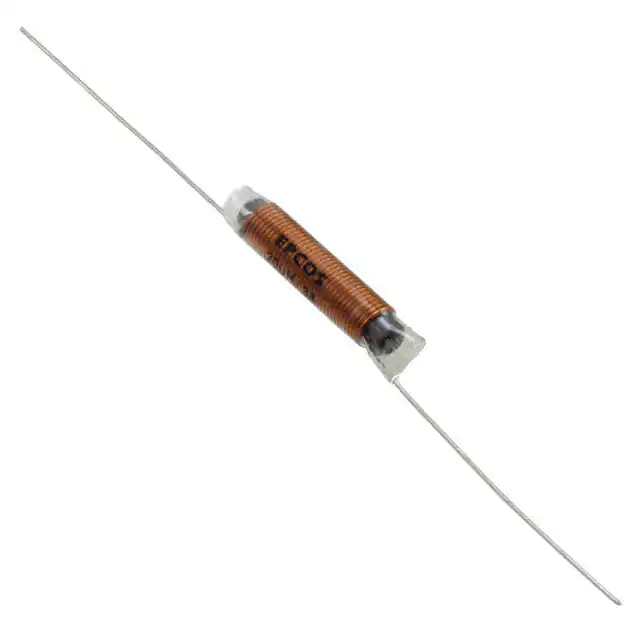

B82111B0000C020FIXED IND 20UH 3A 54 MOHM TH |
319 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 20 µH | ±20% | 3 A | - | Unshielded | 54mOhm | - | 125MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.236" Dia x 1.142" L (6.00mm x 29.00mm) | - |
|
|
SL2026-R10MHFSMD Power Bead 0.1uH 0.47mOhm |
300 |
|
Datasheet |
SL2026 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±20% | 40 A | 35A | Shielded | 0.47mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.260" (6.60mm) |
|
HCM1A1305-R47-RFIXED IND 470NH 33A 0.92MOHM SMD |
2,893 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 33 A | 36A | Shielded | 0.92mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
7445302FIXED IND 2.2UH 2.76A 0.045OHM |
997 |
|
Datasheet |
WE-PD3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | - | 2.2 µH | ±20% | 2.76 A | 6A | Shielded | 45mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
CSEB0550H-6R8MSMD MOLDING POWER CHOKE |
896 |
|
Datasheet |
CSEB0550H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 6.4 A | 5.4A | Shielded | 29.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.201" (5.10mm) |
|
|
CSEB0550H-100MSMD MOLDING POWER CHOKE |
800 |
|
Datasheet |
CSEB0550H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 5 A | 4.5A | Shielded | 43.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.201" (5.10mm) |
|
CSEB0520H-1R0MSMD MOLDING POWER CHOKE |
500 |
|
Datasheet |
CSEB0520H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1 µH | ±20% | 9.6 A | 9.5A | Shielded | 10.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|
|
CSEB0520H-1R2MSMD MOLDING POWER CHOKE |
495 |
|
Datasheet |
CSEB0520H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 9 A | 8.7A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.087" (2.20mm) |
|
CSEB0530H-1R2MSMD MOLDING POWER CHOKE |
470 |
|
Datasheet |
CSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 10.5 A | 11A | Shielded | 8.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.126" (3.20mm) |
