Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPL-AT2512-3R3FIXED IND 3.3UH 2A 121 MOHM SMD |
1,994 |
|
Datasheet |
MPL-AT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | - | 2 A | 2.7A | Unshielded | 121mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MPL-AT2512-R33FIXED IND 330NH 6.4A 13.5MOHM SM |
1,980 |
|
Datasheet |
MPL-AT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 330 nH | - | 6.4 A | 8.5A | Unshielded | 13.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
MPI4012V2-R47-RFIXED IND 470NH 5.6A 23 MOHM SMD |
2,601 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 5.6 A | 6.8A | Shielded | 23mOhm Max | - | 106MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.047" (1.20mm) |
|
|
MPI4012V2-1R0-RFIXED IND 1UH 4.3A 46.5 MOHM SMD |
4,445 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 4.3 A | 6.5A | Shielded | 46.5mOhm Max | - | 64MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.047" (1.20mm) |
|
|
MPI4012V2-R68-RFIXED IND 680NH 4.5A 33.5MOHM SM |
1,423 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 4.5 A | 6.7A | Shielded | 33.5mOhm Max | - | 98MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.047" (1.20mm) |
|
|
MPI4012V2-1R5-RFIXED IND 1.5UH 3.3A 66 MOHM SMD |
4,782 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 3.3 A | 4.3A | Shielded | 66mOhm Max | - | 63MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.047" (1.20mm) |
|
MPI2510V2-R33-RIND 0.33UH 6.6A 2.5X2.0X1.0 SM |
2,638 |
|
- |
MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | 330 nH | ±20% | 4.8 A | 6.6A | Shielded | 20mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
UP2UC-100-RFIXED IND 10UH 3.9A 38 MOHM SMD |
1,848 |
|
Datasheet |
UNI-PAC™ 2UC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.9 A | 3.8A | Unshielded | 38mOhm Max | - | 30MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.21mm) |
|
|
UP2UC-470-RFIXED IND 47UH 1.8A 140 MOHM SMD |
4,324 |
|
Datasheet |
UNI-PAC™ 2UC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.8 A | 1.6A | Unshielded | 140mOhm Max | - | 12MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.21mm) |
|
0420CDMCCDS-R56MCFIXED IND 560NH 8.1A 16MOHM SMD |
12,000 |
|
Datasheet |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 8.1 A | 12A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
UP2UC-102-RFIXED IND 1MH 300MA 3 OHM SMD |
3,078 |
|
Datasheet |
UNI-PAC™ 2UC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 300 mA | 300mA | Unshielded | 3Ohm Max | - | 2MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.21mm) |
|
|
LD2-221-RFIXED IND 220UH 1A 960 MOHM SMD |
1,419 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1 A | 790mA | Unshielded | 960mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
RL855-331K-RCFIXED IND 330UH 440MA 1.47OHM TH |
4,860 |
|
Datasheet |
RL855 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 440 mA | - | Unshielded | 1.47Ohm Max | 20 @ 790kHz | 3.2MHz | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|

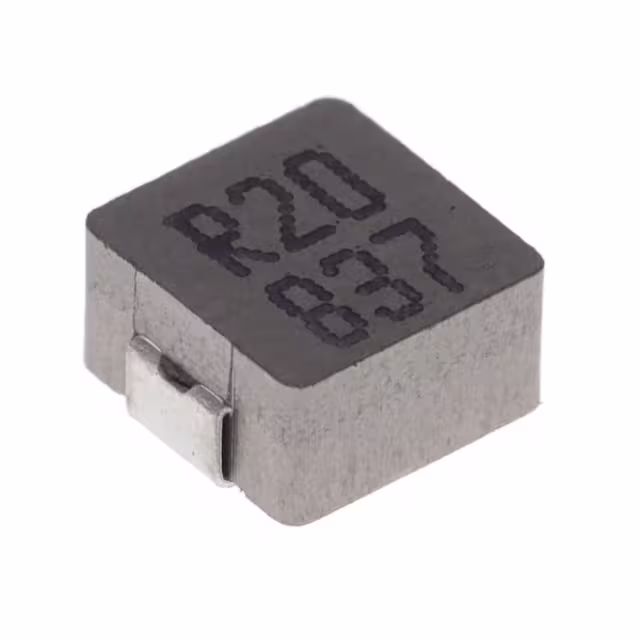

0530CDMCCDS-R20MCFIXED IND 200NH 14A 3.9MOHM SMD |
1,449 |
|
Datasheet |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 200 nH | ±20% | 14 A | 22A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
P0250.562NLTFIXED IND 5.6UH 5.3A 20 MOHM SMD |
3,043 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±15% | 5.3 A | 12A | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
CT1008CSF-151GSMD CER CORE WIRE-WOUND INDUCTOR |
6,270 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 150 nH | ±2% | - | - | - | 700mOhm | - | 850MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-150JSMD CER CORE WIRE-WOUND INDUCTOR |
5,770 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 15 nH | ±5% | - | - | - | 100mOhm | - | 2.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-331GSMD CER CORE WIRE-WOUND INDUCTOR |
4,240 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±2% | - | - | - | 1.1Ohm | - | 570MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
MHA0420NSGR47MFIXED IND 470NH 7A 14 MOHM SMD |
3,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 7 A | 9.5A | - | 14mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.071" (1.80mm) |
|
ASPI-0428S-151M-TFIXED IND 150UH 240MA 1.35OHM SM |
3,636 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 240 mA | - | Shielded | 1.35Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
