PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

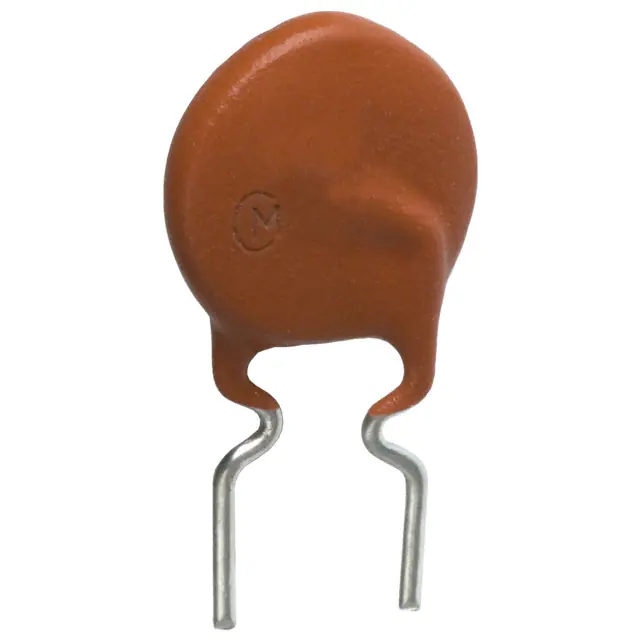

PTGL09AR390N0B52A0PTC RESET FUSE 250V 115MA RADIAL |
7,306 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 250V | 115 mA | 245 mA | 600 mA | - | - | - | 39 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.236" T (10.00mm x 6.00mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL09AR250H8B52B0PTC RESET FUSE 265V 150MA RADIAL |
4,829 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 150 mA | 290 mA | 1 A | - | - | - | 25 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.236" T (10.00mm x 6.00mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
|
CMF-SD25-2PTC RESET FUSE 230V 130MA 4SMD |
8,226 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 130 mA | 260 mA | 2.8 A | 300 ms | - | - | 25 Ohms | - | - | - | - | Surface Mount | 0.402" L x 0.354" W (10.20mm x 9.00mm) | - | 0.425" (10.80mm) | - |
|

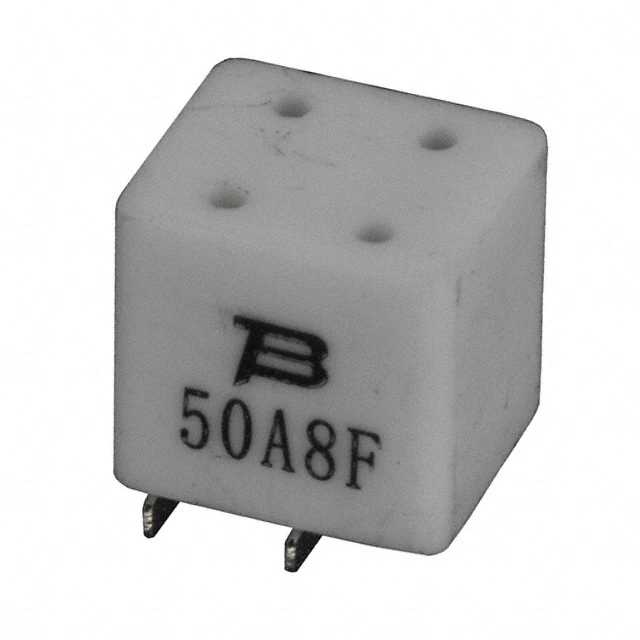

CMF-SD50A-10-2PTC RESET FUSE 230V 90MA 4SMD |
8,646 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 90 mA | 190 mA | 3 A | 100 ms | - | - | 50 Ohms | - | - | - | - | Surface Mount | 0.319" L x 0.282" W (8.10mm x 7.15mm) | - | 0.335" (8.50mm) | - |
|

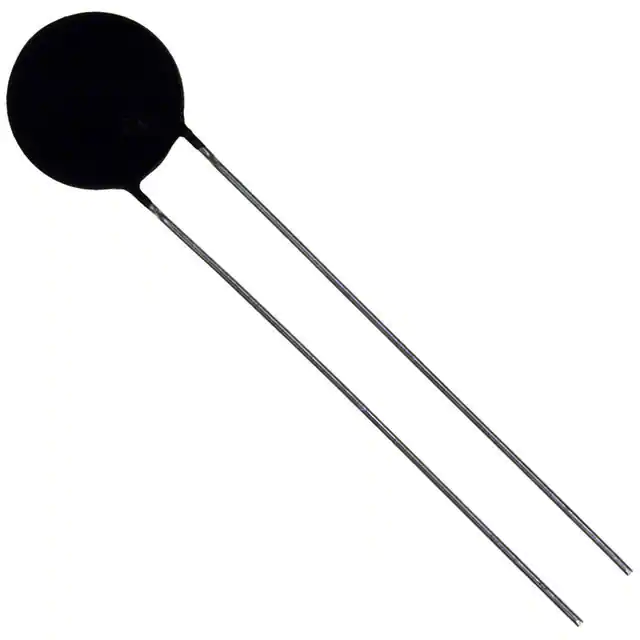

YPBL2.30TPTC RESET FUSE 80V 450MA RADIAL |
8,550 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 450 mA | 900 mA | 8 A | - | - | - | 2.3 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
YPBL5.60TPTC RESET FUSE 80V 250MA RADIAL |
6,815 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 250 mA | 500 mA | 4.3 A | - | - | - | 5.6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
|
YPBL9.40TPTC RESET FUSE 80V 150MA RADIAL |
6,423 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 150 mA | 300 mA | 3 A | - | - | - | 9.4 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPBL0025TPTC RESET FUSE 80V 85MA RADIAL |
9,673 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 85 mA | 170 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPCL0006TPTC RESET FUSE 265V 330MA RADIAL |
3,096 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 265V | 330 mA | 660 mA | 4.1 A | - | - | - | 6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
YPCL0025TPTC RESET FUSE 265V 100MA RADIAL |
8,459 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0120TPTC RESET FUSE 265V 35MA RADIAL |
7,011 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 265V | 35 mA | 80 mA | 400 mA | - | - | - | 120 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPDL0600TPTC RESET FUSE 420V 21MA RADIAL |
7,676 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 420V | 21 mA | 39 mA | 200 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPEK1200TPTC RESET FUSE 550V 15MA RADIAL |
7,348 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 550V | 15 mA | 30 mA | 100 mA | - | - | - | 1.2 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPEK3500TPTC RESET FUSE RADIAL DISC |
3,711 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.157" Dia x 0.157" T (4.00mm x 4.00mm) | 0.217" (5.50mm) | - | 0.200" (5.08mm) |
|

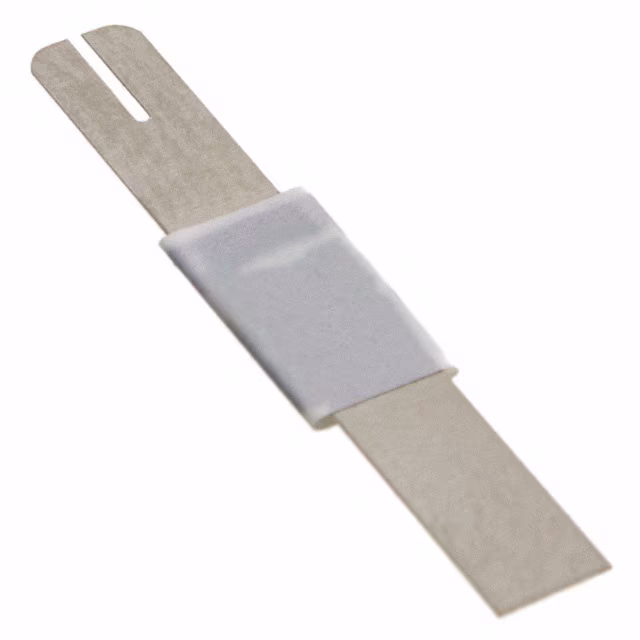

SRP120SFPTC RESET FUSE 15V 1.2A STRAP |
2,513 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 15V | 1.2 A | 2.7 A | 100 A | 5 s | 85 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.827" L x 0.199" W (21.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|

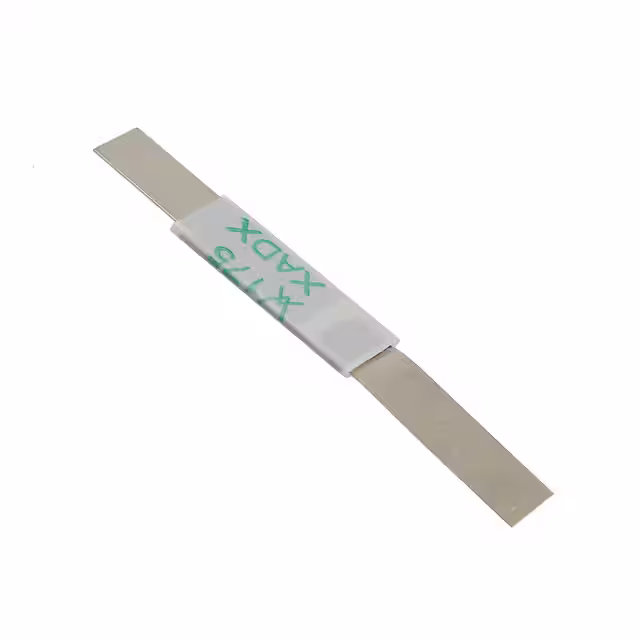

SRP175LFPTC RESET FUSE 15V 1.75A STRAP |
7,434 |
|
Datasheet |
Strap | PolySwitch® | Bulk | Active | Polymeric | 15V | 1.75 A | 3.8 A | 100 A | 5 s | 50 mOhms | 90 mOhms | - | - | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|

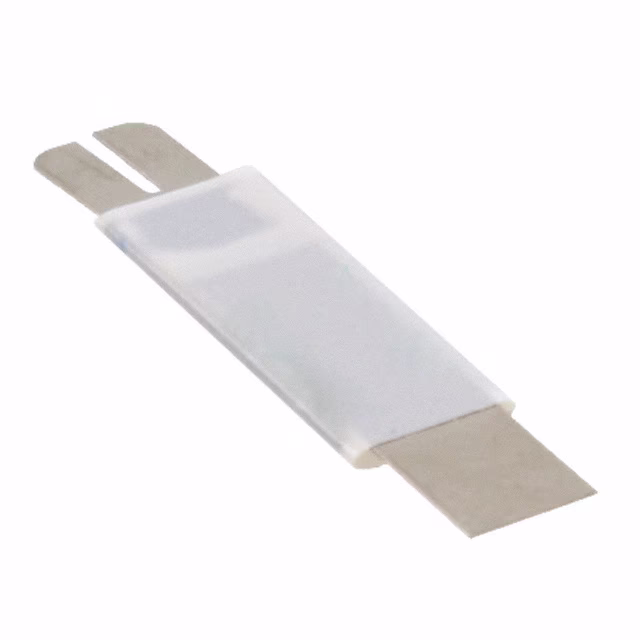

SRP175SFPTC RESET FUSE 15V 1.75A STRAP |
3,630 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 15V | 1.75 A | 3.8 A | 100 A | 5 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|

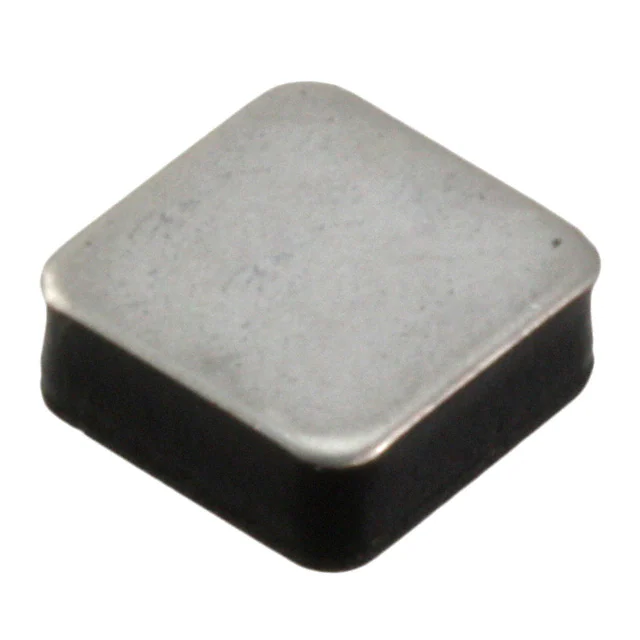

TCF250-100T-RB-B-0.5PTC RESET FUSE 60V 90MA SMD |
9,848 |
|
Datasheet |
Nonstandard SMD | PolySwitch®, TCF250 | Bulk | Active | Polymeric | 60V (250V Int) | 90 mA | 150 mA | 3 A | 200 ms | 15.4 Ohms | 24 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.187" L x 0.187" W (4.75mm x 4.75mm) | - | 0.091" (2.30mm) | - |
|
TRF250-120T-RG-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
4,350 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bulk | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 750 ms | 8.5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
TR600-150QF-EX-B-0.5PTC RESET FUSE RADIAL DISC |
6,209 |
|
Datasheet |
Radial, Disc | PolySwitch®, TR600 | Bag | Active | Polymeric | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.532" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
